E-flite PT-19 450 ARF - Manual (Page 5)

5 E-flite PT-19 ARF Assembly Manual

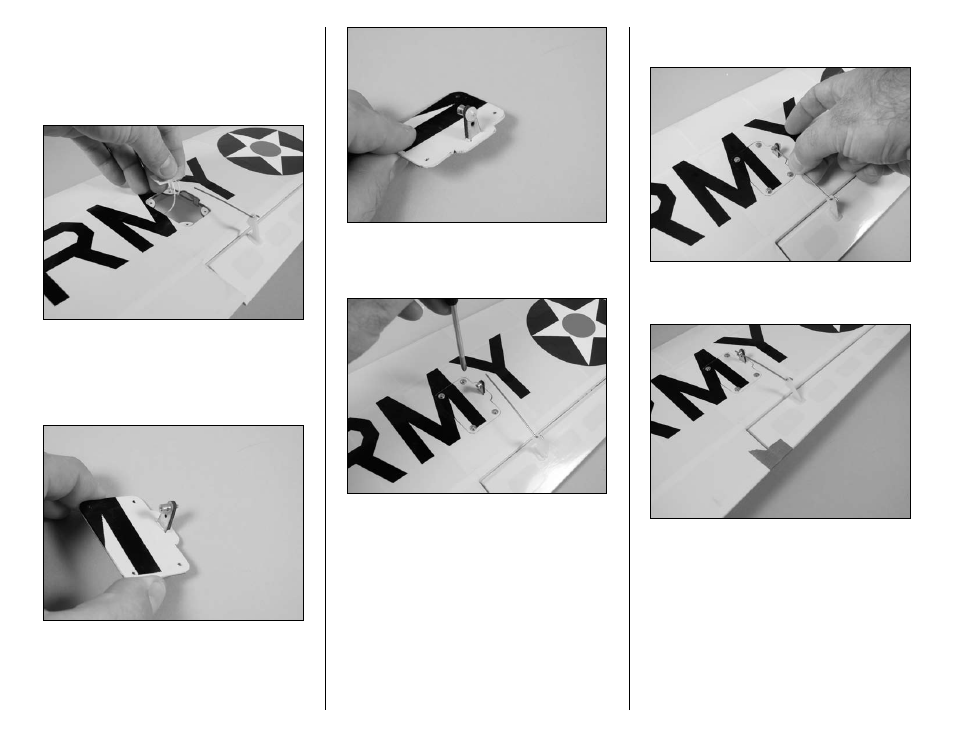

 3. Remove the string from the bottom of the wing
and tape it inside the wing. You may want to
convert you PT-19 to radio control at some time,
and the string will be helpful in pulling the servo
extension from the aileron servo through the wing
when you do.
 4. Locate the aileron cover for the control line
version of your model. Insert the brass pushrod
connector into the outside hole of the control line
aileron servo cover. Use a pushrod connector
backplate and pliers to secure the connector.
 5. Use a #1 Phillips screwdriver and four 2mm x
8mm sheet metal screws to secure the aileron servo
cover to the wing.
 6. Slide the aileron pushrod through the hole in the
brass pushrod connector.
 7. Use a small piece of low-tack tape to hold the
aileron centered for the next step.
