26 E-flite PT-19 ARF Assembly Manual
Important Information About Your Brushless ESC
Make sure your ESC brake is programmed
to Off. Also, be sure to use an ESC with the
proper low-voltage cutoff and have it set
correctly for the batteries you are using.

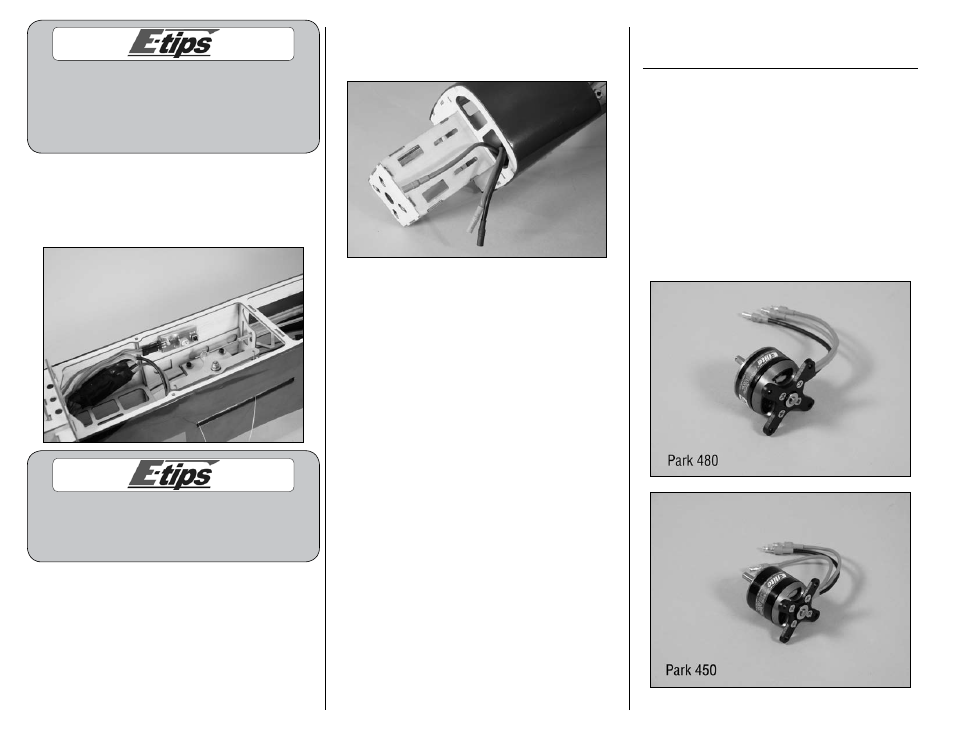

 6. For the control line version, you will need to
install the motor timer. Use hook and loop tape
to secure it inside the fuselage as shown. Make
sure to locate it so it can be adjusted and
activated easily.
If flying control line it is common to program
the ESC brake to On. The PT-19 has been
operated in either configuration successfully.
 7. Route the motor leads from the speed control
forward and through the opening in the fuselage
as shown.
Motor Installation
RC/CL Options
Required Parts
Fuselage assembly
#4 washer (4)
Motor (Park 450 or 480)
4-40 x 1/2-inch socket head screw (4)
Required Tools and Adhesives
Ball wrench or hex wrench: 3/32-inch
Threadlock Phillips screwdriver: #1
 1. Attach the X-mount to your motor using the
hardware provided with the motor and a #1
Phillips screwdriver. Make sure to use threadlock on
the screws to prevent them from vibrating loose.
