13 E-flite PT-19 ARF Assembly Manual
Landing Gear Installation
RC/CL options
Required Parts
Assembled wing
Main landing gear assembly (2)
Landing gear strap (4)
2mm x 8mm sheet metal screw (8)
Required Tools and Adhesives
Phillips screwdriver: #1 Hex wrench: 1.5mm
Hobby knife with #11 blade
A 1.5mm allen wrench has been supplied for you in
case you need to remove the wheels at any given time.

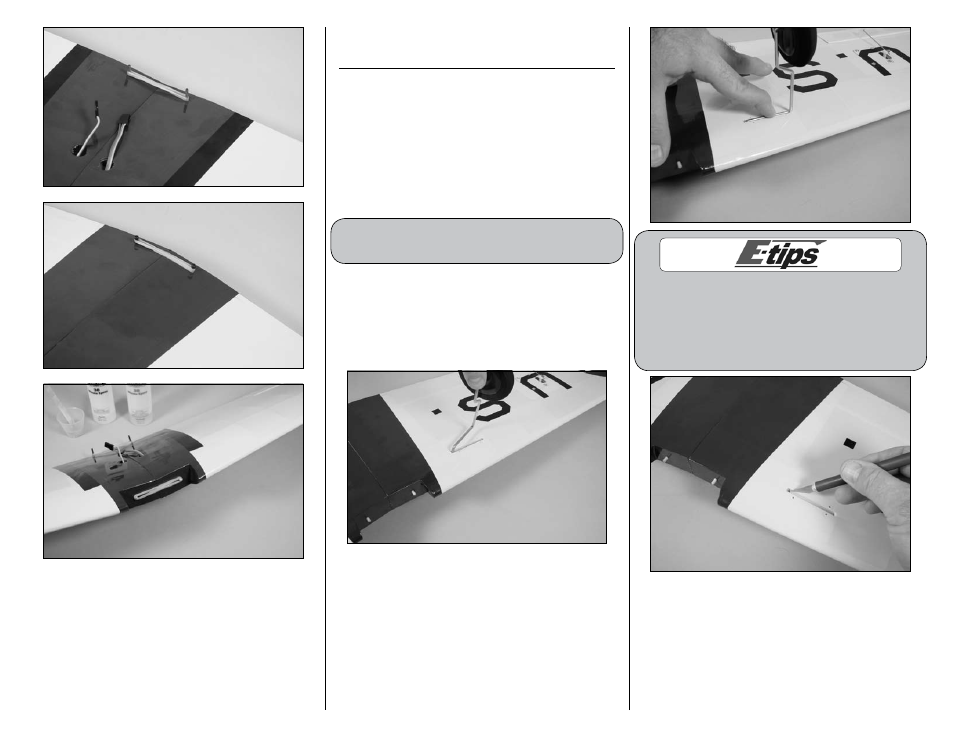

 1. Locate one of the pre-assembled main landing
gear. There is not a right and left, so either one will
work. Insert the landing gear into the pre-drilled
hole in the landing gear block on the bottom of the
wing. Press the gear into the block so it is flush with
the bottom of the wing.
You might find that sometimes the landing gear wire
may not fully seat in the landing gear block. This is
because of the radius on the bend of the wire. Use
a small round file or #11 blade to remove a slight
amount of material from the landing gear block
allowing the wire gear to fully seat in the block.
