INSTALLATION
INSTRUCTIONS
9530 & 9531 Instructions 1-14-13.doc Page 7 of 16

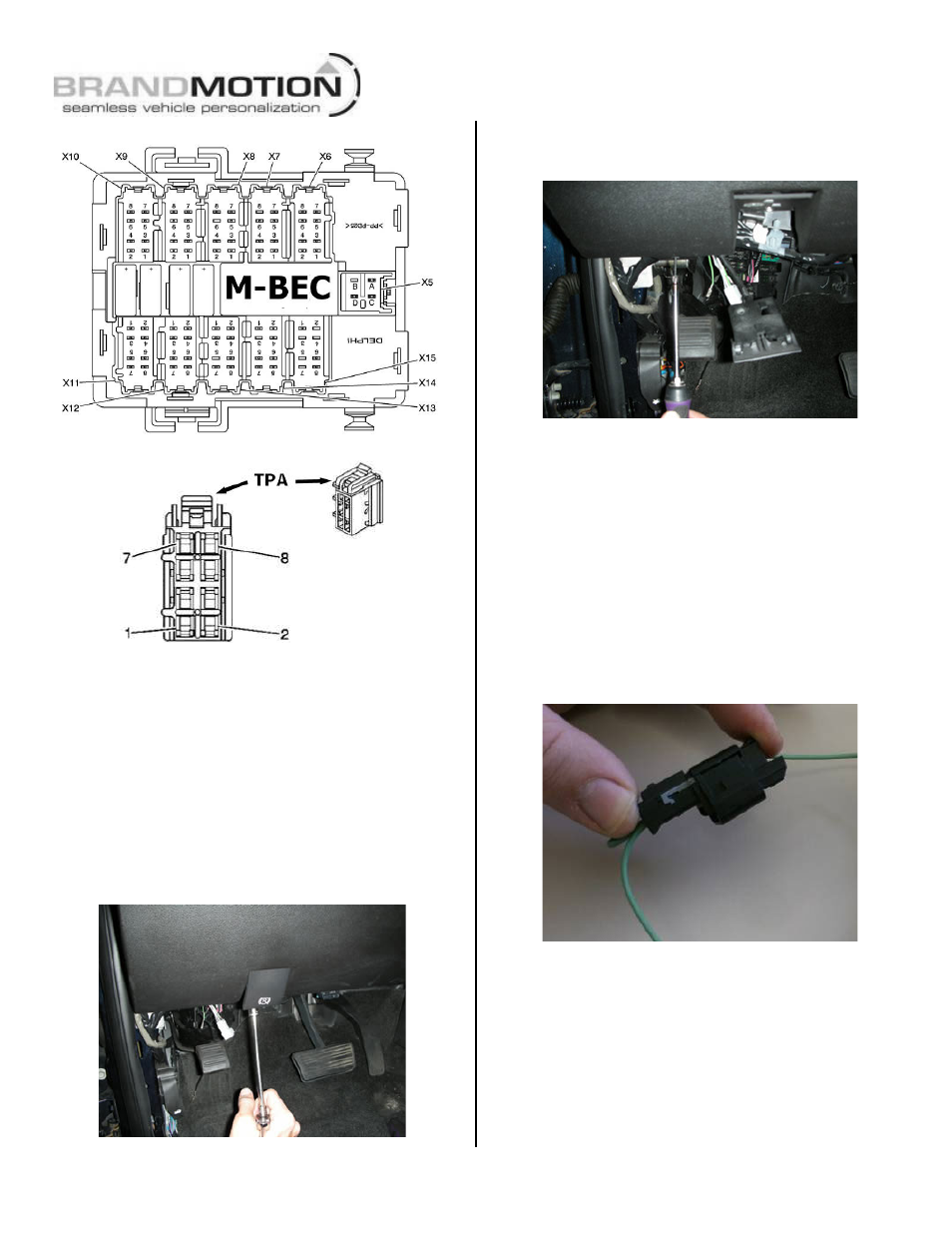

Figure 26
Figure 27
37. If reverse signal is NOT present:
A. Check that the bail that secures the M-BEC
connectors is fully locked in place. Repeat Step
36.
B. If reverse signal is still not present, check the
Fuse Block for any blown fuses (Figure 25).
Replace any blown fuses and repeat Step 36.
C. If reverse signal is still NOT present,
proceed to Step 48.
38. Remove bolt running through the parking brake
lever using a 10mm socket, and remove lever.
(Figure 28)
Figure 28
39. Remove two knee bolster screws using a Phillips
screwdriver and remove knee bolster. (Figure 29)
Figure 29
40. Remove the light gray C11/ X11 Connector or
gray C10/ X10 Connector from the M-BEC
(Figure 26) located in the bolster stud by pulling it
out with your fingers. (Figure 27)
41. Remove TPA from C11/ X11 Connector or C10/ X10
Connector. (Figure 27)
If a dark blue wire does NOT exist in Connector
C11/ X11 Cavity 5 or Connector C10/ X10 Cavity 8:
A. Re-insert TPA and plug C10/ X10 or C11/ X11
connector into M-BEC.
B. Snap supplied Jumper Harness into the black
connector on the supplied Mirror Harness. (Figure
30)
Figure 30
42. If a dark blue wire exists in Connector C11/ X11
Cavity 5 or Connector C10/ X10 Cavity 8:
A. Unlock the black connector of the supplied mirror
Harness by using Delphi Terminal Tool 12094429
or a small flat blade watch repair screw driver to
slide the gray TPA device over enough to
accommodate the blue wire. (Figure 31)
