INSTALLATION
INSTRUCTIONS
9530 & 9531 Instructions 1-14-13.doc Page 13 of 16

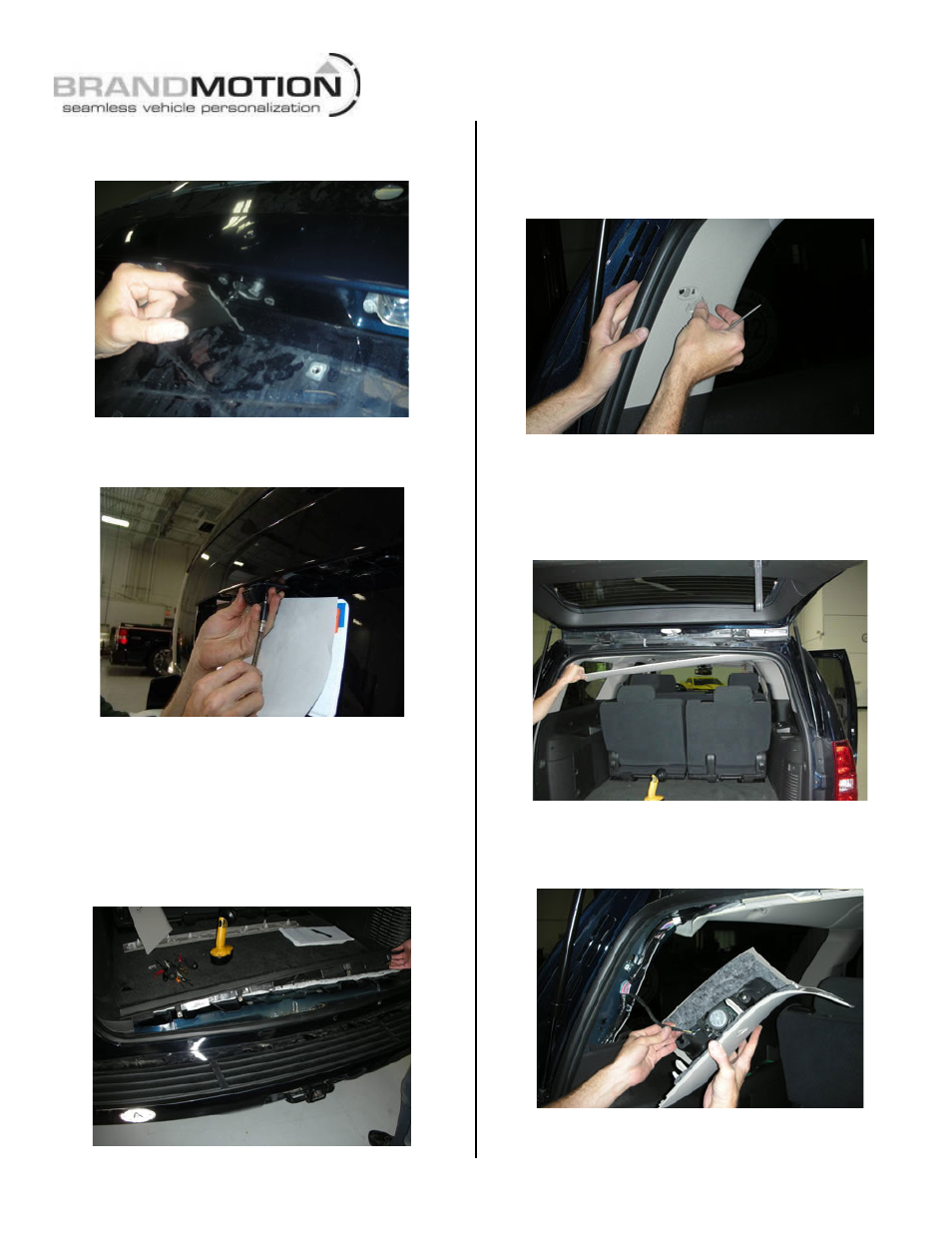

70. Insert supplied Rubber Well Nuts into the two 5/16in
holes in the appliqué. (Figure 59)
Figure 59
71. Bolt the camera mount to the appliqué using the two
supplied Bolts and a Phillips screwdriver. (Figure 60)
Figure 60
Install Chassis Harness
72. Remove the liftgate sill plate by lifting at one end
and working your way to the other with your hands
to release the mounting clips. (Figure 61)
Figure 61
73. Remove bolt cover on driver’s side D-pillar using a
pick. Insert the pick into the gap between the bolt
cover and D-pillar cover. Gently pry the bolt cover
away from the D-pillar cover. (Figure 62)
Figure 62
74. Remove D-pillar cover screw with a Phillips
screwdriver.
75. Remove headliner garnish by working your way from
one end to the other and popping out the mounting
pins with hands. (Figure 63)
Figure 63
76. Remove the D-pillar panel and unhook the speaker
wire by pulling the connectors apart with your
fingers. (Figure 64)
Figure 64
77. Remove the pushpin in the left side edge of the
headliner. (Figure 65)
