Brandmotion 1013-9531-V2 - Manual (Page 10)

INSTALLATION
INSTRUCTIONS
9530 & 9531 Instructions 1-14-13.doc Page 10 of 16

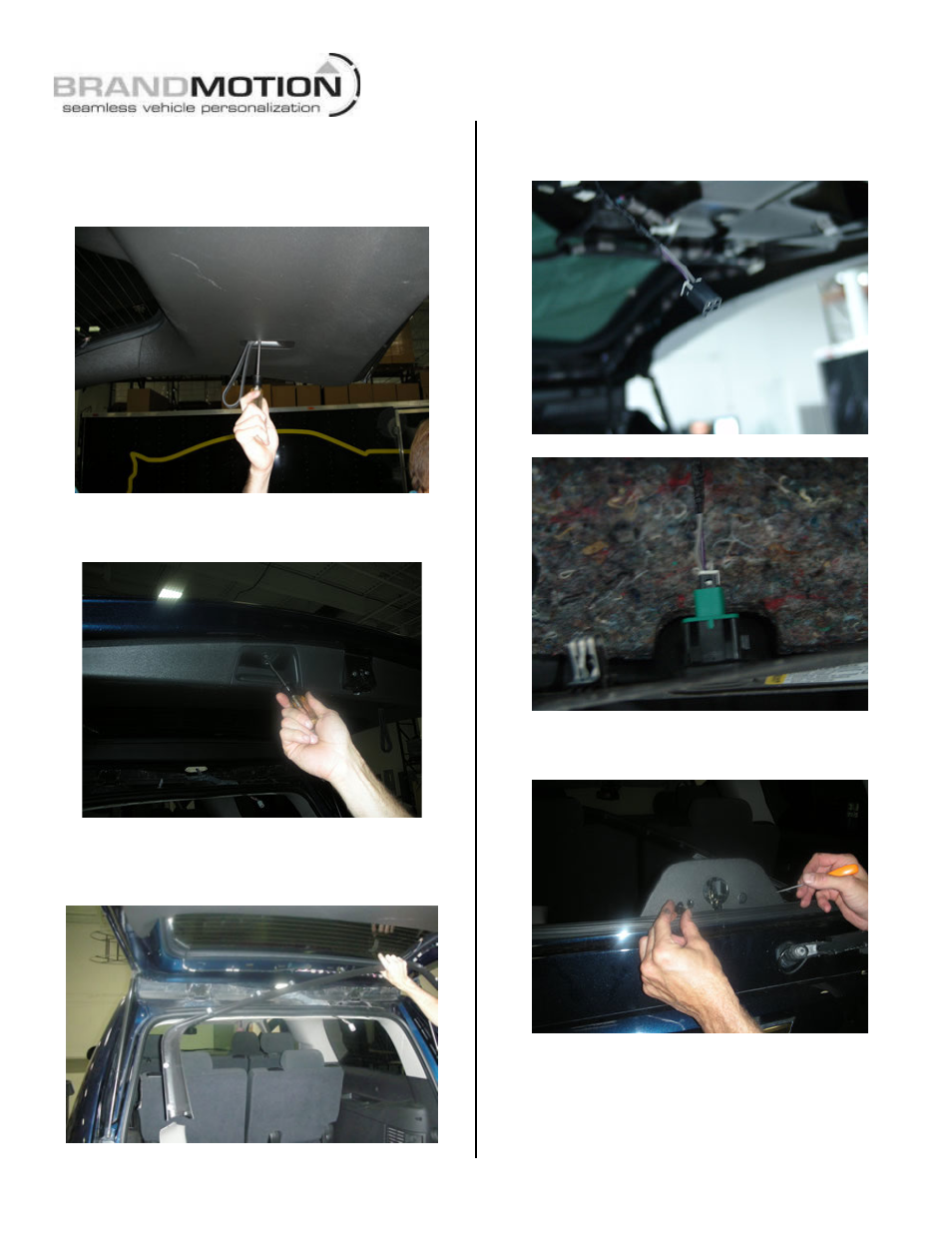

Install Camera
50. Open liftgate and remove pull strap from inside of
liftgate using a T30 Torx driver. (Figure 41)
Figure 41
51. Remove grab cup on bottom of liftgate using a T30
Torx driver. (Figure 42)
Figure 42
52. Remove upper liftgate trim by working your way
from one end to the other and popping out the
mounting pins with your hands. (Figure 43)
Figure 43
53. Remove the liftgate button connector from the
upper liftgate trim panel. (Figures 44 & 45)
Figure 44
Figure 45
54. Remove pushpins from the rear window latch trim
using a pick. (Figure 46)
Figure 46
55. Remove the lower liftgate trim by working your way
from one end to the other and popping out the
mounting pins with your hands. (Figure 47)
