INSTALLATION
INSTRUCTIONS
9530 & 9531 Instructions 1-14-13.doc Page 12 of 16

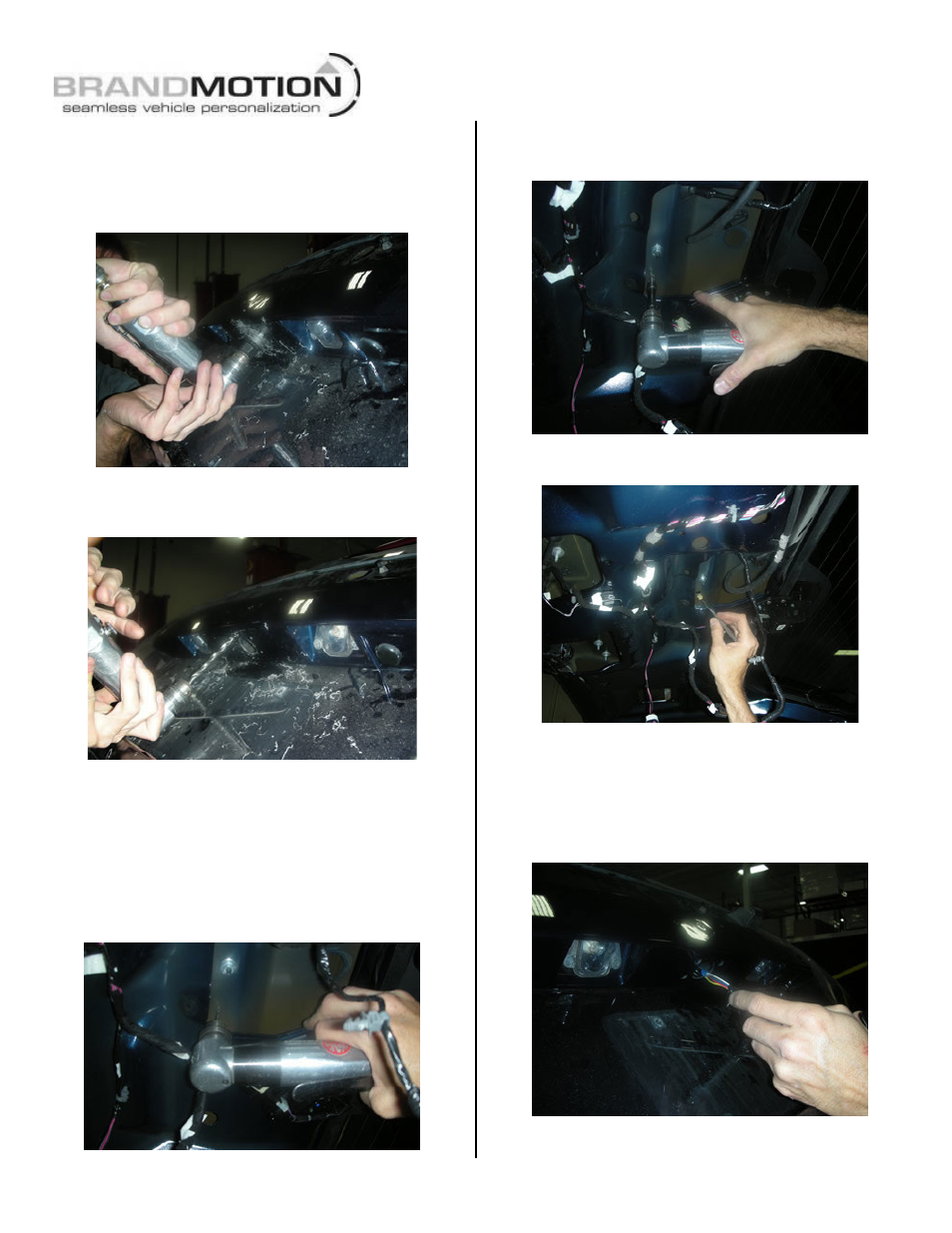

61. Drill three 1/8in pilot holes in the appliqué where the
transfer marks were made.
62. Use a 3/4in drill bit, center hole saw, or sheet metal
cutter to cut the hole in the center of the Template.
(Figure 53)
Figure 53
63. Use a 5/16in drill bit to drill the remaining two holes
on the Template. (Figure 54)
Figure 54
64. Use a deburring tool to clean the holes.
65. Affix the Camera Harness Pass Through Template to
the inside of the liftgate using masking tape and use
a transfer punch to transfer the center of the hole to
the sheet metal and then remove the Template.
Note: See Template for placement instructions.
66. Drill a 1/8in pilot hole through the sheet metal
where the transfer mark was made. (Figure 55)
Figure 55
67. Use a 3/4in center hole saw or sheet metal cutter to
cut an opening in the liftgate. (Figure 56)
Figure 56
68. Apply supplied ZTech to the 3/4in hole. (Figure 57)
Figure 57
69. Route supplied Camera Harness through the 1-
3/16in hole in the appliqué then through the 1/2in
hole in the sheet metal. RECOMMENDED: Use a
small rubber grommet or dab of silicone caulk to
protect Camera Harness from sharp metal edges
(Figure 58)
Figure 58
