9530 & 9531 Instructions 1-14-13.doc Page 11 of 16

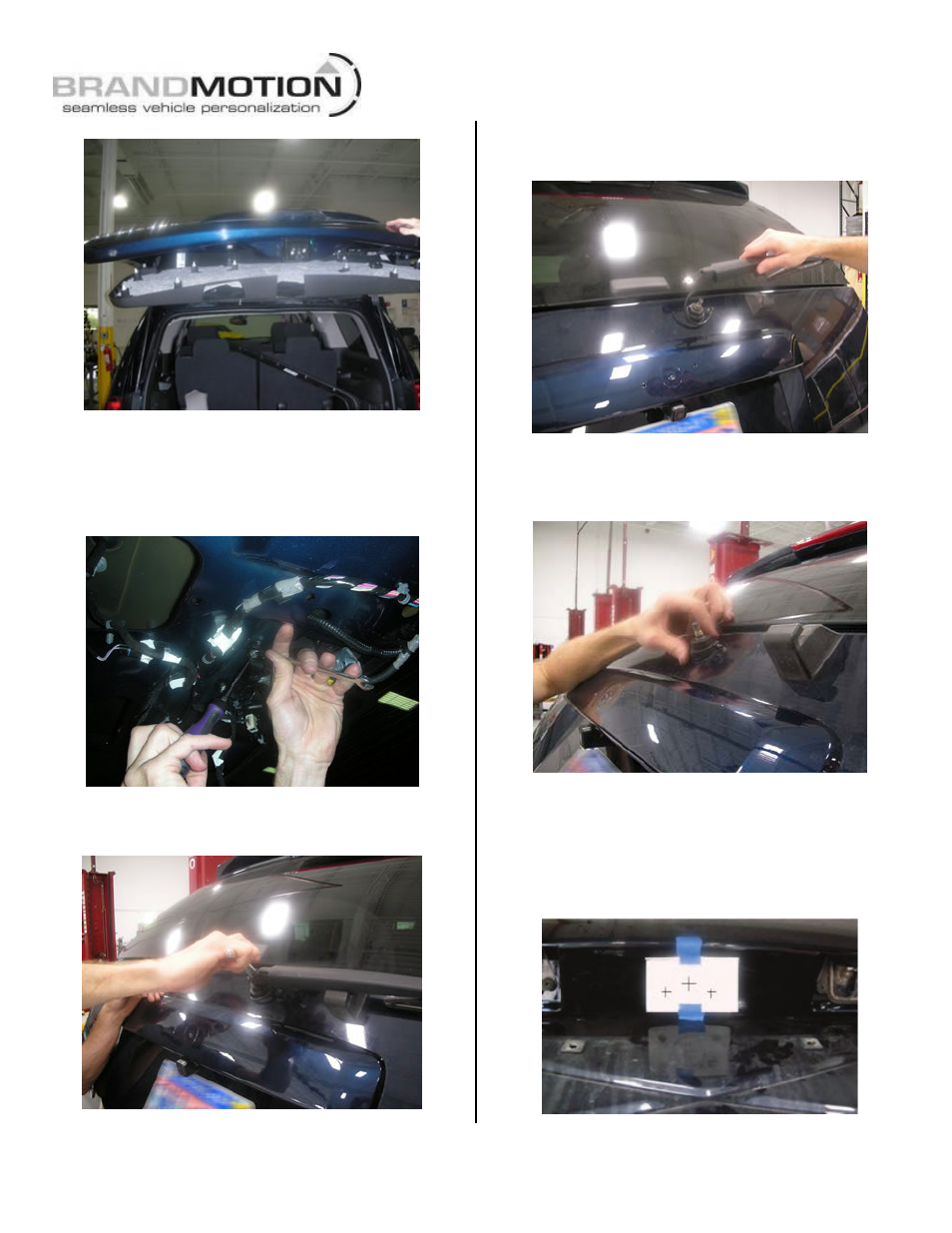

Figure 47
56. Remove the two nuts fastening the rear wiper motor
to the liftgate using a 10mm open-end wrench and
flat head screwdriver. Disconnect wiper motor wiring
harness by pulling the connector out of the motor
with your fingers. (Figure 48)
Figure 48
57. Close the liftgate and remove the wiper nut using a
10mm socket. (Figure 49)
Figure 49
58. Remove the wiper and disconnect the washer fluid
line from the vehicle. (Figure 50)
Figure 50
59. Remove wiper motor exterior nut using a 28mm
socket and then remove wiper motor from inside the
liftgate. (Figure 51)
Figure 51
60. Affix the Camera Mount Template to the center
square depression on the vehicle’s appliqué using
masking tape. Use a transfer punch to transfer the
center of the holes to the appliqué and remove the
template. Note: The corners of the Template align
with the corners of the depression. (Figure 52)
Figure 52
