INSTALLATION
INSTRUCTIONS
9530 & 9531 Instructions 1-14-13.doc Page 3 of 16

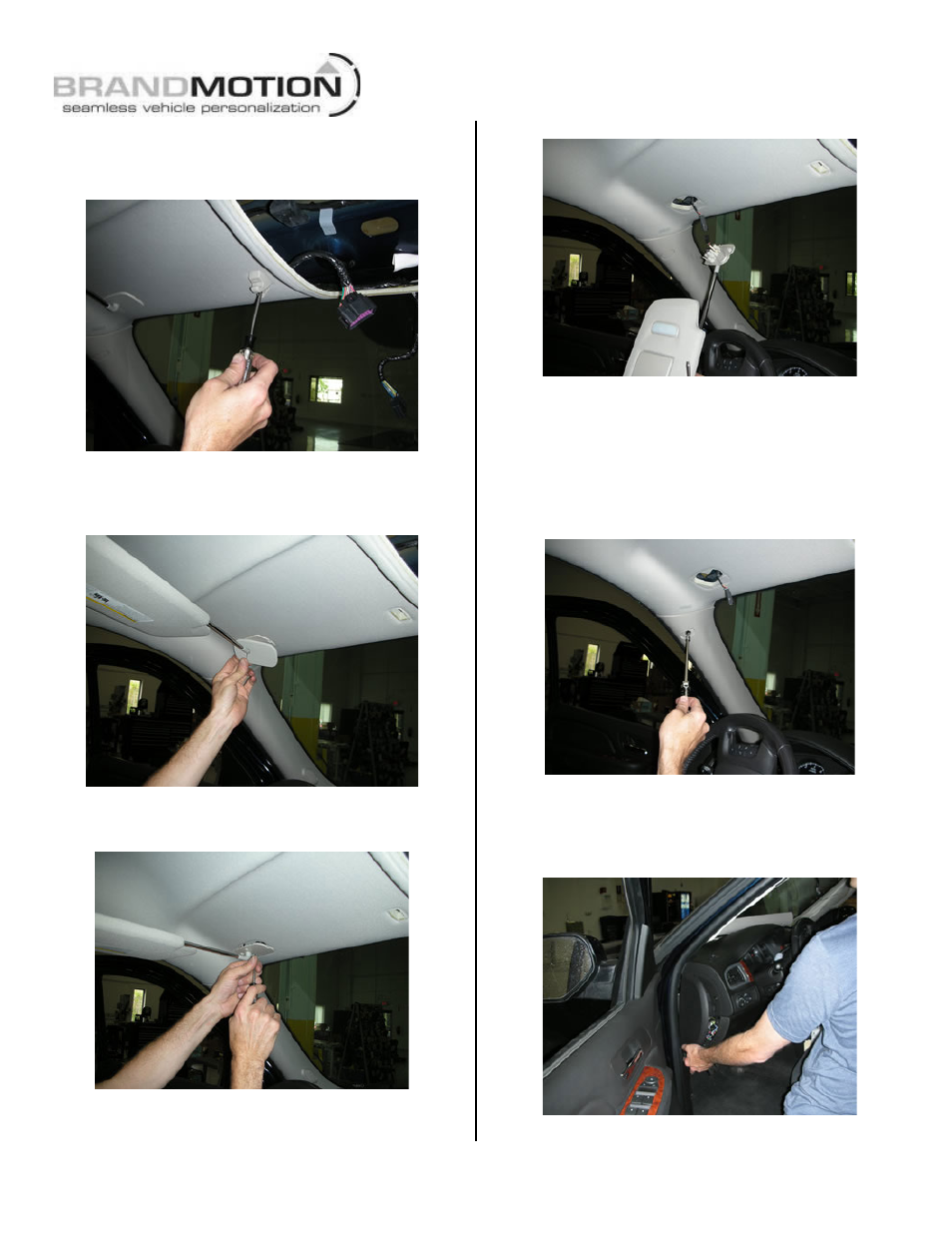

12. Pop open the driver’s side sun visor anchor bolt
cover with a pick. Then remove the sun visor anchor
with a T15 Torx driver. (Figure 7)
Figure 7
13. Remove the driver’s side sun visor mounting face
cover by pulling it rearward with your fingers.
(Figure 8)
Figure 8
14. Remove the driver’s side sun visor using a T15 Torx
driver. (Figure 9)
Figure 9
15. Disconnect the sun visor wiring harness by pulling
the connector apart with your fingers. (Figure 10)
Figure 10
16. Remove the bolt cover on the driver’s side A-Pillar
using a pick. Insert the pick into the gap between
the bolt cover and A-Pillar cover. Gently pry the bolt
cover away from the A-Pillar cover while being
careful not to damage the trim.
17. Remove driver’s side A-Pillar bolt using a 7mm
socket and then remove A-Pillar cover. (Figure 11)
Figure 11
18. Remove the driver’s side end of dash cover by
gently prying it away from the dashboard using a
pushpin removal tool. Be careful not to damage the
trim. (Figure 12)
Figure 12
