Chapter 4 Component Replacement

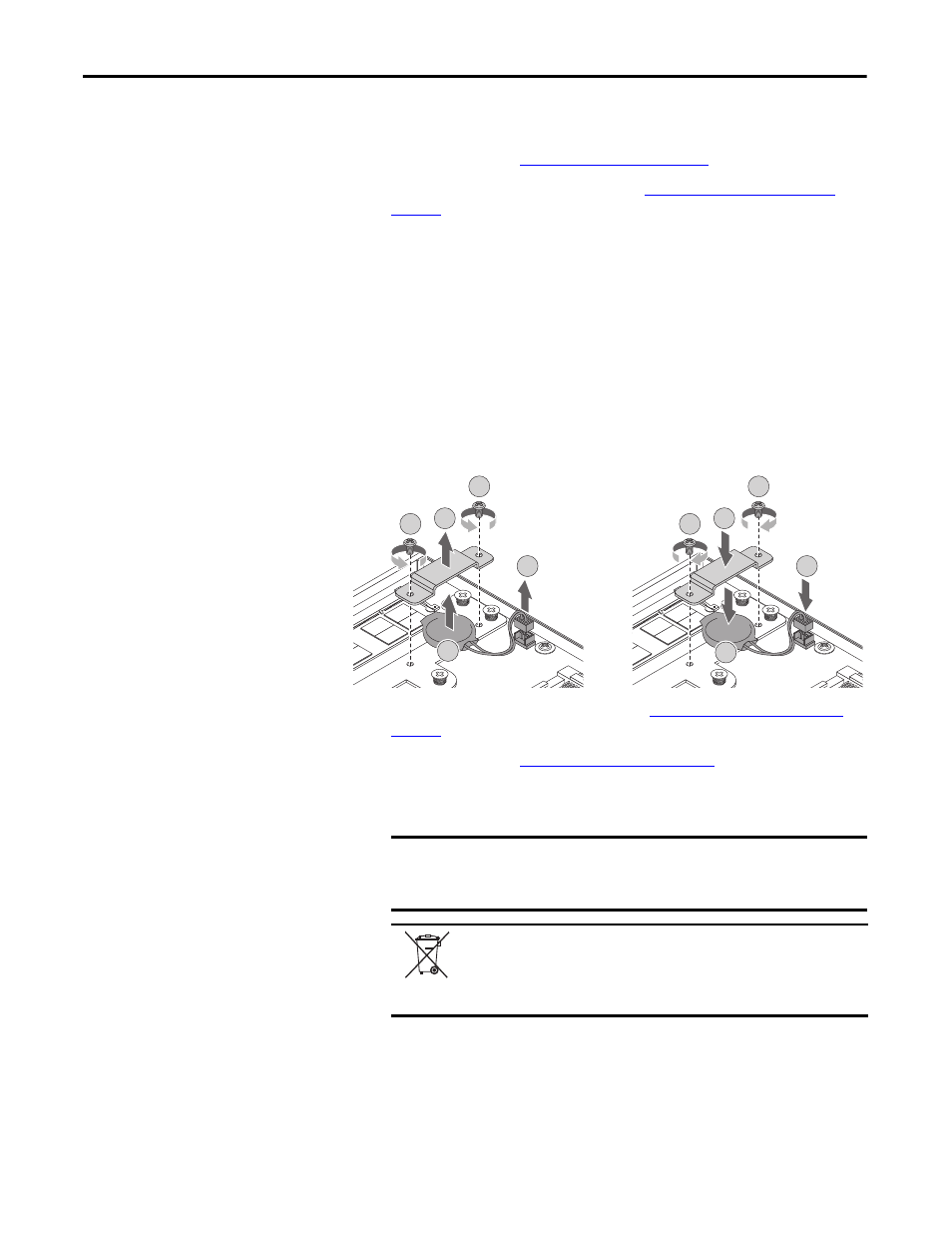

Follow these steps to replace the RTC battery.
1. Follow the steps for Pre-configuration on page 30 .
2. Remove the bottom plate as detailed in Remove the Bottom Plate on
page 31 .
3. Remove the two screws from the battery bracket (A).
4. Remove the battery bracket (B).
5. Disconnect the battery cable from the motherboard (C).
6. Remove the existing battery (D).
7. Place the new battery on the motherboard (E).
8. Place the bracket over the new battery (F).
9. Secure the battery bracket with the two screws (G).
10. Connect the battery cable to the motherboard (H).
11. Reinstall the bottom plate as detailed in Reinstall the Bottom Plate on
page 32 .
12. Follow the steps for Post-configuration on page 31 .
13. During POST, press F2 on an attached keyboard to enter BIOS setup and
reconfigure settings.
IMPORTANT Replacing the battery results in all BIOS settings returning to their
default settings. BIOS settings other than default must be reconfigured
after replacing the battery.
This computer contains a sealed lithium battery that may need to be
replaced during the life of the computer.
At the end of its life, the battery contained in this computer should be
collected separately from any unsorted municipal waste.
A
B
A
C
D
G
F
G
H
E
