Mount the Computer on a Wall
You can mount the computer on a wall by using a mounting bracket. See Figure 1
on page 20 for the wall mount bracket dimensions.
Follow these steps to mount the computer on a wall.
1. Drill and tap four M4 holes in the wall (5 mm min) that correspond to the
holes in the mounting bracket.
2. Attach the mounting bracket to the bottom or back of the computer (A).
3. Secure the mounting bracket by using four of the provided M4 x 8 mm
panhead screws (B).
Torque the screws to 0.686 N•m (6.072 lb•in).
4. Position the computer against the wall, aligning the holes in the mounting
bracket with the holes in the wall (C).
5. Insert the remaining M4 panhead screws through the mounting bracket
into the wall and tighten (D).
TIP Support the computer with a shelf or other means to make installation
at the appropriate height easier.

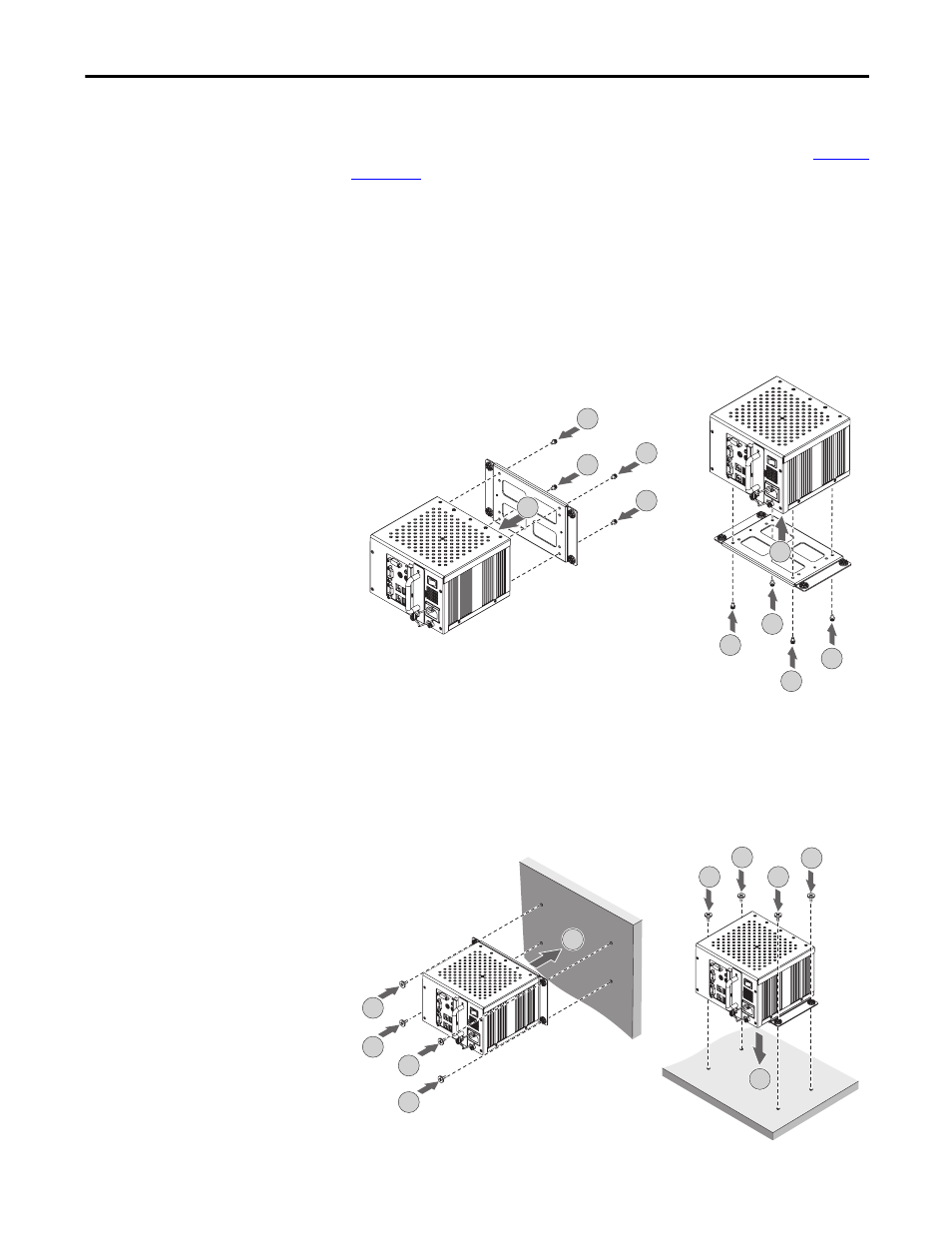

Mounting Bracket on the Back
Mounting Bracket on the Bottom
A
B
B
B
B
A
B
B
B
B
Mounting Bracket on the Back
Mounting Bracket on the Bottom
C
D
D
D
D
C
D
D
D
D
