18 Rockwell Automation Publication 6155R-UM002E-EN-P - February 2014
Chapter 2 Installation
Mount the Computer on a DIN Rail
You can mount the computer on a DIN rail by using a DIN-rail bracket that
mounts to the back of the computer. See
Figure 1 on page 20 for the DIN-rail
bracket dimensions.

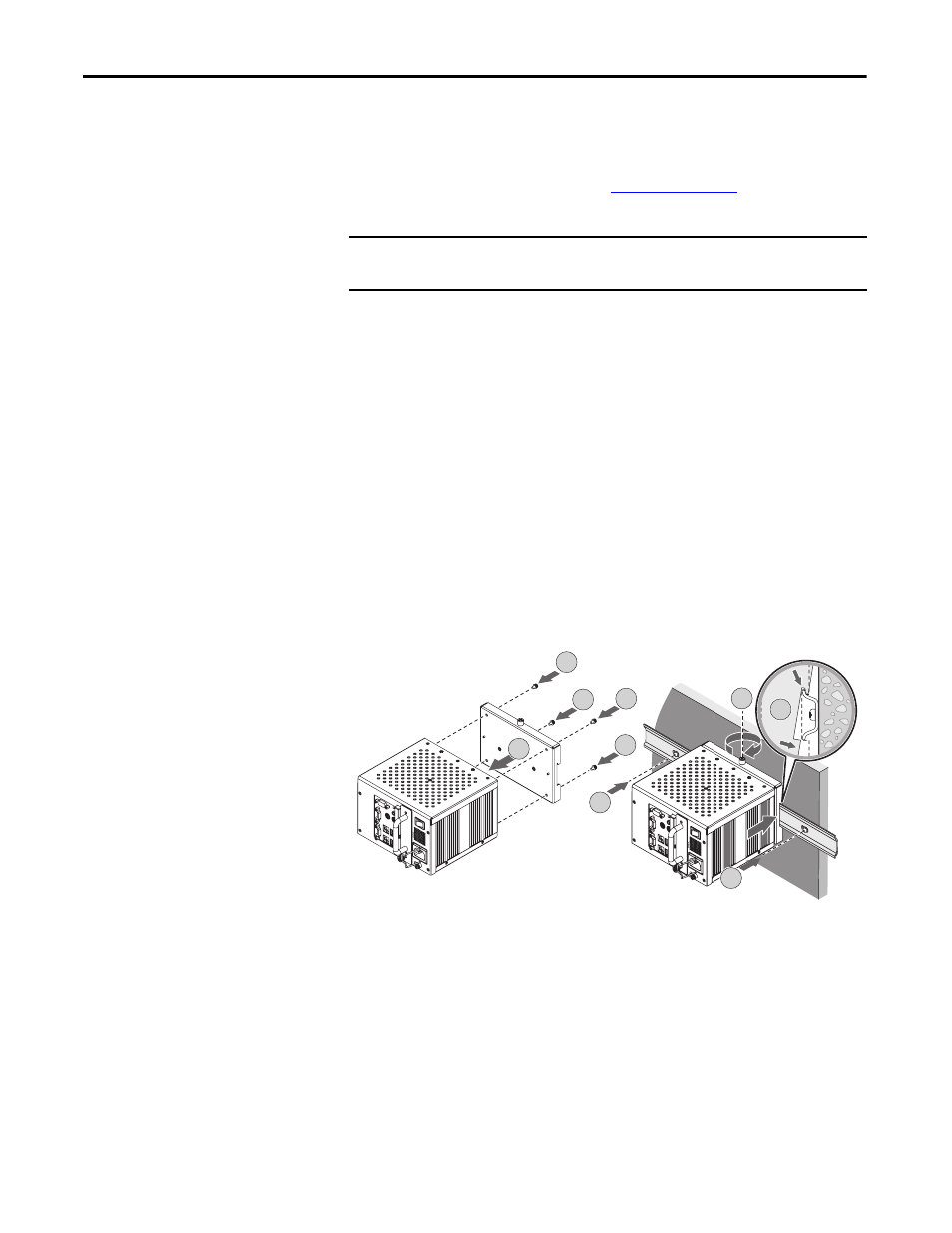

Follow these steps to mount the computer on a DIN rail.
1. Attach the DIN-rail bracket to back of the computer (A).
2. Secure the DIN-rail bracket by using four M4 x 5 mm panhead screws (B).
Torque the screws to 0.686 N•m (6.072 lb•in).
3. Attach and secure the DIN rail to the installation surface (C).
4. Mount the computer on the DIN rail by inserting the upper lip of the
DIN-rail bracket on the top edge of the DIN rail, then pressing the
computer firmly against the lower edge of the rail (D).
5. Secure by tightening the fastener on the DIN-rail bracket (E).
Torque to 1.18 N•m (10.42 lb•in).
IMPORTANT Do not mount the computer on a DIN rail in high shock and vibration
environments.
TIP If using an existing DIN rail, skip step 3.
C
B
B B
B
A
C
E
D
