Rockwell Automation Publication 6155R-UM002E-EN-P - February 2014 19
Installation Chapter 2
VESA Mount the Computer
You can mount the computer to any Allen-Bradley industrial display or other
surface by using the provided VESA mounting bracket. This bracket is compliant
with the VESA 100 x 100 mm mounting hole pattern. See
Figure 1 on page 20
for the VESA mounting bracket dimensions.
Follow these steps to VESA mount the computer.

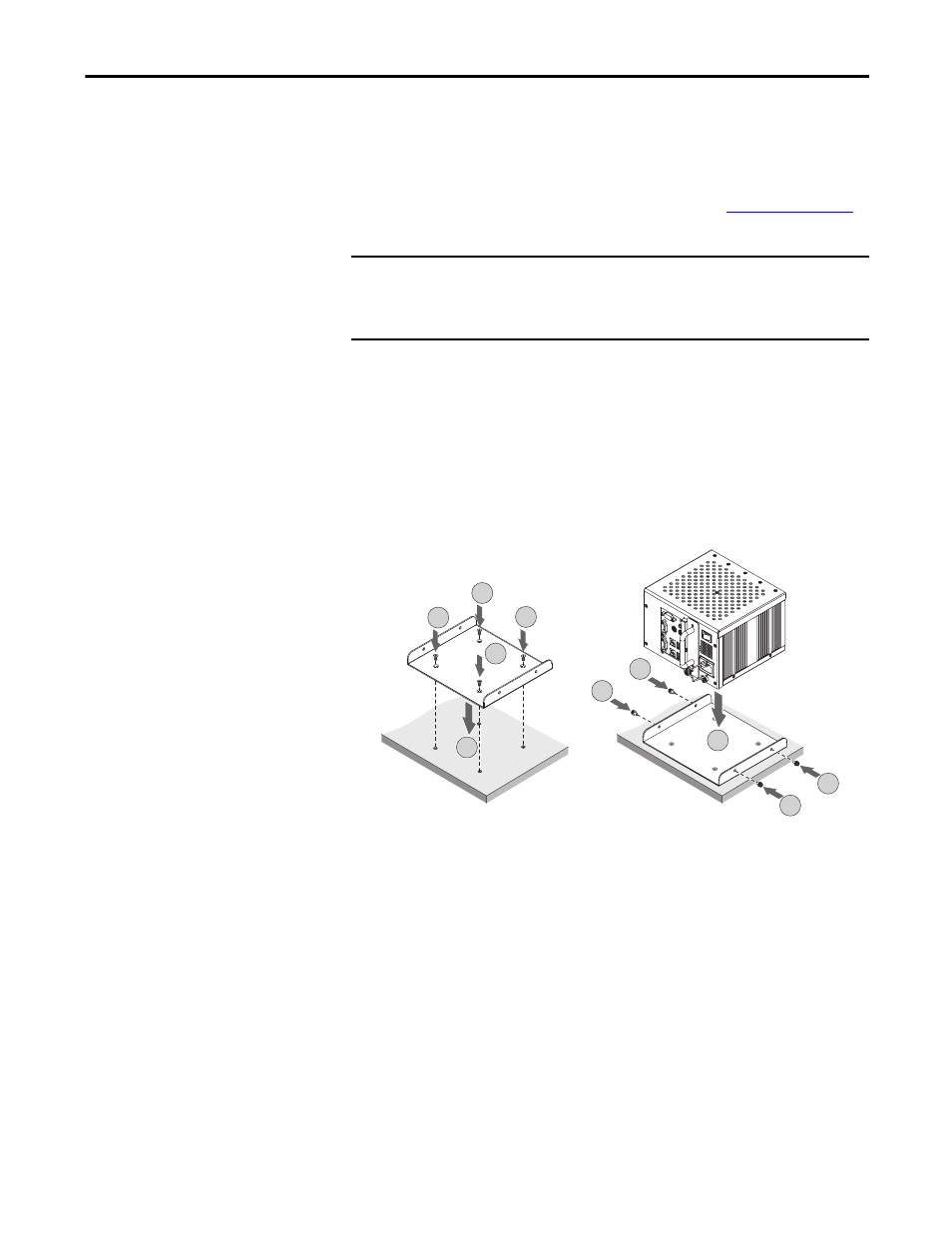

1. Attach the VESA mounting bracket to the installation surface (A).
2. Secure the VESA mounting bracket with four M4 x 8 flathead screws (B).
3. Place the computer on the VESA mounting bracket (C).
4. Secure the computer to the bracket with four M4 x 8 mm screws (D).
Torque the screws to 0.686 N•m (6.072 lb•in).
IMPORTANT If VESA mounting to the back of the display:
• The I/O panel of the computer must be facing down
• The display must be mounted vertically and not at an angle
A
B
B
B
B
D
D
C
D
D
