3Ć19

9.40

(239)

7.55

(192)

SIDE VIEW

FRONT VIEW

DIMENSIONS IN INCHES (MM)

MOUNTING DETAILS

5.50

(140)

TOP VIEW

5.50

(140)
5.00

(127)

.25 (6)

1.00 (25)

9.00

(229)

7.00

(178)

.22 x .36

SLOT

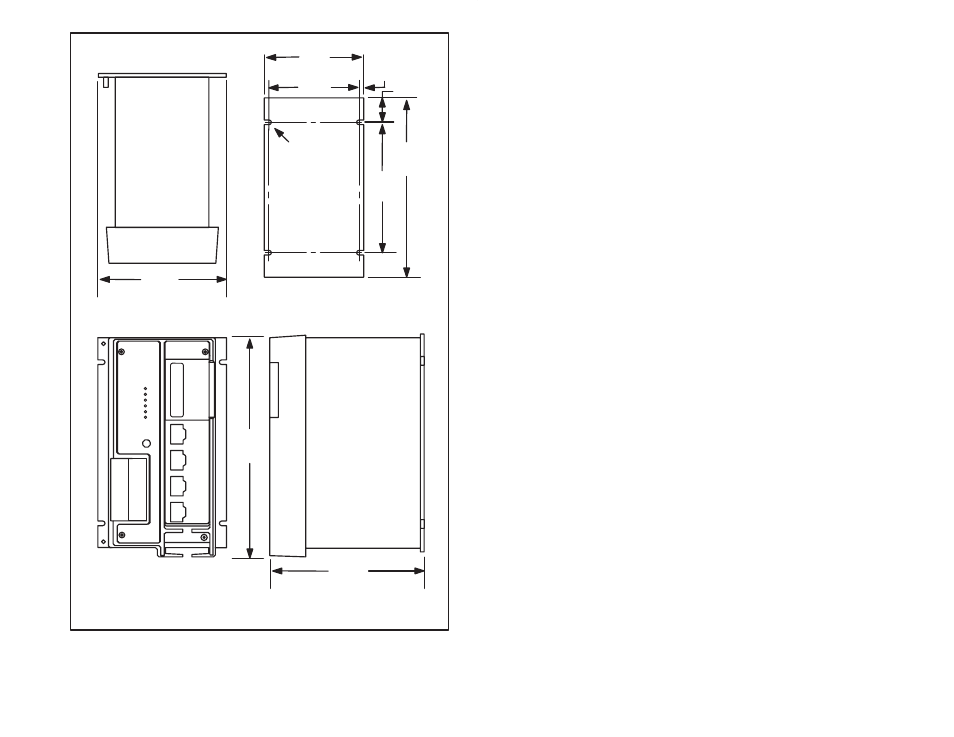

Figure 3.17 Ć Mounting Dimensions
