Install InView Marquee Message Display 1-23
Mount the 2706-P22R
Display The following provides panel cutout dimensions and overall
dimensions for the InView P22R panel mount display.
The InView P22R mounts in a custom panel or enclosure. When it is
properly installed, the faceplate provides a NEMA Type 12, 13, and
4X(indoor) rating.
To mount the display:
1. Cut and drill the appropriate mounting holes in the enclosure or
panel.
Refer to Panel Cutout Dimensions for 2706-P22R Display on
page 1-23
2. Remove the six mounting nuts and washers from the hardware
bag provided with the display.
3. Position the InView Display in the panel or enclosure mounting
hole.
4. Install washers and nuts and alternately tighten the nuts to a
torque of 0.904 Nm (8 lb-in).

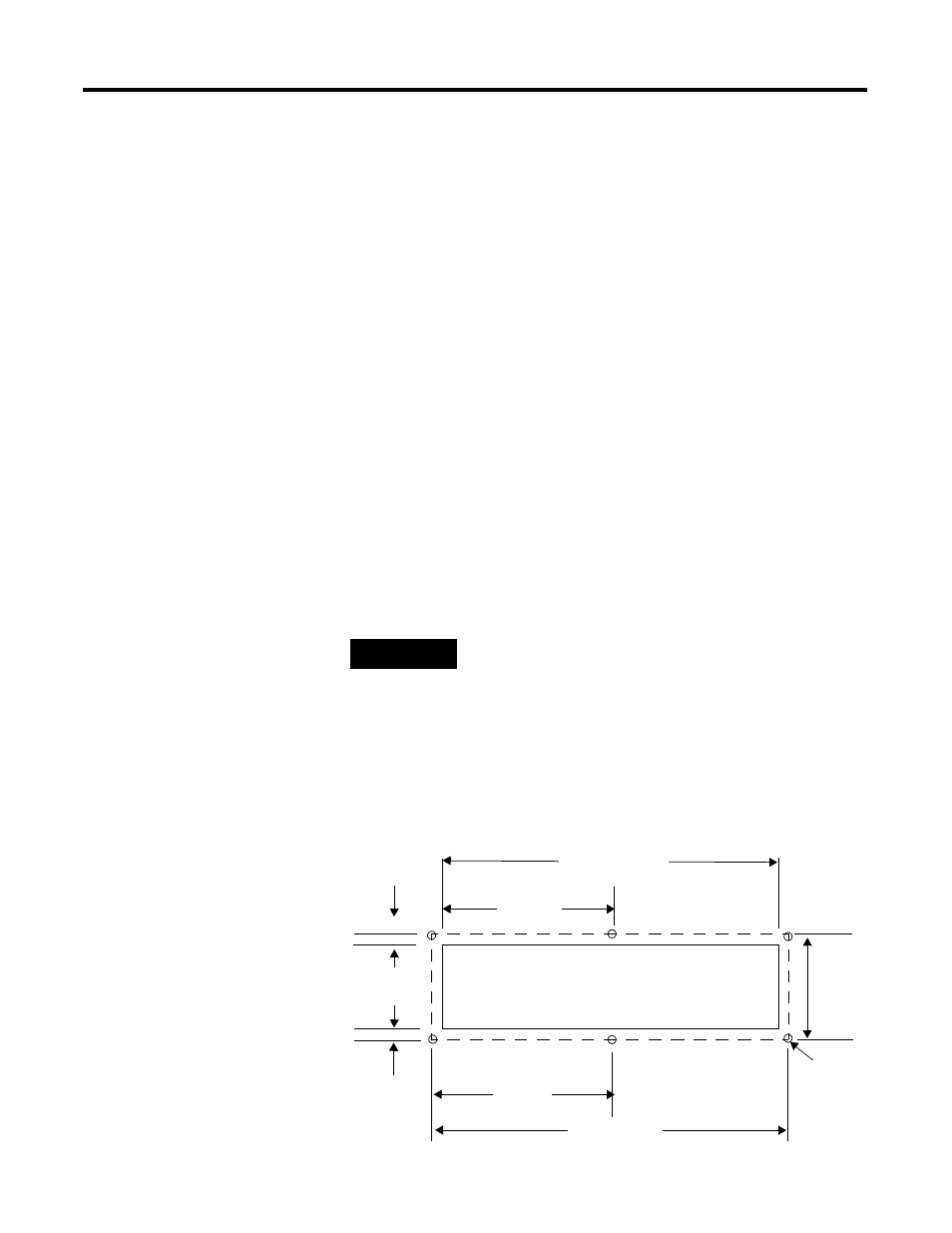

Panel Cutout Dimensions for 2706-P22R Display
TIP
InView P22R mounting and panel cutout are
identical to DL40 Plus, DL40, DL20 and DL10 two
line displays.
Cutout 345.9 (13.62)
Cutout
173.0 (6.81)
98.4
(3.88)
352.3 (13.87)
Cutout
88.9
(3.50)
176.1 (6.94)
4.8 (0.19)
4.8 (0.19)
6.4 (0.25)
Diameter
Hole
6 places
2706-P22R Display
All dimensions are in millimeters (inches)
