Install InView Marquee Message Display 1-13
Mount the 2706-P72 and
2706-P74 series NEMA 4
and 4x models To mount the sign:

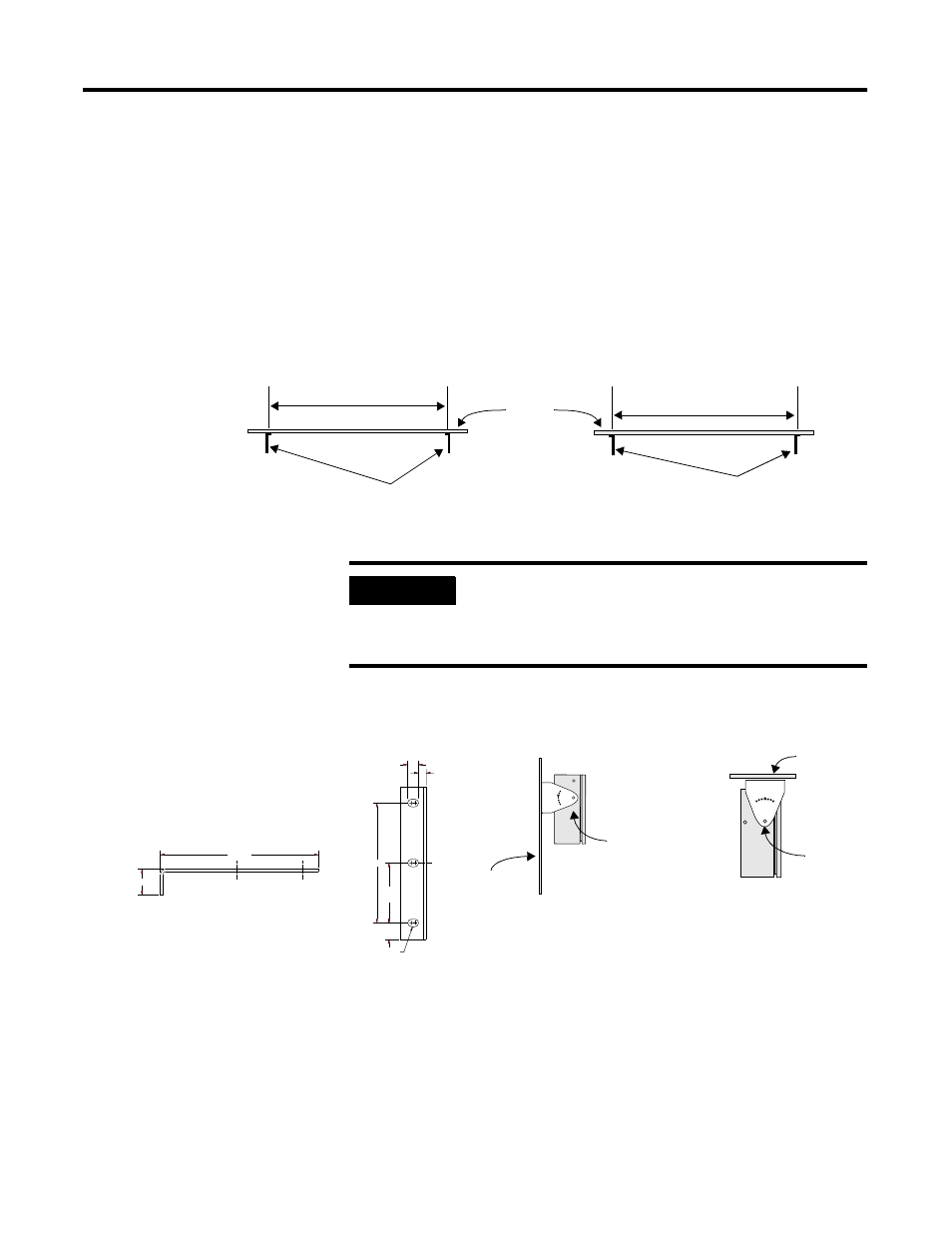

1. Attach the two sign brackets to a wall, ceiling, or other surface.
Be sure to place the brackets so the bracket flanges face
appropriately as shown below. Mount the brackets the following
distance apart (measured from the center of the mounting holes
in each bracket):
2. Mount the sign on the sign brackets using the two large hex
bolts supplied.
3. Tilt the sign to select a viewing angle.
4. To hold the sign in place, insert a Phillips screw (supplied)
through one of the small holes on each bracket into the screw
hole in the sign case.
Wall
or
ceiling
Sign brackets, facing
in behind the sign
Sign brackets, facing
out from the sign
Mounted so flanges are hidden behind the sign
2706-P72CNx: 104.8 cm (41.25 in.)
2706-P74CNx: 165.8 cm (65.25 in.)
Mounted so flanges show on the sides of the sign
2706-P72CNx: 110.5 cm (43.5 in.)
2706-P74CNx: 171.4 cm (67.5 in.)
IMPORTANT
Do not install the sign directly to drywall or
plasterboard. The sign must be fastened to a surface
capable of supporting at least four times the weight
of the sign.
184.15
(7.25 REF)
30.48 (1.20)
(0.50 REF)
(0.36 TYP)
139.70 (5.50)
69.85
(2.75)
19.05
(0.75)
8.74 x 12.70 (0.344 x 0.50)
OBRound Slot (3 Places)
End view,
wall-mounted
Hex bolt
Wall
End view,
ceiling-mounted
Hex bolt
Ceiling
