Publication 2706-UM016D-EN-P - March 2006
Install InView Marquee Message Display 1-11
Follow the notes in Step 4 of the Ceiling Mount instructions on
page 1-9.
Back-to-back Mount
To mount the signs back-to-back:
1. Attach a mounting bracket on each end of the signs and replace
the end caps.
Follow Steps 1 to 5 of the Wall Mount instructions.
2. However, replace only the bottom three screws for each end cap
and torque the screws to 2.7 Nm (24 lb-in).
Do this for each end of both signs.
3. Attach ceiling mounting brackets to all the end caps and torque
the screws to 2.7 Nm (24 lb-in).
See Step 2 of the Ceiling Mount instructions.
TIP
Remove only one end cap at a time for each sign.
TIP
Do NOT fasten the top screws to the end caps. The
top screws are used to fasten the ceiling mounting
brackets to the end caps in the next step.

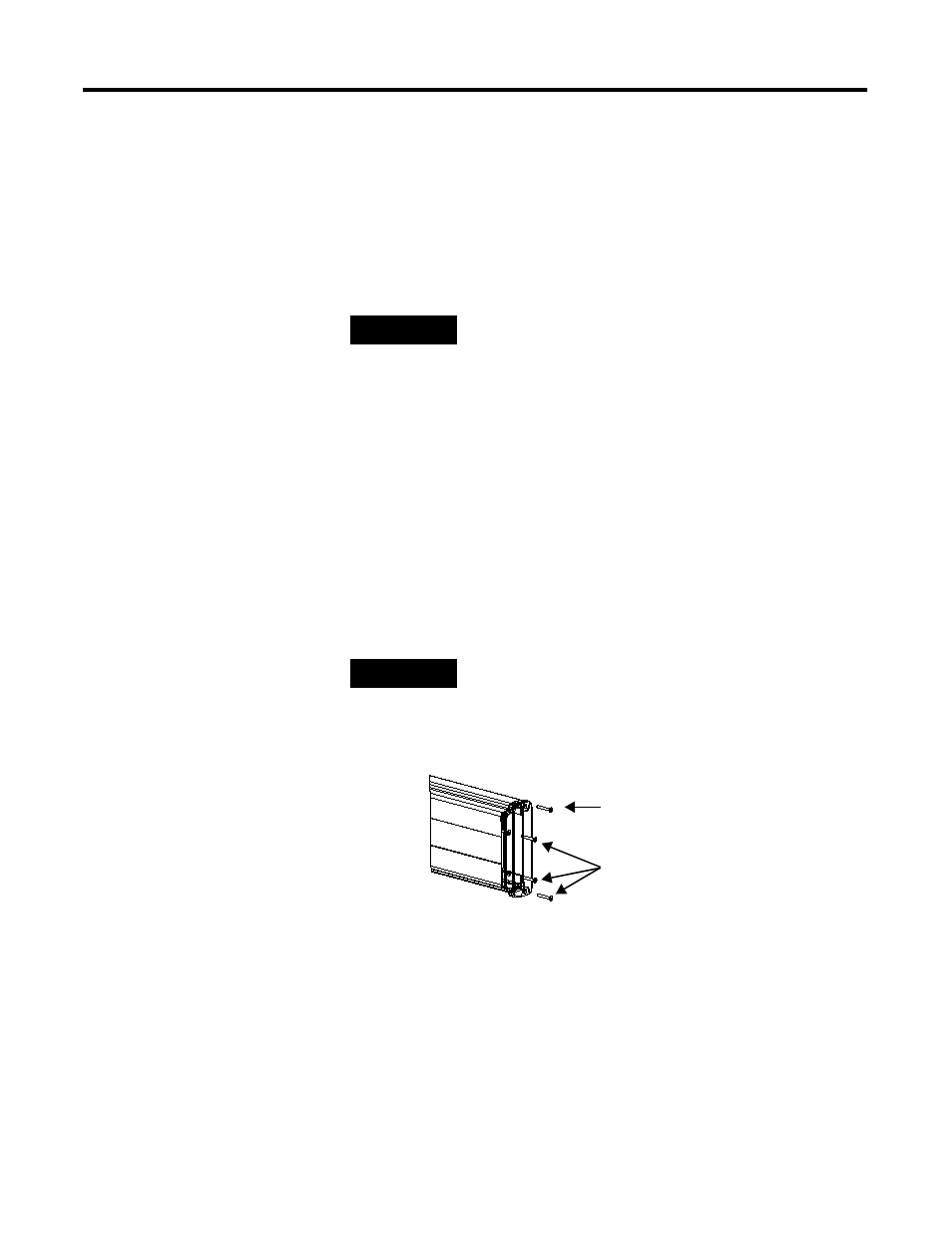

Fasten these three screws to each end cap.
Do NOT fasten this screw to the end cap.
