186 Troubleshooting Your System

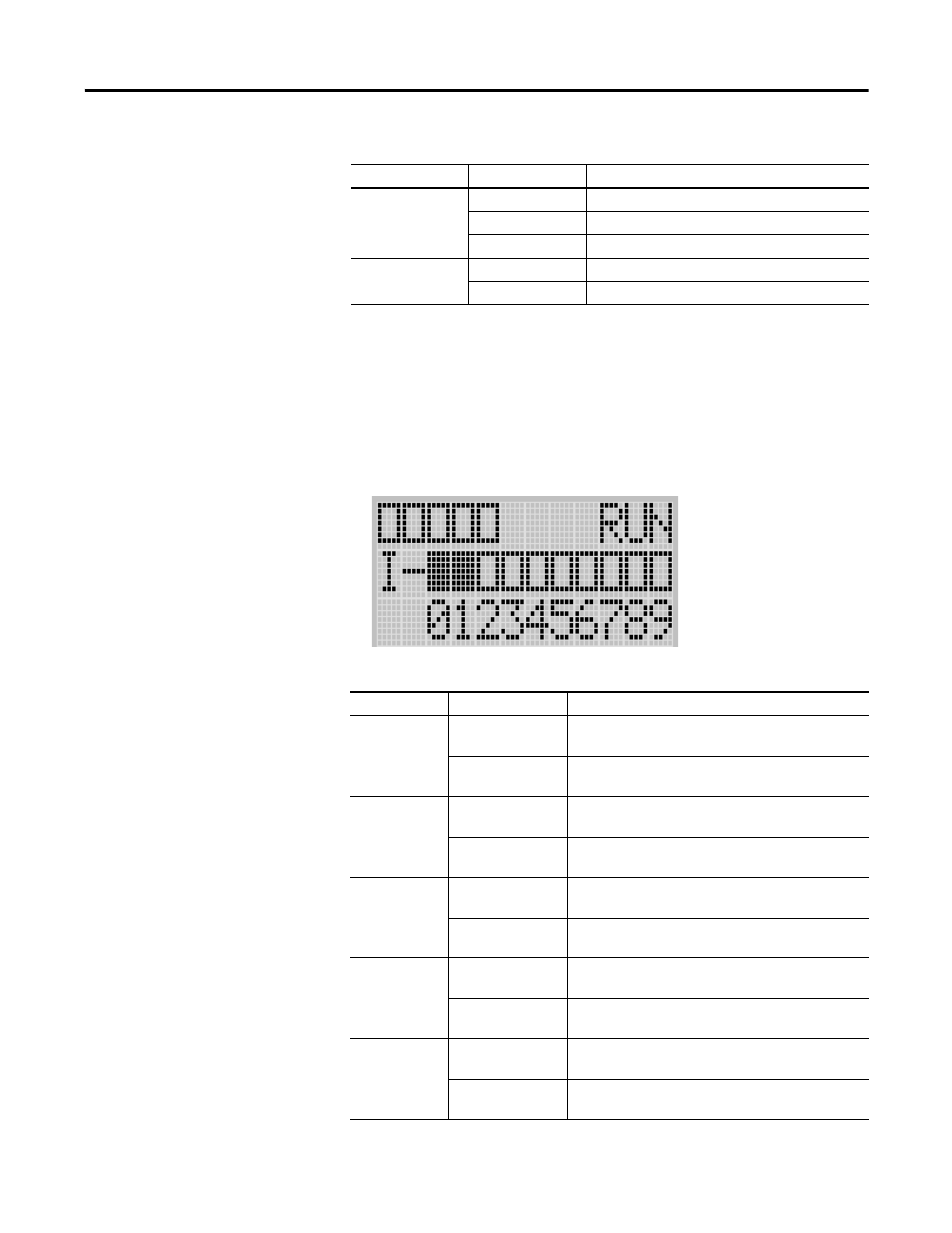

Status Indicators on the LCD
Status Indicators on the LCD
FAULT
off
No fault detected
red flashing
Application fault detected
red
Controller hardware faulted
FORCE
off
No forces installed
amber
Forces installed
Status Indicators on the LCD
Indicator
Color
Indicates
COMM 0
off
(empty rectangle)
Not transmitting via RS-232/485 port (Channel 0)
on
(solid rectangle)
Transmitting via RS-232/485 port (Channel 0)
COMM 1
off
(empty rectangle)
Not transmitting via Ethernet port (Channel 1)
on
(solid rectangle)
Transmitting via Ethernet port (Channel 1)
DCOMM
(1)
(1)
When using a MicroLogix 1100 controller, the DCOMM LED applies only to Channel 0.
off
(empty rectangle)
Configured communications
on
(solid rectangle)
Default communications
BAT. LO
off
(empty rectangle)
Batterty level is acceptable
on
(solid rectangle)
Battery low
U-MSG
off
(empty rectangle)
Default display mode
on
(solid rectangle)
Customized display mode
Controller LED Indicators
LED
Color
Indicates
CO
MM
0
CO
MM
1
DCOM
M
BA
T. LO
U-
M
SG
