Monitoring an integer file – Rockwell Automation 1763 MicroLogix 1100 Programmable Controllers User Manual User Manual
Page 121

Publication 1763-UM001D-EN-P - March 2011
Using the LCD 119
Monitoring an Integer File
For explanations in this section, we assume the followings in the application
program:
•

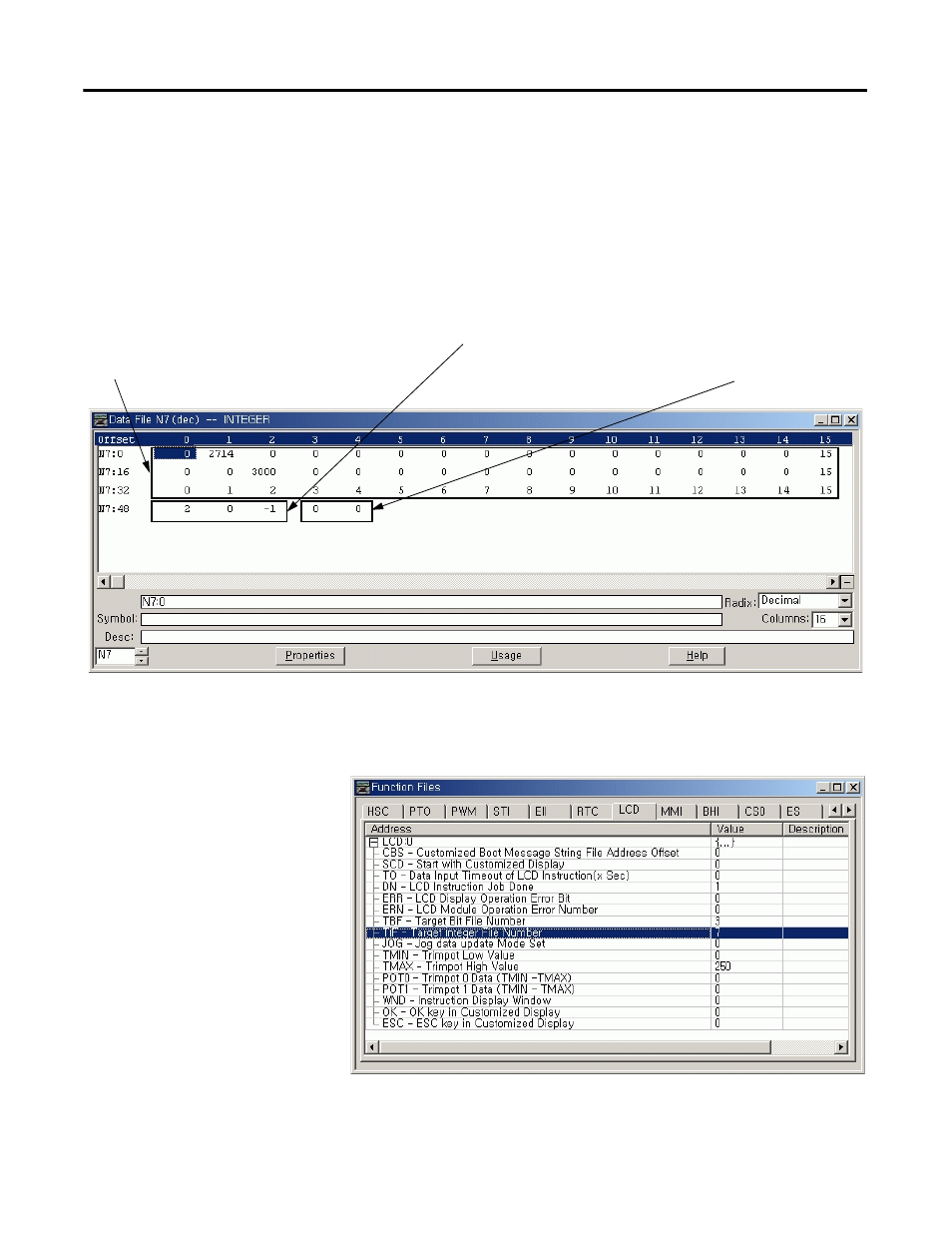

An integer file N7, which is 53 elements long (53 words), is defined with
the preset data, as shown in the screen capture below.
•
The TIF element of the LCD Function File is set to 7 to specify the
integer file N7 as the target integer file to monitor on the LCD, as
shown in the screen capture below.
•
The controller mode is set to REMOTE RUN.
data words (first 48 words), which
are monitored on the LCD
and maskable by protection bits
protection bits (second 48 bits = 3 words)
data words (after the first 51 words), which
are not monitored on the LCD and not
maskable by protection bits
