Page 132: Configuring advanced settings changing key in mode

Publication 1763-UM001D-EN-P - March 2011
130 Using the LCD
Configuring Advanced
Settings
With the Advanced Settings menu, which is a sub-menu under the main menu
of the LCD, you can use the following features:
•
changing Key In mode
•
using communications toggle functionality
•
viewing Ethernet port configuration
•
using trim pots
•
viewing system information
•
viewing fault code

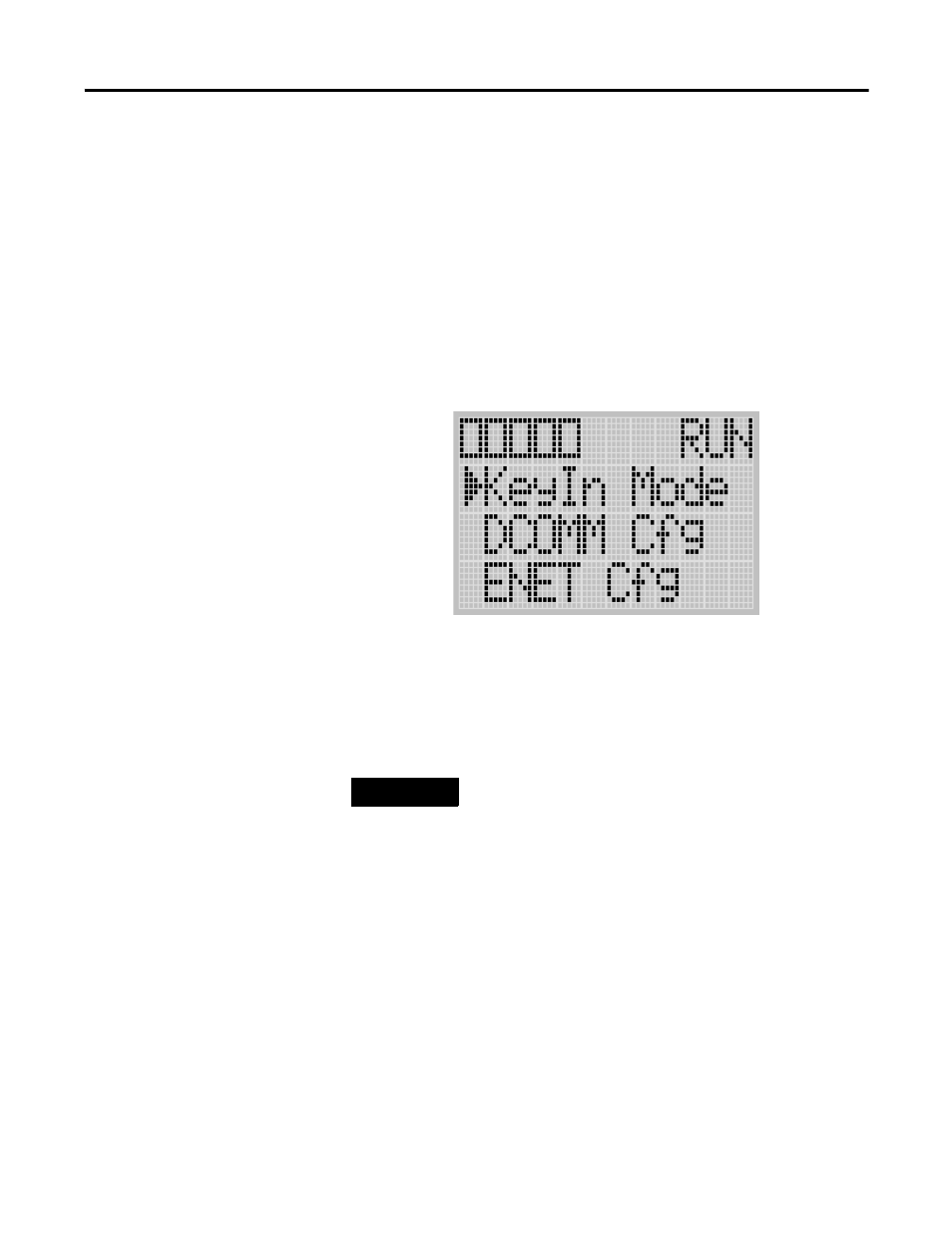

You can access to the Advanced Settings Menu screen, as shown below, by
selecting Advance Set on the Main Menu screen.
Changing Key In Mode
Key In Modes
There are two Key In modes, Continuous and Discrete.
The current Key In mode determines how the value changes are applied when
you press the Up and Down keys to change the data value for a trim pot.
When set to Continuous, the changes are applied immediately whenever you
press the Up and Down keys. When set to Discrete, the changes are applied
only when you press the OK key after you have changed the value using the
Up and Down keys.
TIP
The Key In mode has effect only when you change
the data value of a trim pot on a Trim Pot screen,
either Trim Pot 0 or Trim Pot 1 screen. For more
information on how to change the data value of a
trim pot,
