Analog wiring – Rockwell Automation 1763 MicroLogix 1100 Programmable Controllers User Manual User Manual

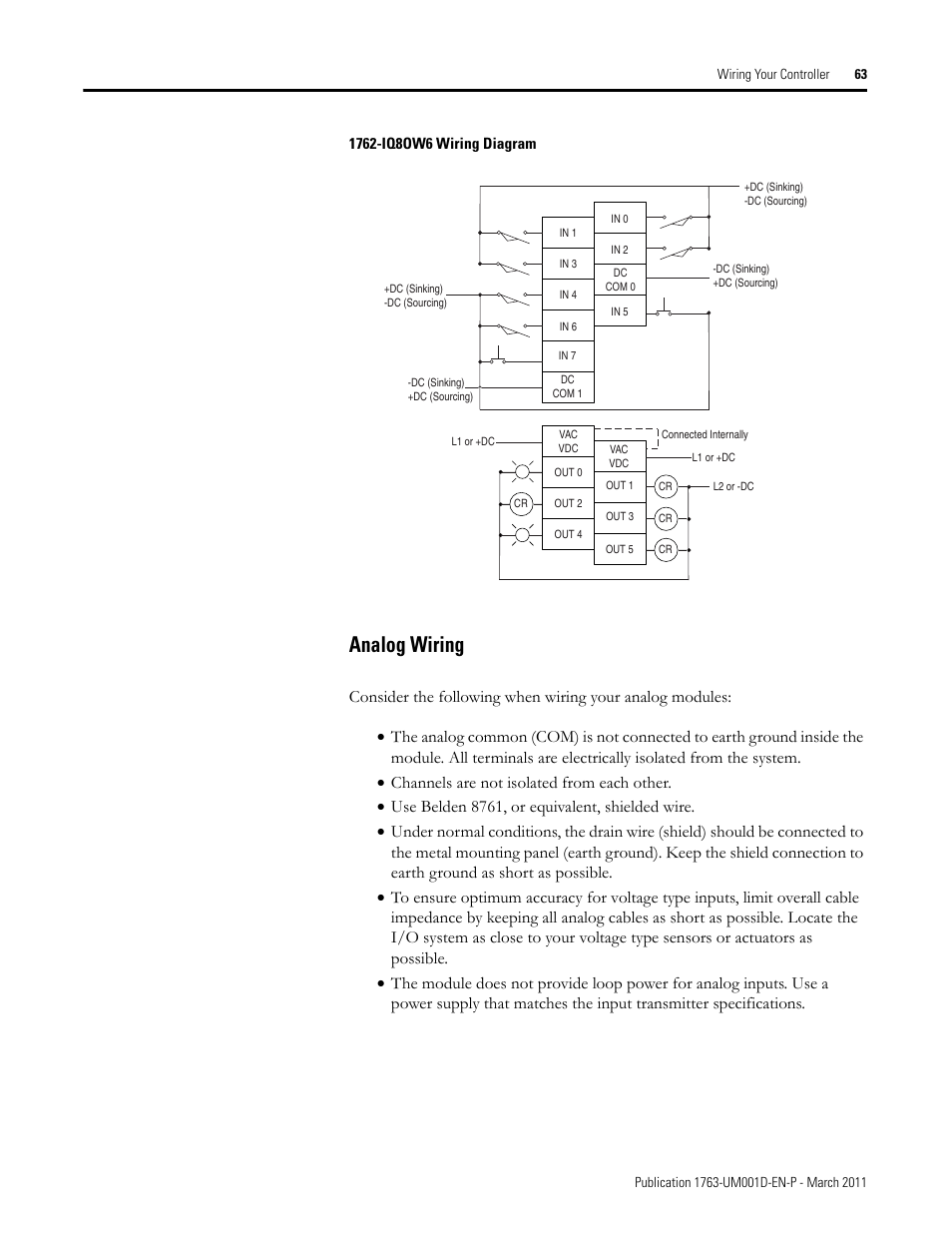

Page 65
