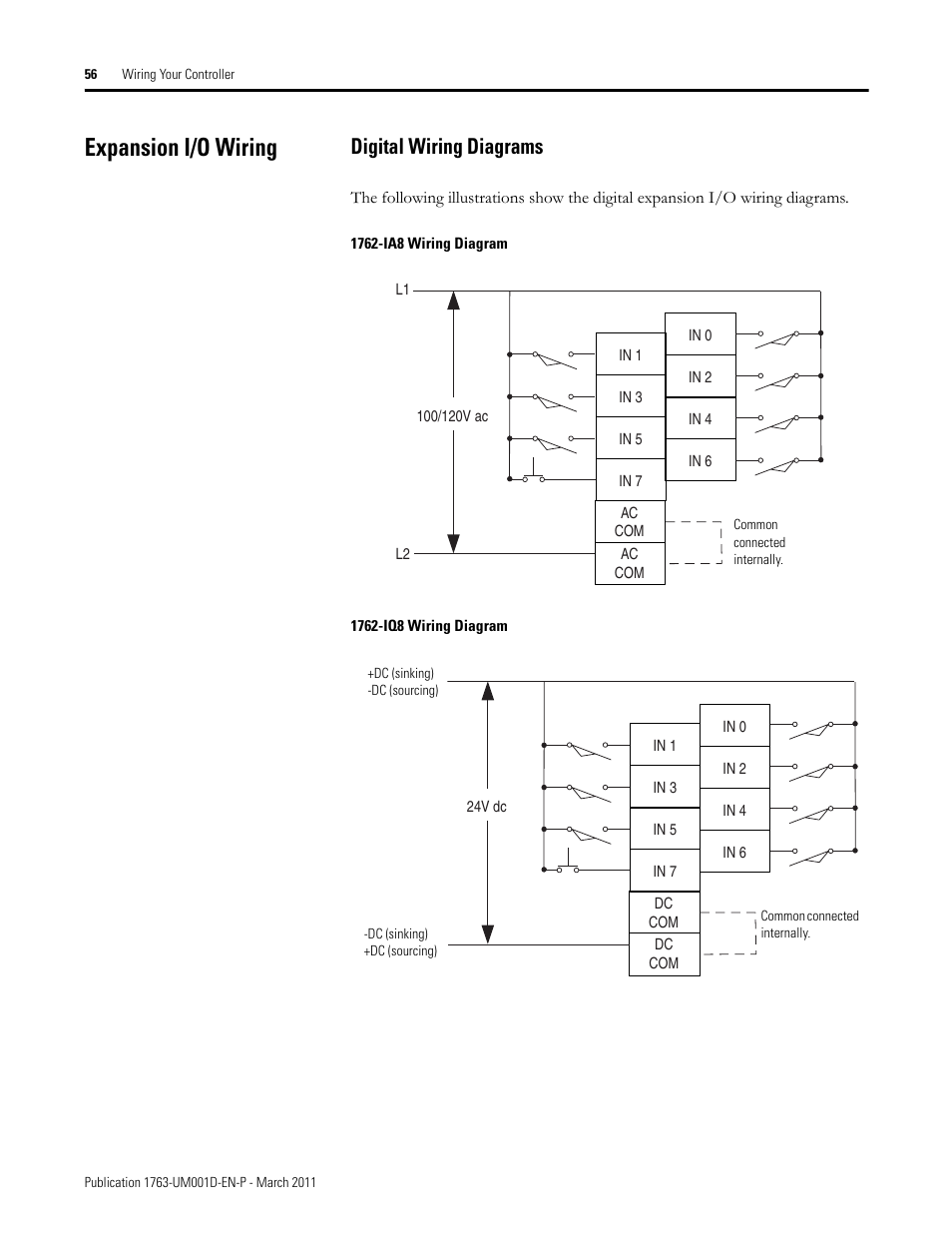

Expansion i/o wiring, Digital wiring diagrams – Rockwell Automation 1763 MicroLogix 1100 Programmable Controllers User Manual User Manual
Page 58
