Power distribution, Periodic tests of master control relay circuit – Rockwell Automation 1763 MicroLogix 1100 Programmable Controllers User Manual User Manual

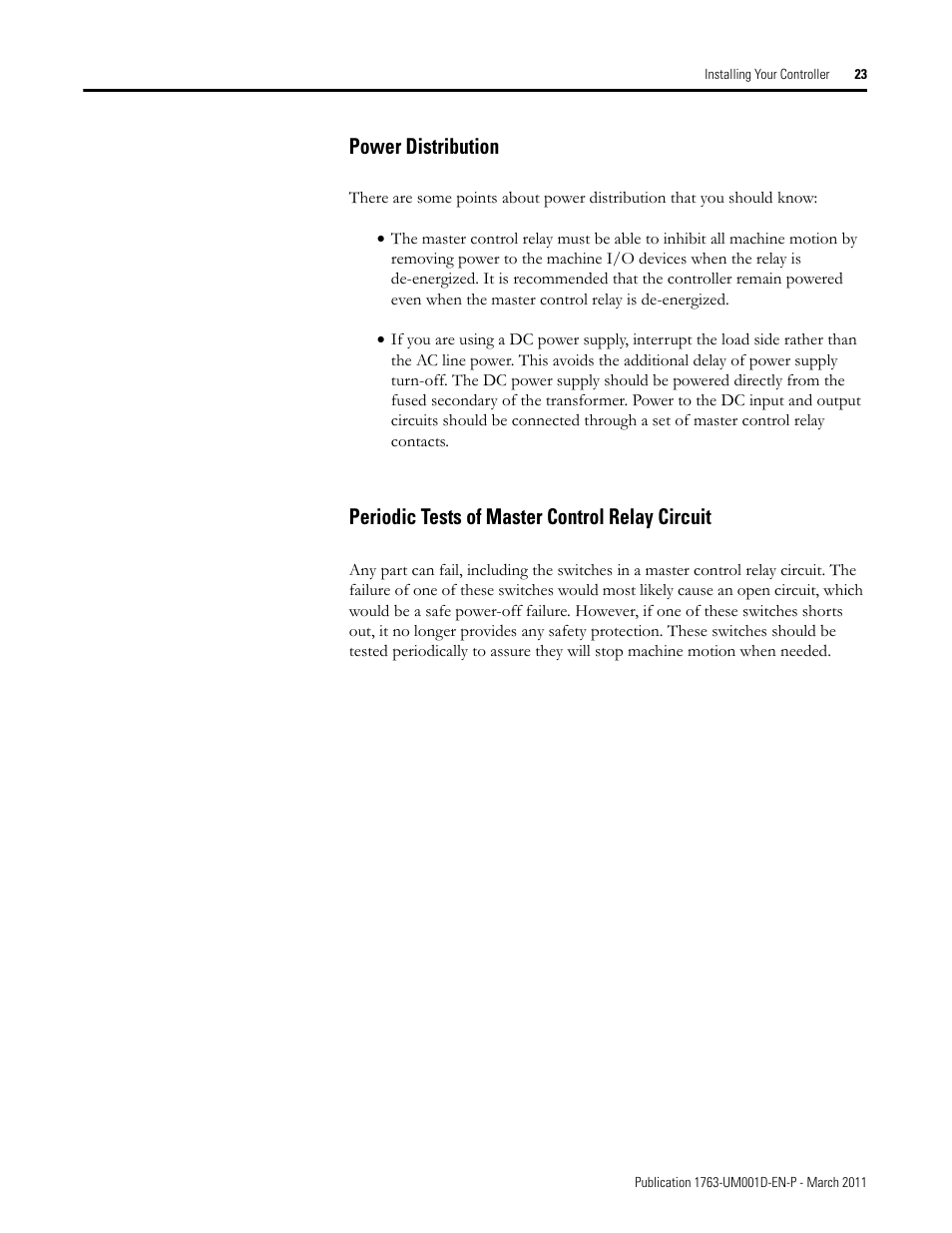

Page 25
