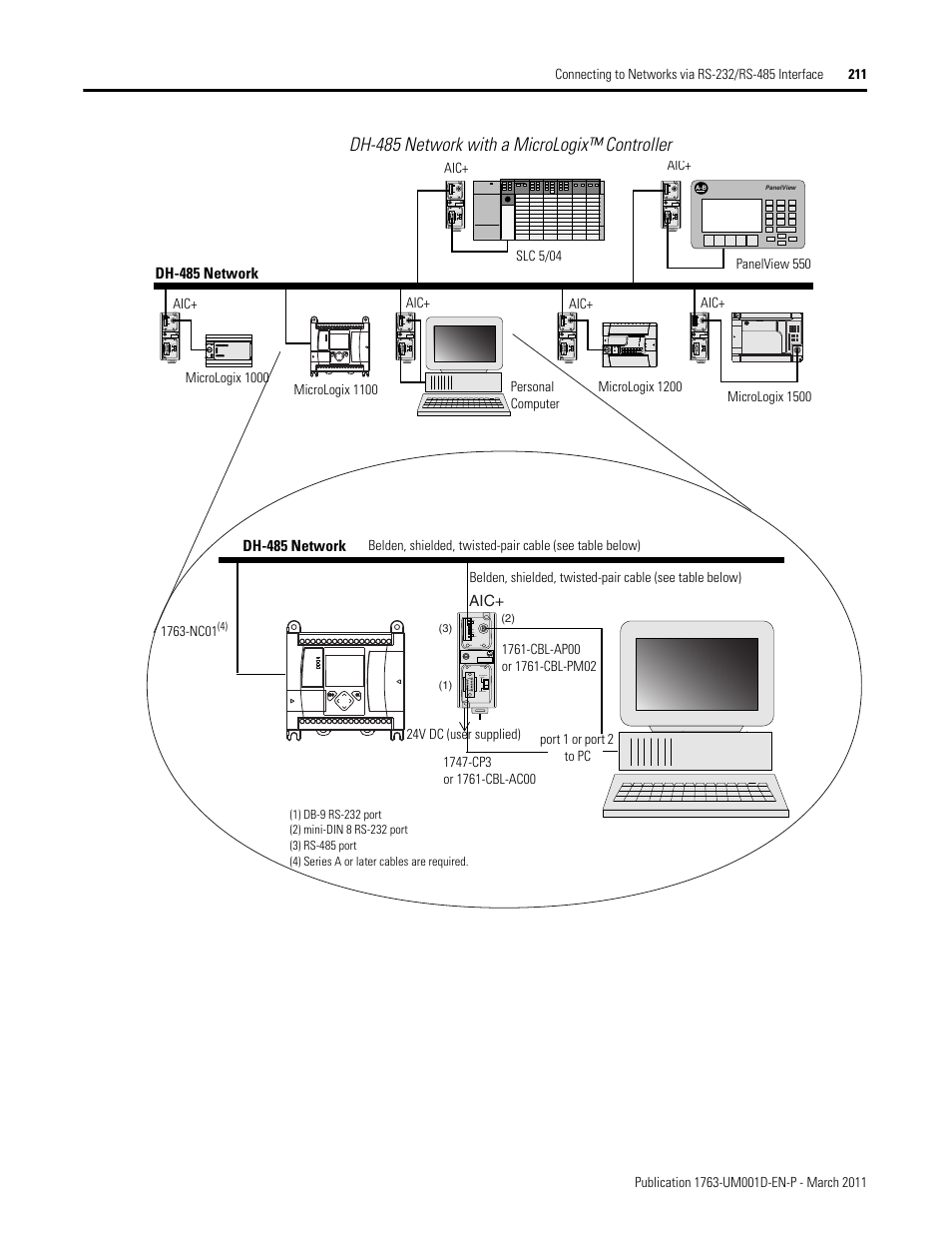

Dh-485 network with a micrologix™ controller – Rockwell Automation 1763 MicroLogix 1100 Programmable Controllers User Manual User Manual
Page 213
