Figure 3.1 structure and status data, Status structure -14, Status structure – Rockwell Automation 900 Temperature Controller Communications Functions - Series B User Manual
Page 55
Publication 900-UM004D-EN-E - July 2010
Communications Data
3-13
Status Structure

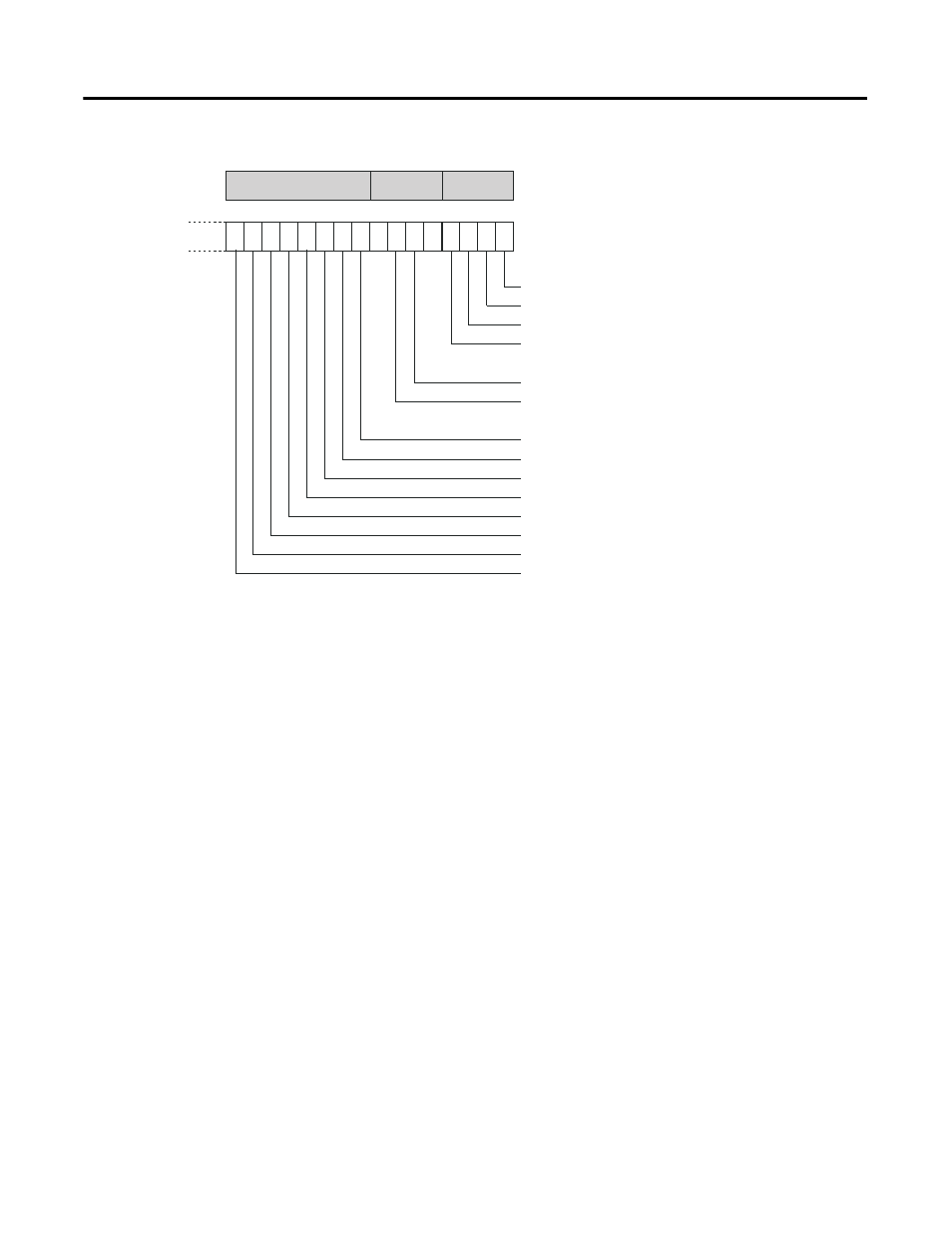

Figure 3.1 Structure and Status Data:
➊ Applies to the 900-TC8 only
0
0
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Bit position
Heater overcurrent (CT1)
Heater current hold (CT1)
A/D Converter Error
HS alarm output (CT1)
Display range exceeded
Input error
Control output (heating)
Control output (cooling)
HB (heater burnout) alarm output (CT1)
HB (heater burnout) alarm output (CT2)
Alarm output 1
Alarm output 2
Alarm output 3
n
Program end output
Outputs
Input error
HB error
