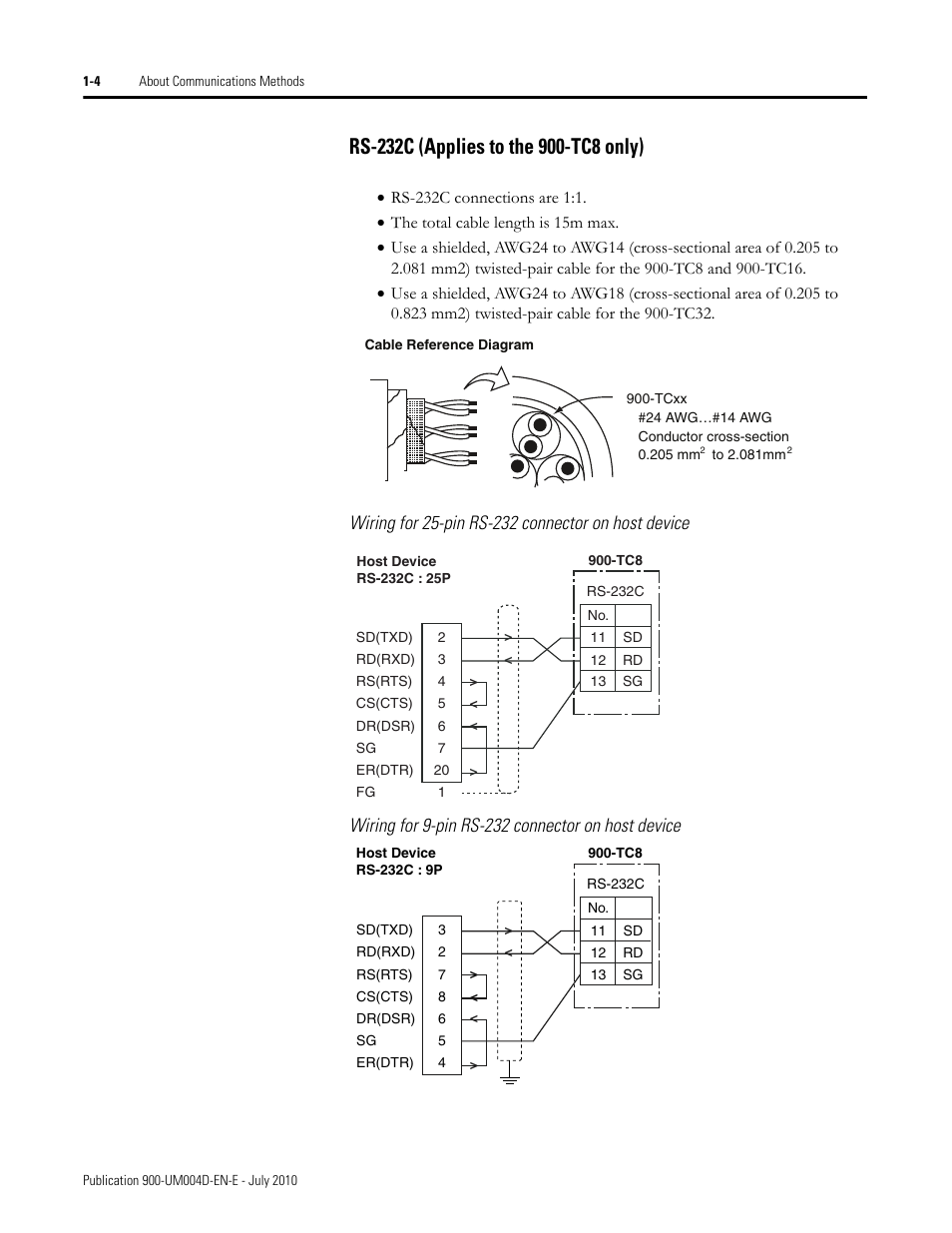

Wiring for 25-pin rs-232 connector on host device, Wiring for 9-pin rs-232 connector on host device, Rs-232c (applies to the 900-tc8 only) -4 – Rockwell Automation 900 Temperature Controller Communications Functions - Series B User Manual
Page 12
