Rockwell Automation 1407-CGCM Combination Generator Control Module User Manual
Page 77
Rockwell Automation Publication 1407-UM001G-EN-P - April 2013
77
CGCM Unit Configuration Chapter 4
Rated Power - Sets the generator's rated power in Watts. Sets the value of tag
GenRated_W
in the Configuration table.
Rated Field Voltage - Sets the generator exciter's rated field voltage while the
generator is operating at rated voltage, kW, and kVAR. Sets the value of tag
GenRatedExcV
in the Configuration table.
Rated Field Current - Sets the generator exciter's rated field current, in amperes
DC. This is the current that must be supplied to the exciter while the generator is
operating at rated voltage, kW, and kVAR. Sets the value of tag GenRatedExcI in
the Configuration table.

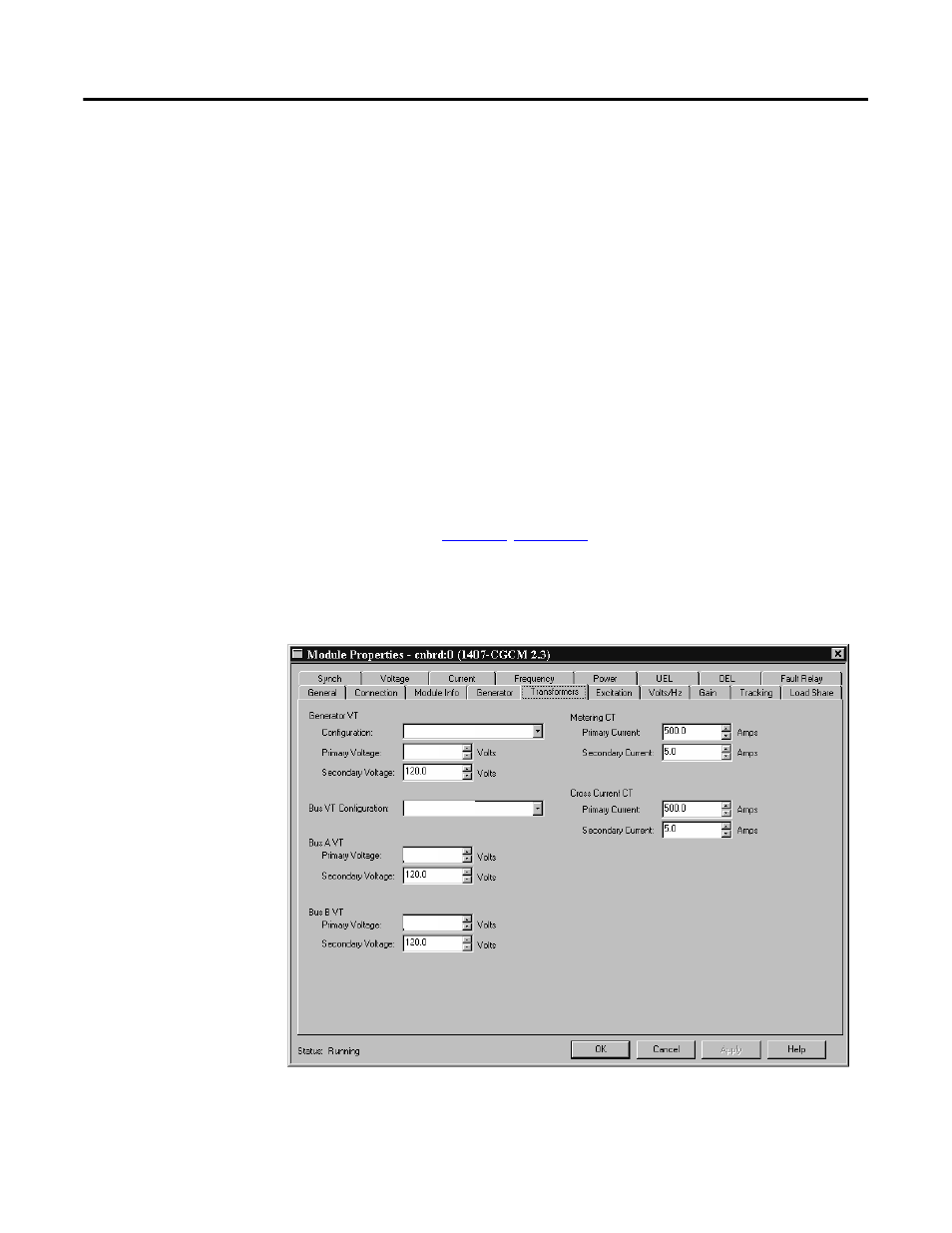

Transformers Tab
The Transformers tab is used to match the unit with the configuration of the
generator voltage and current sensing transformers. To configure the Transformer
tab, you must know the system wiring configuration. The settings entered in the
Transformers tab must correspond to the actual wiring configuration.
Please refer to
, for information on various wiring
configurations.
Please refer to the VT and CT manufacturer’s data for assistance in entering the
correct primary and secondary voltages.
Open Delta
Open Delta
12000.0
12000.0
12000.0
