Tools menu, Window menu – Rockwell Automation 1492-PRINT110_PRINT220 ClearTools User Manual User Manual
Page 57

User Manual
User interface
51

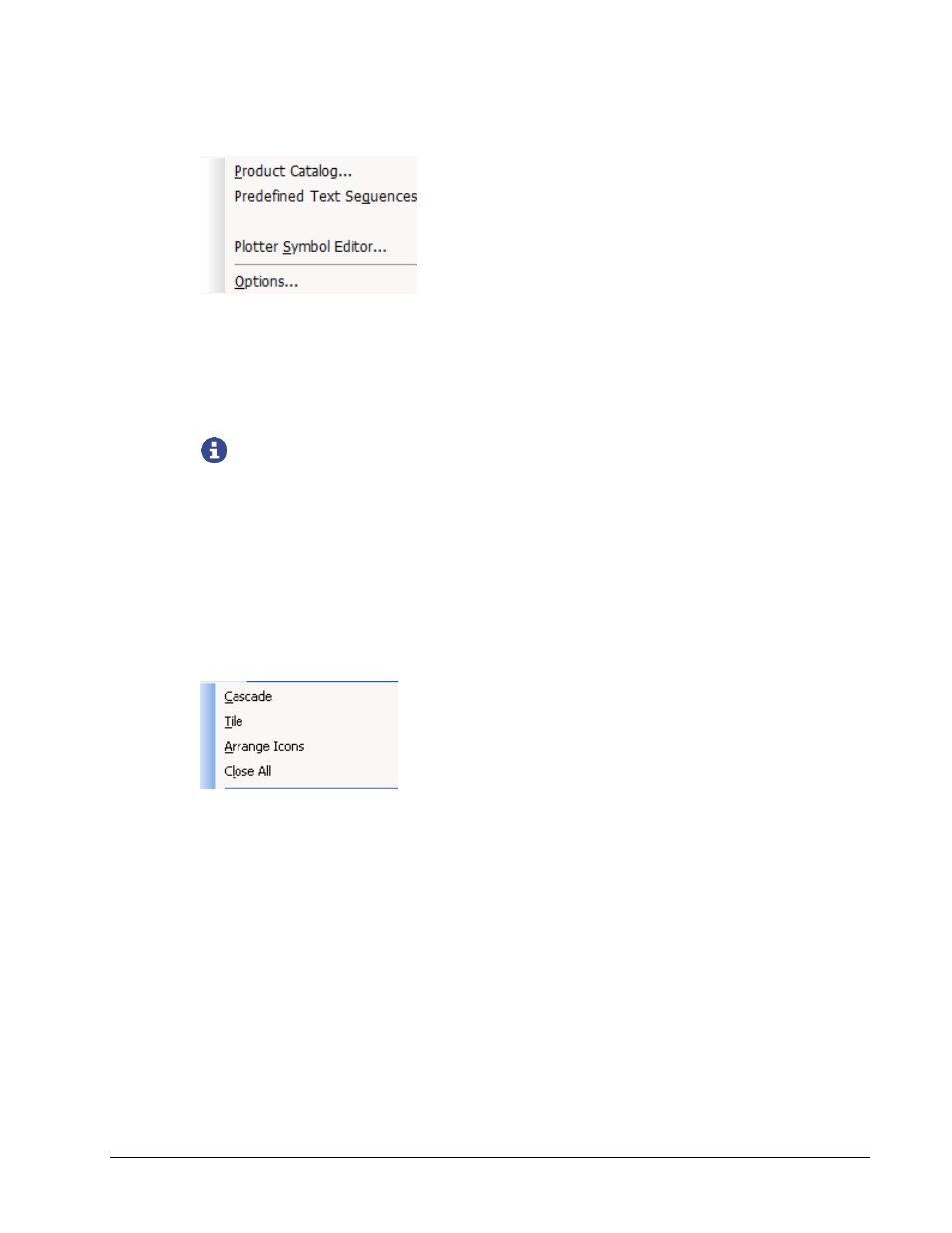

Tools menu
Product Catalog...
Open the "Product catalog" dialog, e.g. to add a new marker type to the current project.
Predefined Text Sequence…
You can use this menu item to define a text sequence which you
can then insert by clicking on
Paste > Predefined text sequence… (see chapter "Defining
predefined text sequences").
Predefined text sequences are only possible for text elements.
Plotter Symbol Editor…
This menu item enables you to call the plotter symbol editor (see section "Symbol
Explorer/Plotter Symbol Editor").
Options
This menu item opens the "Options" dialog, where you can adjust various personal settings like
the unit of measure, the color of gridl
ines, etc (see chapter "Options dialog“).
Window menu
Cascade
Select this menu item to arrange the open marker types and start page so they are overlapping
each other.
Tile
Select this menu item to arrange the open marker types and start page so they are on top of
each other on the workspace.
Arrange Icons
This menu item minimizes all windows to icon size.
Close All
This menu item closes all marker types. If you have not saved the file, a message box appears.
