Setting the same height
Select the elements whose height you want to change, then click on this icon.
On the menu bar, select Shape > Same Height to adjust the height.
Setting the same width
Select the elements whose width you want to change, then click on this icon.
On the menu bar, select Shape > Same Width to adjust the width.
Edit layers

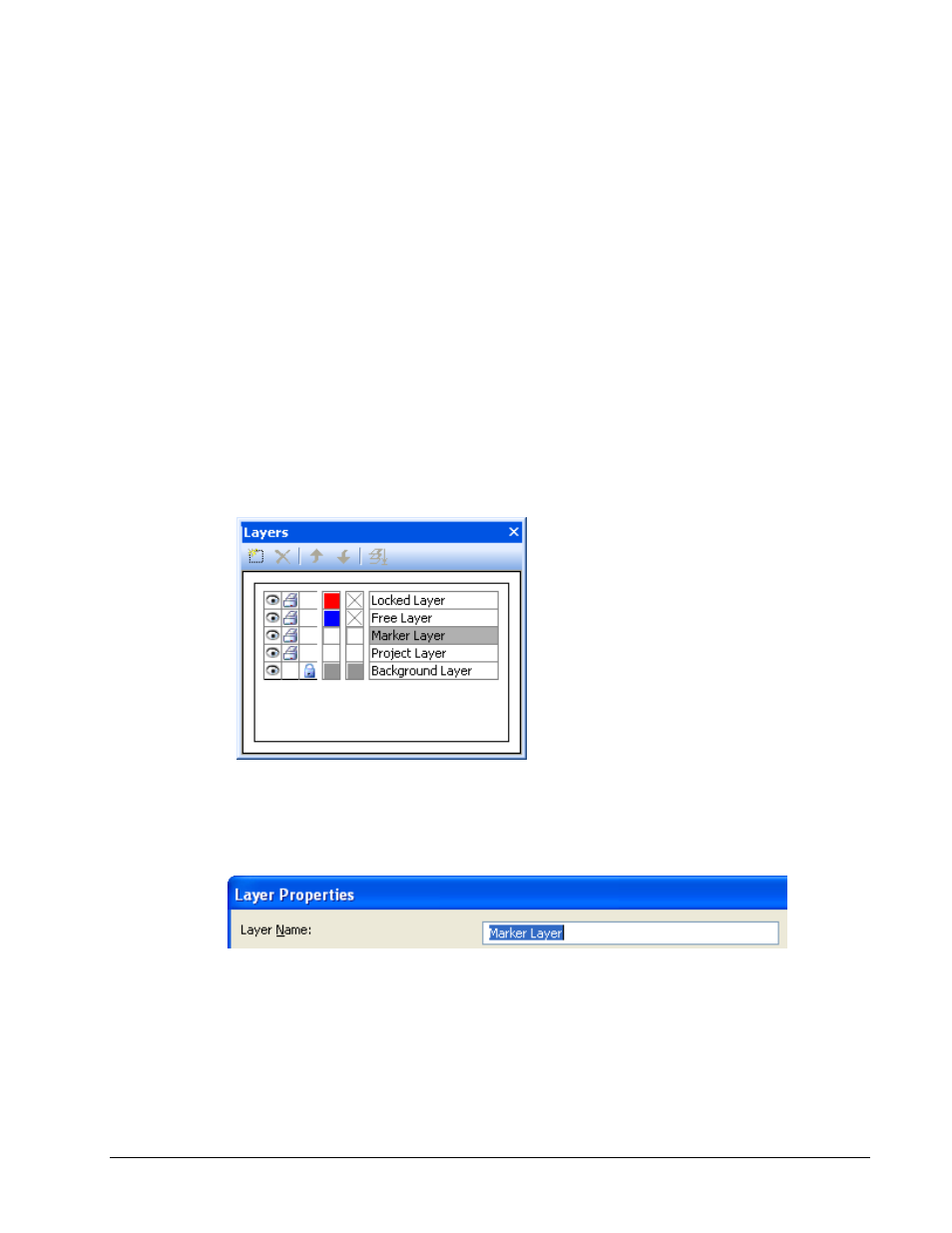

The pages of a marker type are organized into layers:
You can use the "Layers" dialog to edit the individual layers.
To show or hide the layers, select View > Layers on the menu bar.
Double-click on the layer you want to change (e.g. "Marker layer") to open the "Layer
properties" dialog.
7
Changing the layer name
The name of the layer can be changed in the dialog "Layer properties" (see chapter "Editing
layers").
Enter the new name in the "Layer Name" field and confirm your input by clicking on OK.
The new name applies to this file.
Changing the layer color
You can use the "Layer Properties" dialog to change the colors of the layers. To open the dialog,
double-click on the layer you want to change (see chapter "Editing layers").
