User Manual

General Operation

31

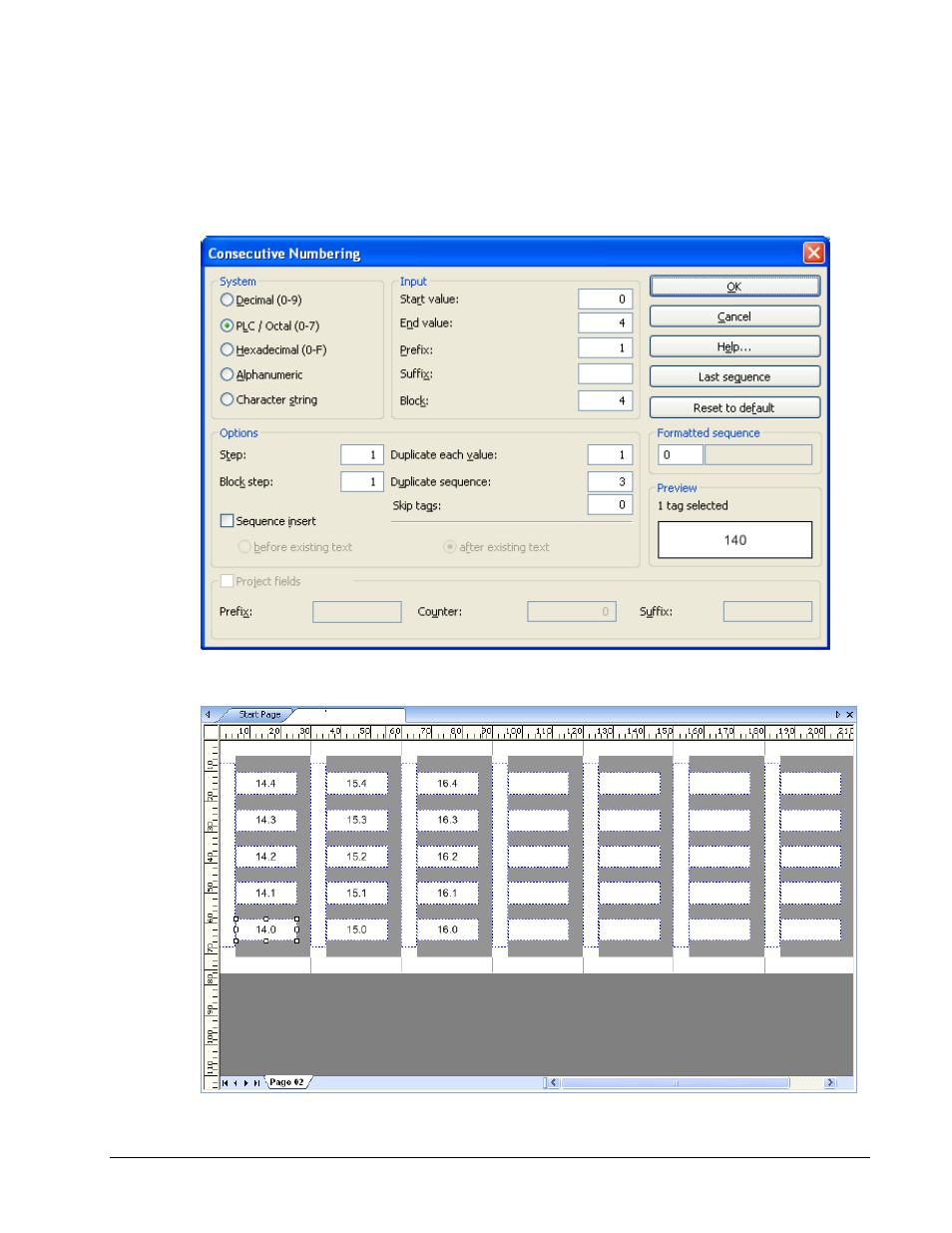

Example 2

PLC labeling format

We want to mark relays 4, 5 and 6. Each of the relays has five inputs (=I), to be labeled from 0 to
4. Numbering will start with I4.0 to I4.4, then I5.0 to I5.4, and finally I6.0 to I6.4.


Result:
