Adjusting the marker type to the plotter – Rockwell Automation 1492-PRINT110_PRINT220 ClearTools User Manual User Manual
Page 171
User Manual
Activating the plotter
165
Adjusting the marker type to the plotter

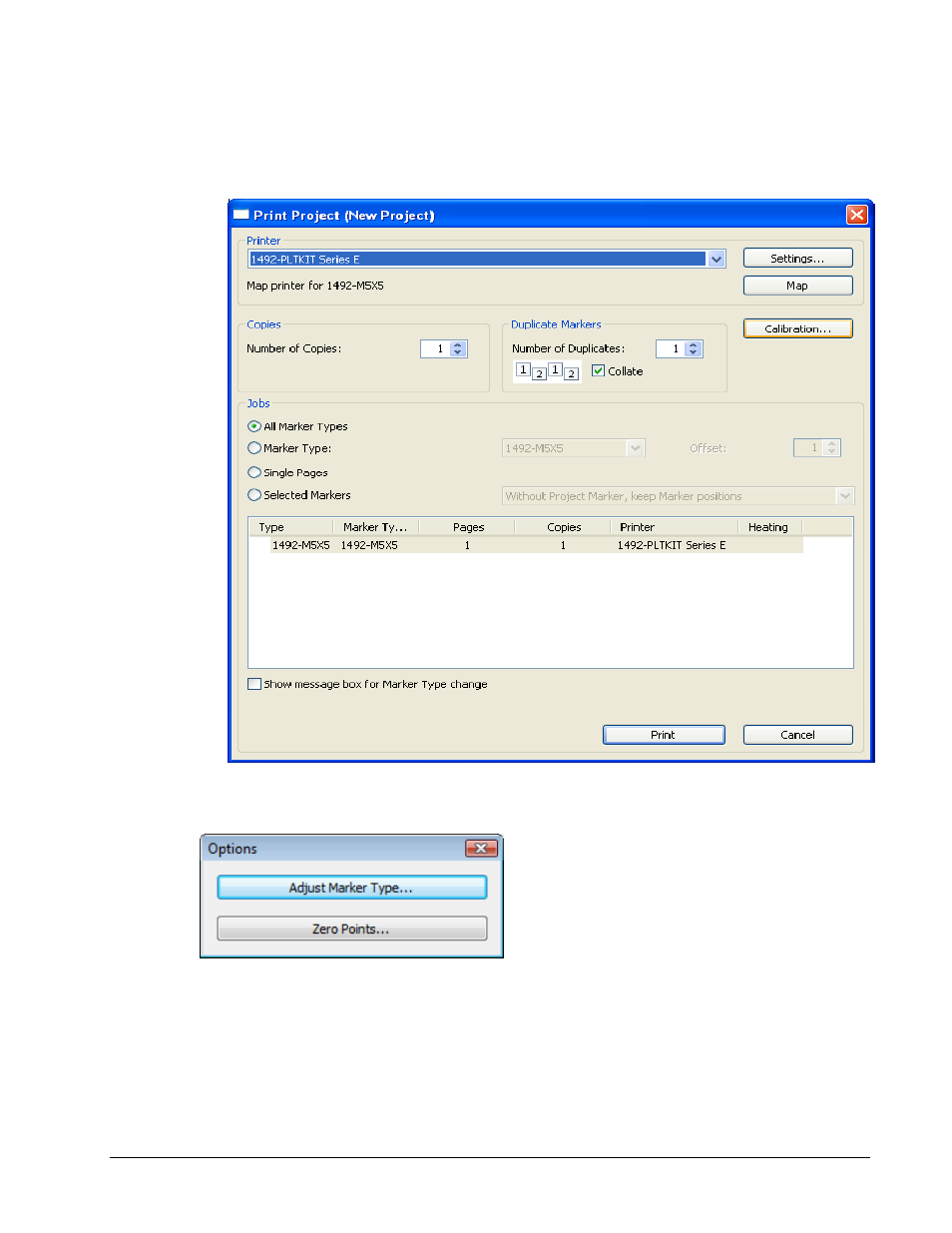

In order to adapt a plotter allocation to the marker type, click on
File > Print > Calibration…
In the window that now appears, you can choose whether you wish to calibrate the marker type
(see "Adapting marker type to printer") or calibrate the zero points of the plotter.
