Step 7: field mappings – Rockwell Automation 1492-PRINT110_PRINT220 ClearTools User Manual User Manual
Page 137
User Manual
Importing files
131
Step 7: Field mappings

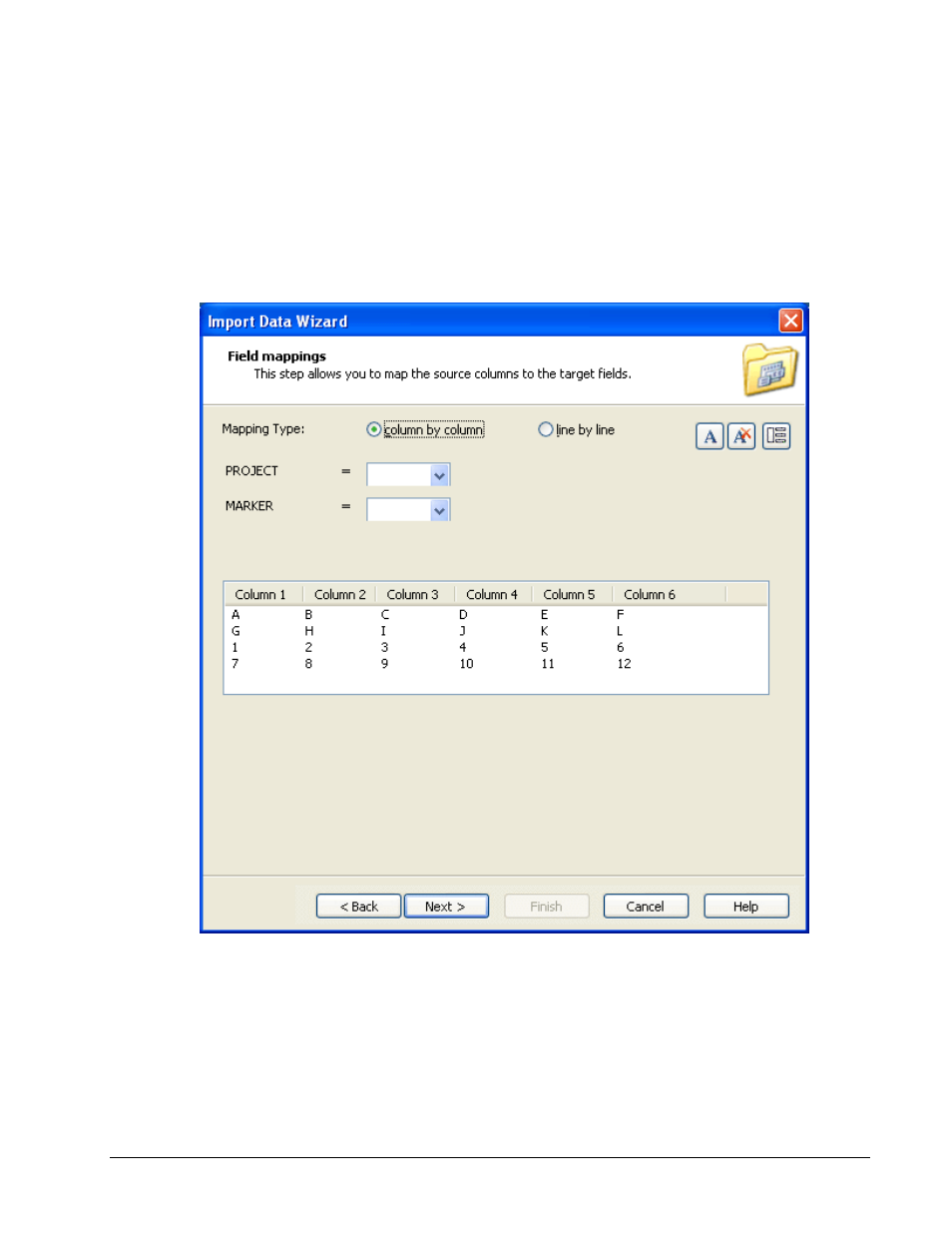

Use this step to determine the field mappings.
Mapping type
Field mapping
Field format
Mapping type
Column by column
Column by column refers to the columns of the data grid.
Select Column by column if you want to assign the contents to special columns
(markers/elements).
Line by line
Line by line refers to the lines of the data grid.
