User interface
39
User interface
Introduction

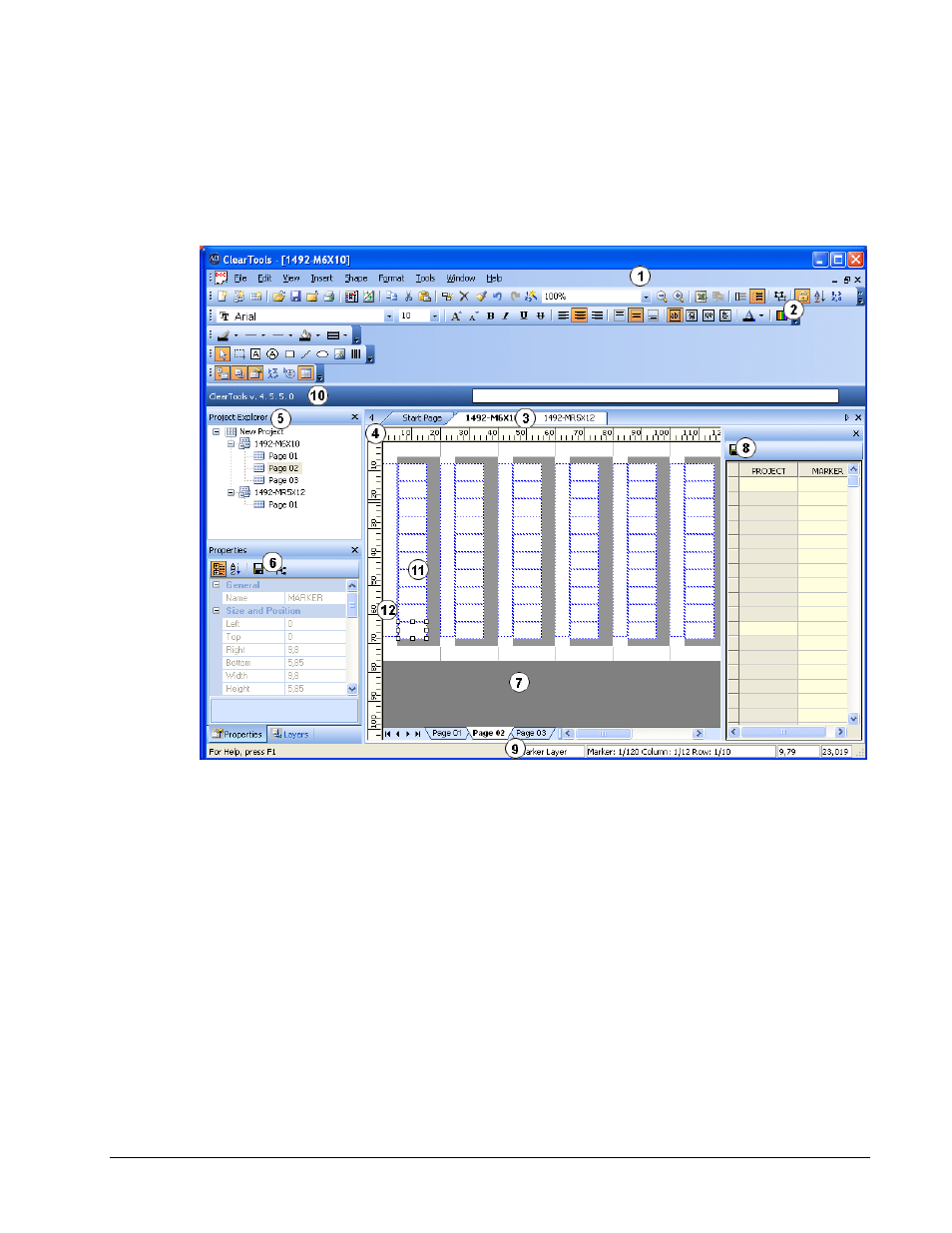

Depending on the configuration, the user interface can include different elements:
1
Menu bar
The menu bar enables you to use the most important program functions.
Menu items can be active or inactive.
2
Toolbars
You can use the icons of the toolbars to run important menu commands.
The toolbars are movable and dockable.
3
Tabs
The tabs are arranged below the toolbars.
If you click on a tab, the associated marker type moves to the foreground.
4
Ruler
There are rulers along the top and the left of the workspace. You can use the
rulers to measure distances and spacing.
