User Manual
General Operation
27
Duplicate sequence
This is where you specify the number of times the sequence (the value between start and end)
will be needed.
Skip tags
This is where you specify the number of labeled fields you want to skip.

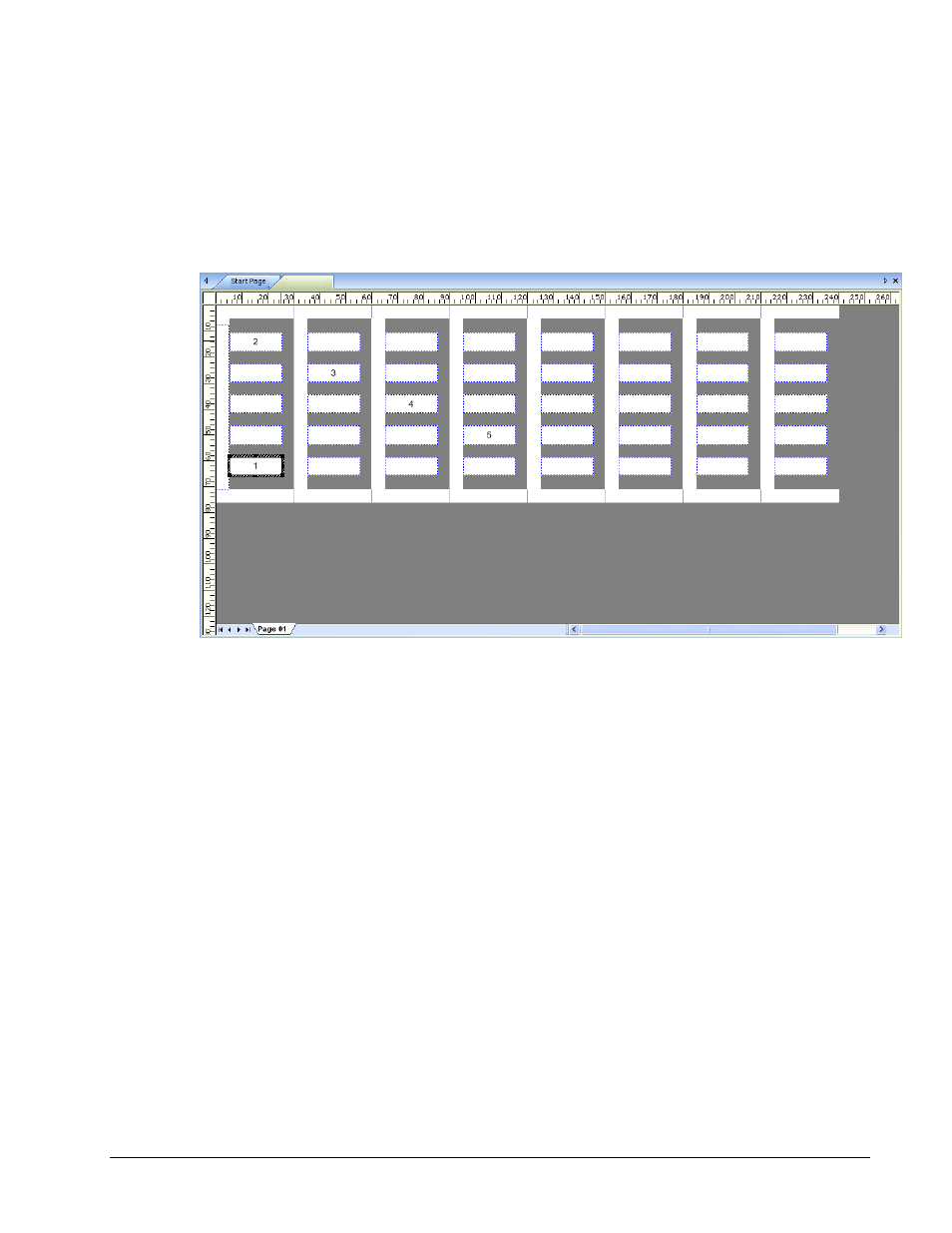

Example: start value = 1, end value = 5, skip = 3
Sequence insert
Click on the check box to activate or deactivate this function.
If the fields you are labeling already contain text, you can specify where you want the sequential
data to appear. Select the relevant radio button:
before existing text
after existing text
If you do not activate this function, the entire content of the marker will be overwritten.
Project Fields
Click on the check box to activate or deactivate this function.
This option enables you to automatically number project fields. Enter the start value in the text
field "Counter". You may also enter a "Prefix" or a "Suffix".
