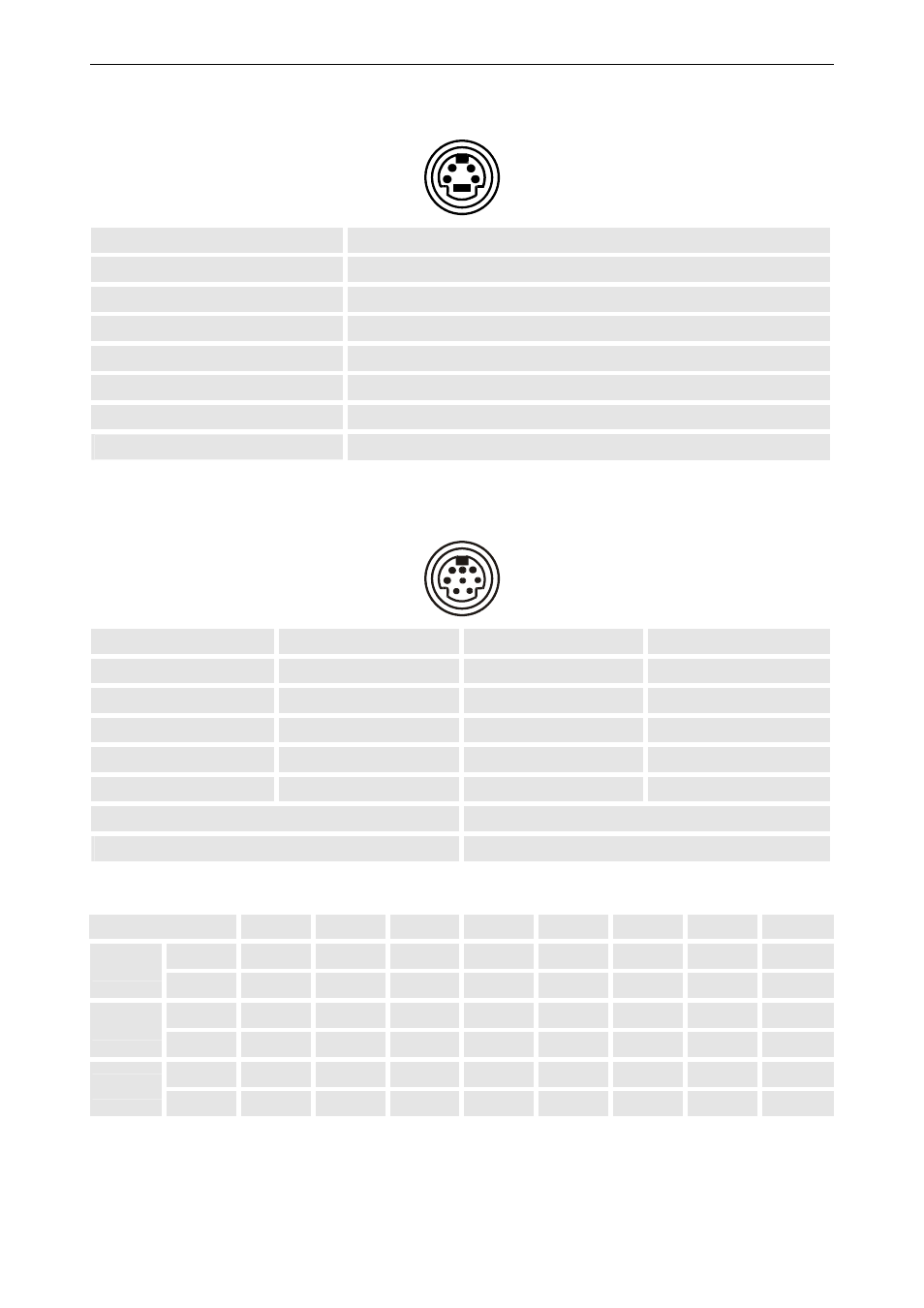

8.6.2 S-Video
4
2
3
1
Item specification
1,2 Ground
3 Y
4 C
Luminance level 1.0 Vpp
Color level 0.286 Vpp
Connector type Mini Din 4pin
Termination 75 Ω
Table 8-7
8.6.3 Component Video
1 2
3 4 5
6 7 8
Item specification Item specification
1 GND 5 GND
2 CB 6 CR
3 GND 7 not connected
4 Y 8 not connected
Connector type Mini Din 8pin
Termination 75 Ω
Table 8-8
White Yellow Cyan Green Magenta Red Blue Black
IRE 75 69.5 59.1 53.6 21.4 15.9 5.4 0
Y
mV 525 487 413 375 150 112 38 0
IRE 0 -37.5 8.6 -28.9 28.9 -8.6 37.5 0
Pb
mV 0 -263 60 -202 202 -60 263 0
IRE 0 3.4 -37.5 -34.1 34.1 37.5 -3.4 0
Pr
mV 0 24 -263 -238 238 263 -24 0
Table 8-9
HDTV YPbPr 75% color bars. Values are relative to the blanking level.
