12. Accessories
12-22 _________________________________________________________Barco - LC series - R5976934 - user's manual - Revision 08 - April 2008
12.7 Long ceiling mount
First mount the screen bracket to the monitor, cf.
. Screen bracket (adapter plate)

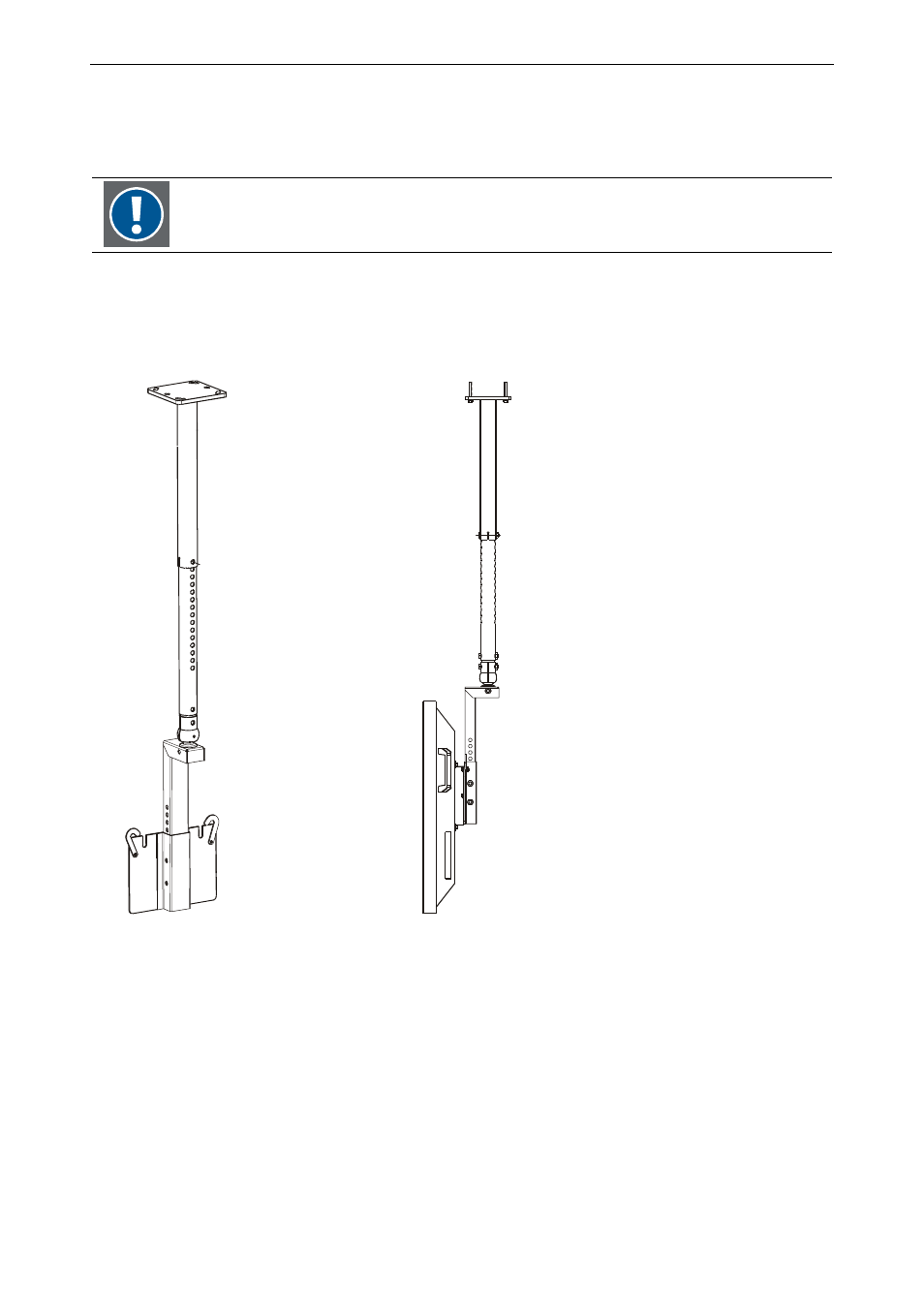

The long ceiling mount fixes the monitors to the ceiling and allows setting the lower screen edge to a distance of
the ceiling between 1235.5mm and 1614.5mm for the 42" versions, and between 1305mm and 1684mm for the
47" versions, respectively.
The monitors can be tilted by 20 degrees thanks to the ball point connection.
