12.2.4 Height adjustment

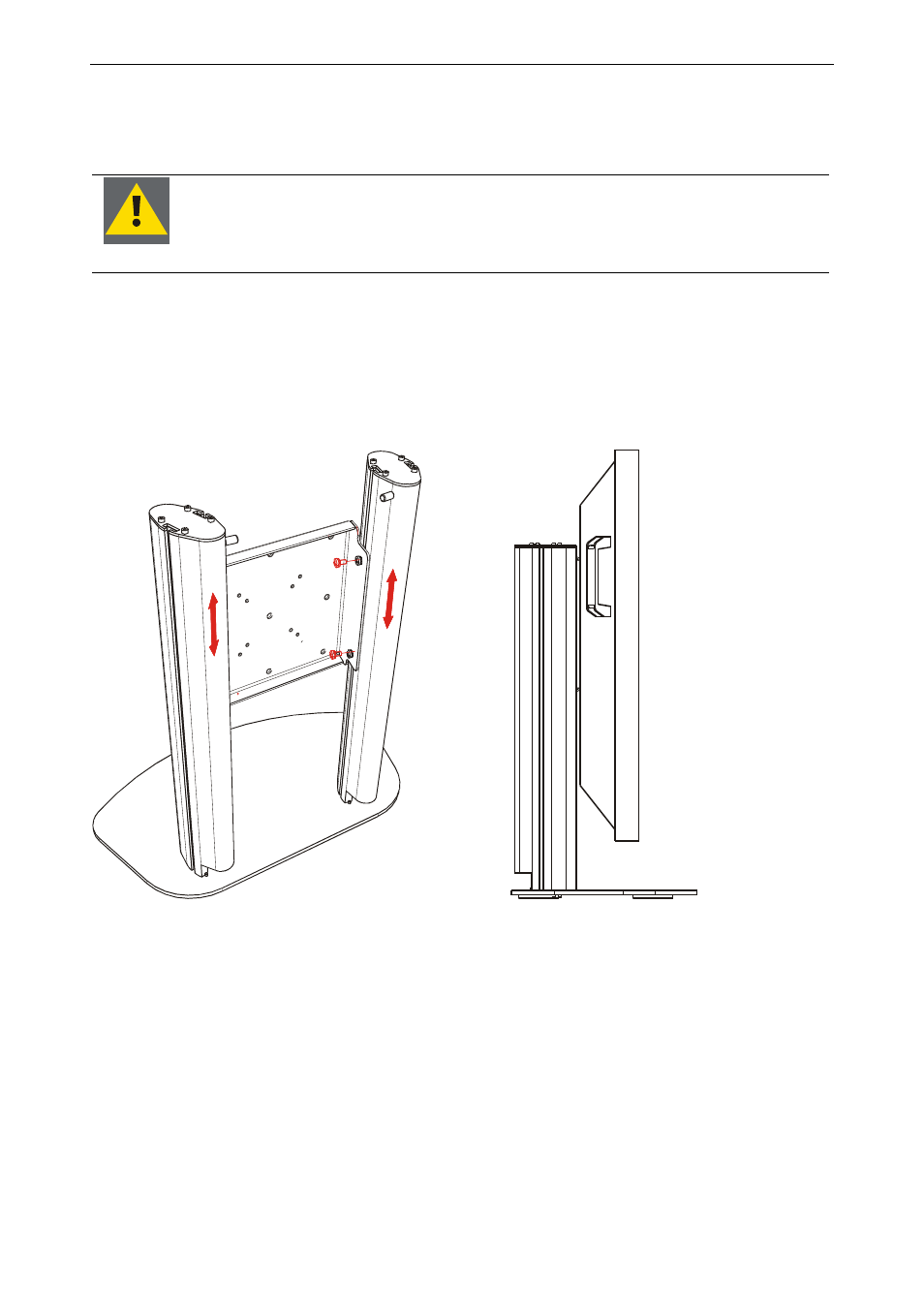

The monitor can be adjusted in height by sliding the mounting plate up or down, respectively.
For adjusting the table stand in height,
first uninstall the monitor!!
Never loosen the screws for sliding the plate when the monitor is still attached to the
table stand! Otherwise the monitor will crash on the table!!
• Uninstall the monitor!
• Remove the 2 fixation screws of the plate to the vertical bar at each side.
• Re-position the monitor.
• Re-attach the screws.
• Install the table stand to the monitor.
