12. Accessories

12-10 _________________________________________________________Barco - LC series - R5976934 - user's manual - Revision 08 - April 2008

12.4.3 Dimensions

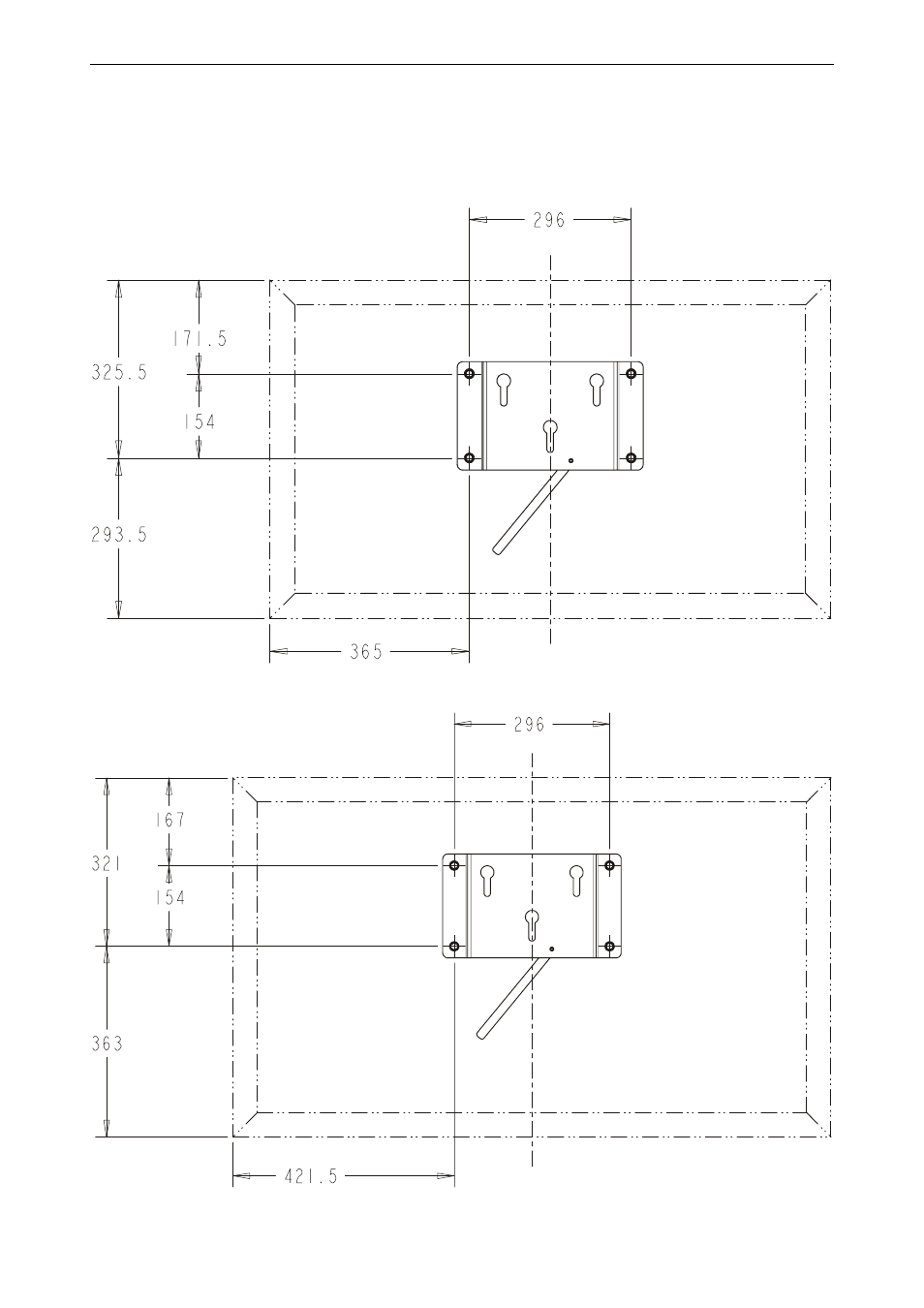

The following pictures give an overview about the measurements and dimensions of the 42" version and the
47".

12.4.3.1 Dimensions of the 42" version:

12.4.3.2 Dimension of the 47" version:
