12. Accessories

Barco - LC series - R5976934 - user's manual - Revision 08 - April 2008

_____________________________________________________________________________________

12-15

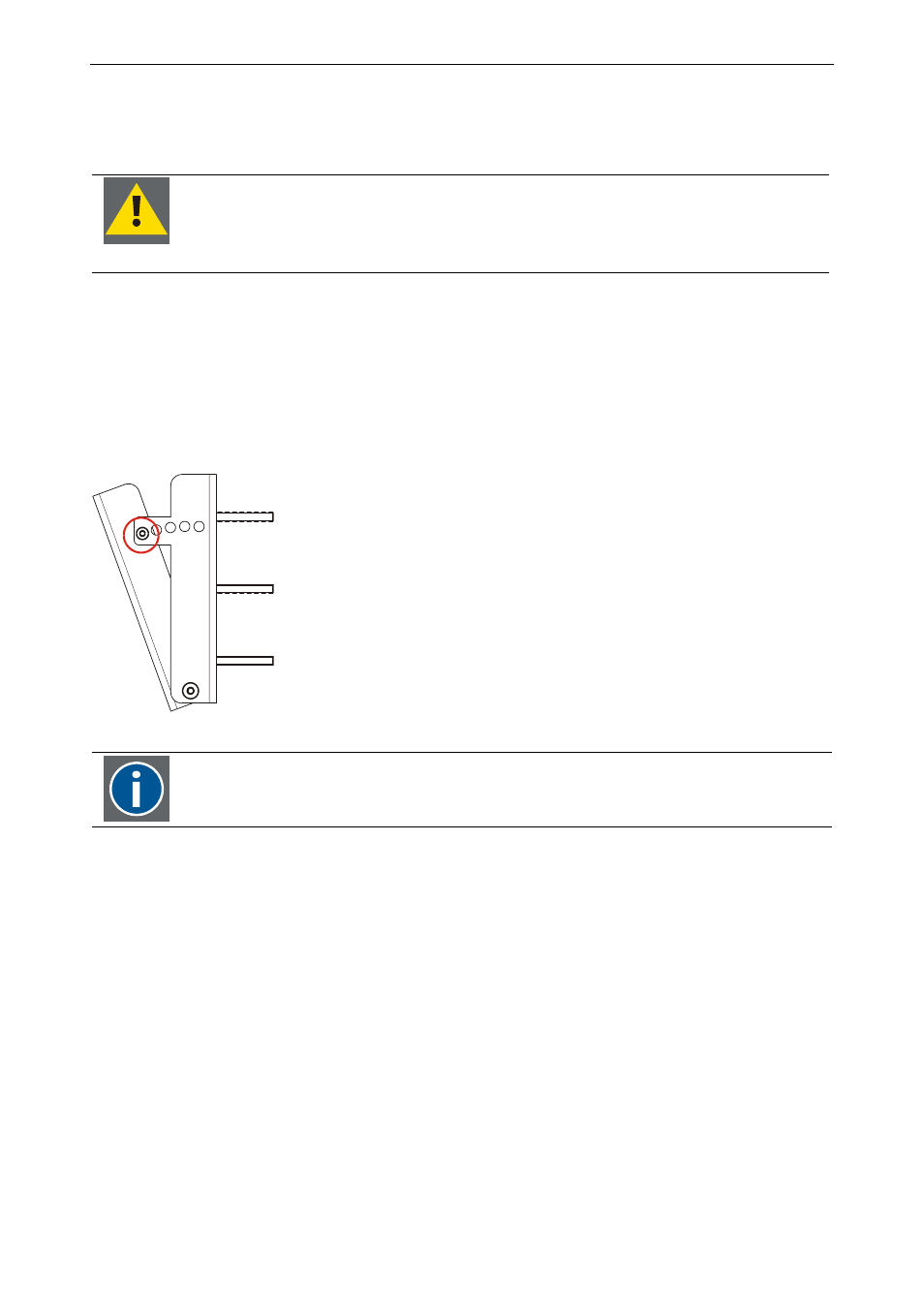

12.5.4 Tilting

To tilt the monitor, the two top screws connecting the rear plate and the front plate have to be removed.

If you want to change the tilt angle of the monitor,

first uninstall the monitor!!

Never loosen the screws for setting the tilt angle when the monitor is still attached to the
tiltable wall mount!


• Uninstall the monitor!
• Use the included allen wrench 4mm to loosen the left and the right top screws.
• Tilt the front plate to the desired degree.
• Reattach the screws.
• Re-install the monitor.

For security reasons, the two top screws to adjust the tilting angle are applied with a
center pin and thus require a special tool. Therefore the allen wrench 4mm is included
which feature a center hole for the pin.
