2.3.3 Rear view
On the rear, all interfaces as well as the power connector and the main power switch are located.
The standardized power socket is conform to IEC-320-13 and allows connecting local power cables. The internal
power supply is auto ranging from 100VAC to 240VAC.
The monitor allows connecting the following sources:
Input Interface signals
Video system input VIDEO IN RCA NTSC/PAL
S-VIDEO S-Video Mini Din 4pin NTSC/PAL
YUV (Y Pb/Cb Pr/Cr) Component Mini Din 7 pin NTSC/PAL
RGB input RGB Analog D-Sub 15 pin RGB analog
RGB Digital DVI-D 24 pin RGB digital
HD-SDI input *) Serial Digital BNC SDI / HD-SDI
HD-SDI output *) Serial Digital BNC SDI / HD-SDI
Signal receive&transmit RS232 IN D-Sub 9 pin
RS232 OUT D-Sub 9 pin
Audio RCA
(red: right (R),
white: left (L)) Audio in (L+R)
Audio out(L+R) (2x) and
Subwoofer
The pin assignments of the interfaces are listed in chapter 7.6 Interfaces and chapter 8.6 Interfaces, respectively.

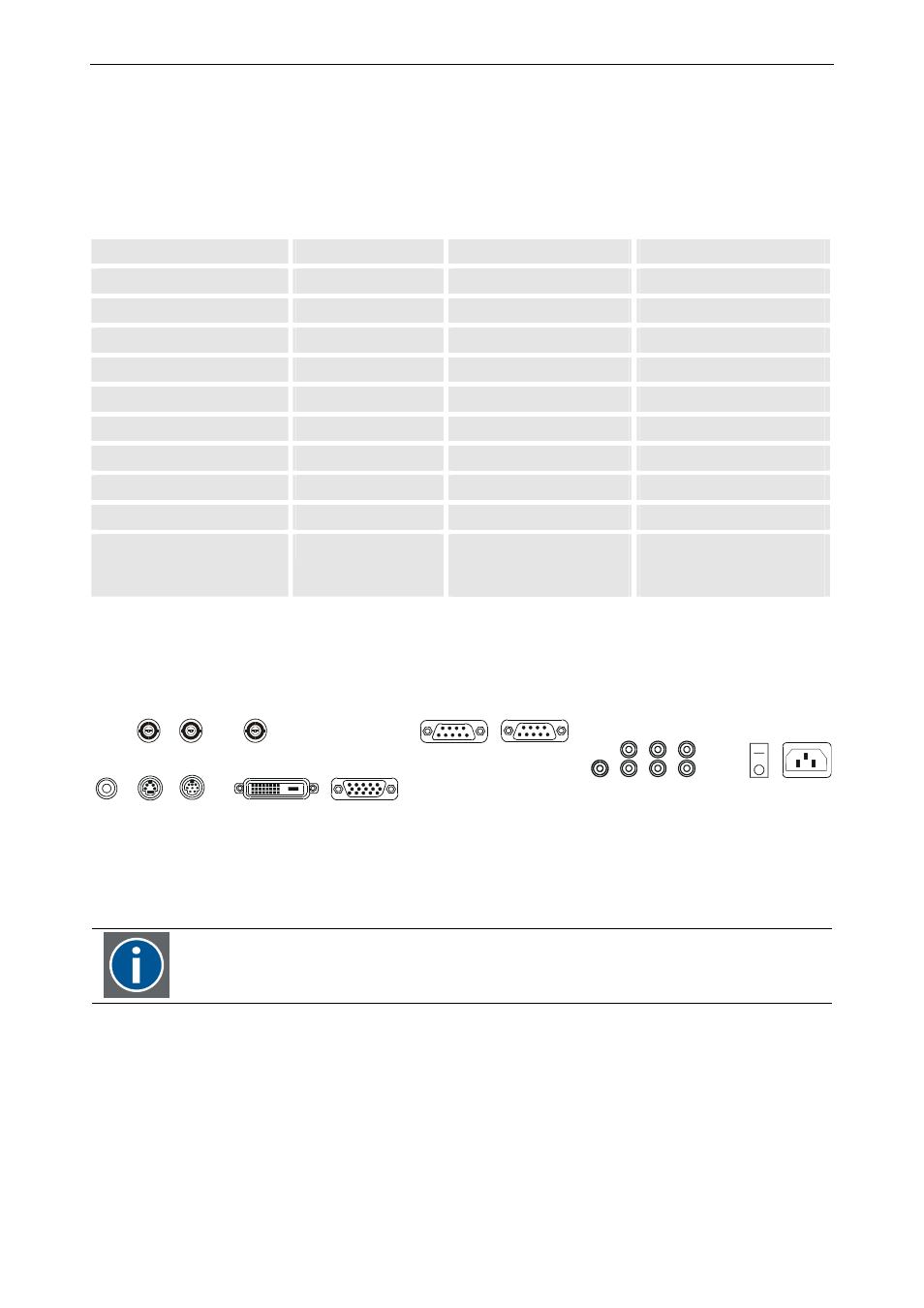

SW R/IN R/OUT2 R/OUT1
L/IN L/OUT2 L/OUT1
RS232/IN RS232/OUT
RGB IN DVI Pr/Cr
Pb/Cb
Y
S-VIDEO
IN
VIDEO
AC IN
OFF
ON
MAIN POWER
HDSDI/SDI IN HDSDI/SDI OUT
Two sources can be viewed simultaneously in either PIP mode (Picture-in-Picture) or PAP mode (Picture-and-
Picture). In case more than one source is connected, the active sources and the display mode (one source or two
sources) are selected via the OSD.
*)
Only LCS-42 and LCS-47 feature the HD-SDI interfaces!
