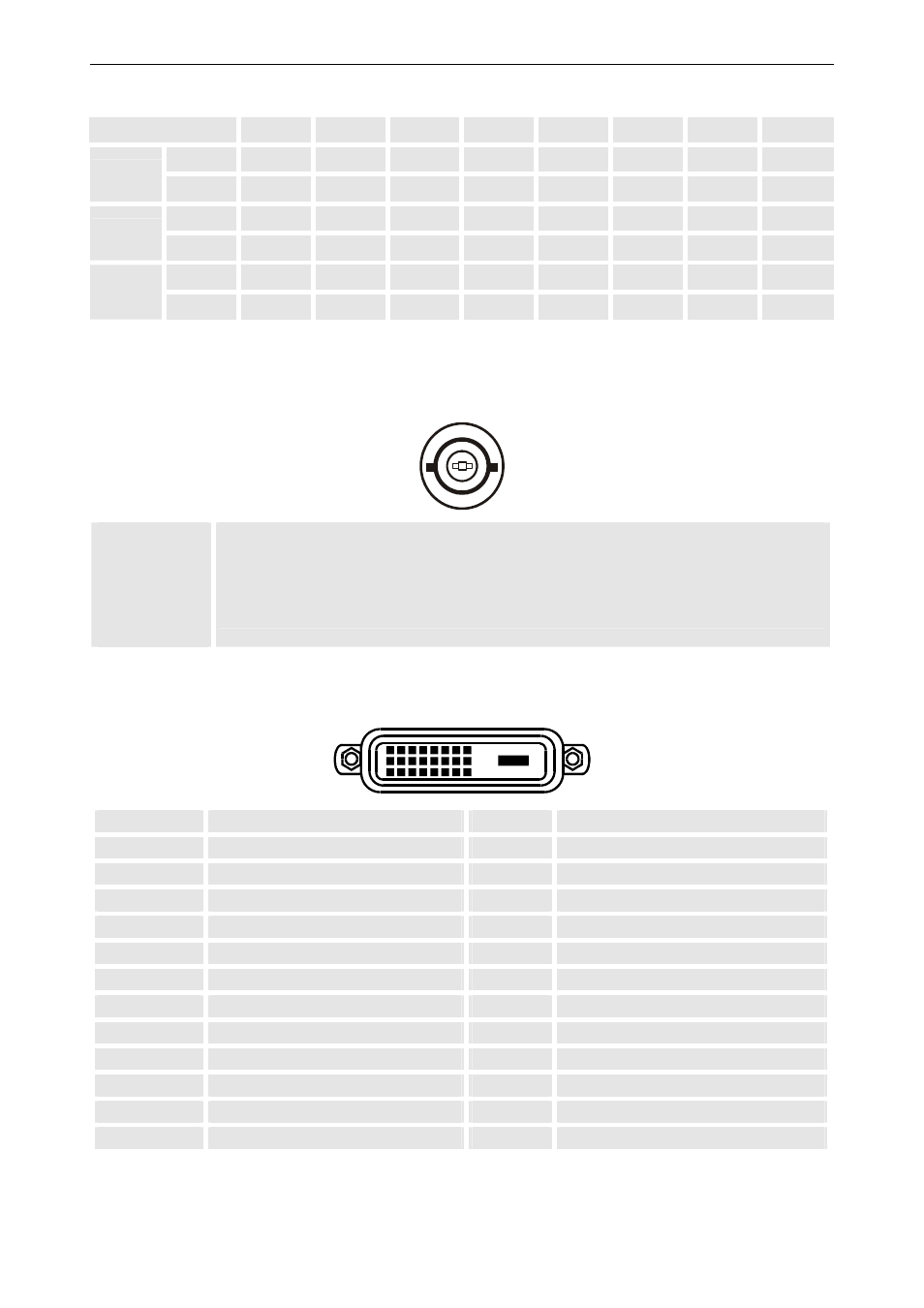

7. Technical data 42" version (LCN-42, LCS-42)
Barco - LC series - R5976934 - user's manual - Revision 08 - April 2008 ________________________________________________________________________________________ 7-5
White Yellow Cyan Green Magenta Red Blue Black
IRE 100 88.6 70.1 58.7 41.3 29.9 11.4 0
Y
mV 700 620 491 411 289 209 80 0
IRE 0 -50 16.9 -33.1 33.1 -16.9 50 0
Cb
mV 0 -350 118 -232 232 -118 350 0
IRE 0 8.1 -50 -41.9 41.9 50 -8.1 0
Cr
mV 0 57 -350 -293 293 350 -57 0
Table 7-12
SDTV YCbCr 100% color bars. Values are relative to the blanking level.
7.6.4 SDI/HDSDI IN/OUT (BNC) (LCS-42 only)
1
2
1 Signal, typ. 0.8Vpp
2 Shield
SDI/HDSDI
IN
BNC input, 75 Ω terminated
SDI/HDSDI
Out
BNC output, output impedance 75 Ω. Loop through of the active HDSDI input.
Table 7-13
7.6.5 DVI
9 16
17 24
1 8
Pin signal assignment pin signal assignment
1 TMDS Data 2- 13 NC
2 TMDS Data 2+ 14 NC
3 TMDS Data 2 Ground 15 Ground (+5, Analog /V Sync)
4 NC 16 Hot Plug Detect (HPD)
5 NC 17 TMDS Data 0-
6 DDC Clock 18 TMDS Data 0+
7 DDC Data 19 TMDS Data 0 Ground
8 NC 20 NC
9 TMDS Data 1- 21 NC
10 TMDS Data 1+ 22 TMDS Clock Ground
11 TMDS Data 1 Ground 23 TMDS Clock +
12 NC 24 TMDS Clock -
Table 7-14
