8. Technical data 47" version (LCN-47, LCS-47)
Barco - LC series - R5976934 - user's manual - Revision 08 - April 2008 ________________________________________________________________________________________ 8-5

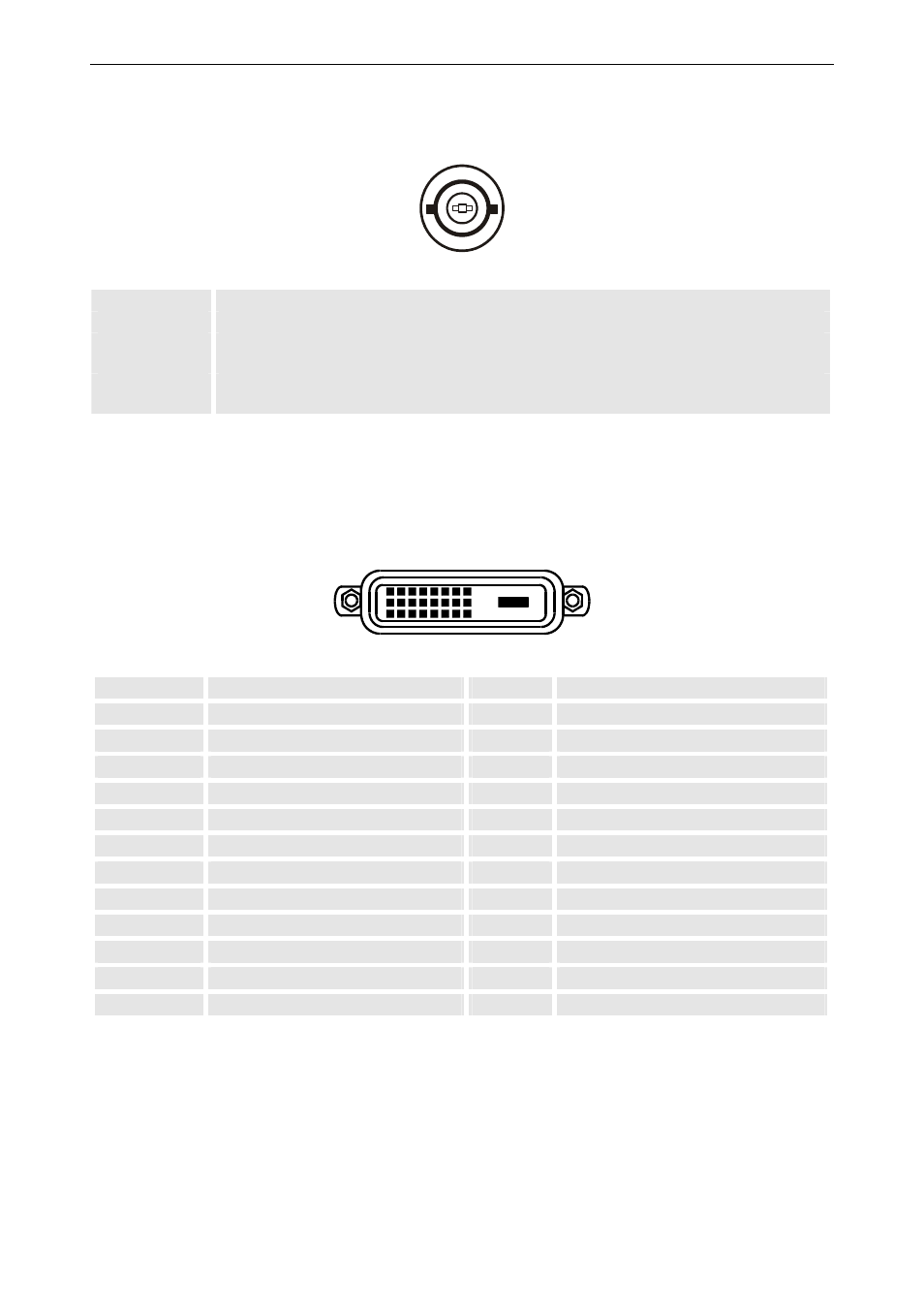

8.6.4 SDI/HDSDI IN/OUT (BNC)
1
2
1 Signal, typ. 0.8Vpp
2 Shield
SDI/HDSDI
IN
BNC input, 75 Ω terminated
SDI/HDSDI
Out
BNC output, output impedance 75 Ω. Loop through of the active HDSDI input.
Table 8-13
8.6.5 DVI
9 16
17 24
1 8
Pin signal assignment pin signal assignment
1 TMDS Data 2- 13 NC
2 TMDS Data 2+ 14 NC
3 TMDS Data 2 Ground 15 Ground (+5, Analog /V Sync)
4 NC 16 Hot Plug Detect (HPD)
5 NC 17 TMDS Data 0-
6 DDC Clock 18 TMDS Data 0+
7 DDC Data 19 TMDS Data 0 Ground
8 NC 20 NC
9 TMDS Data 1- 21 NC
10 TMDS Data 1+ 22 TMDS Clock Ground
11 TMDS Data 1 Ground 23 TMDS Clock +
12 NC 24 TMDS Clock -
Table 8-14
