Page 141
12. Accessories
Barco - LC series - R5976934 - user's manual - Revision 08 - April 2008
_____________________________________________________________________________________
12-27

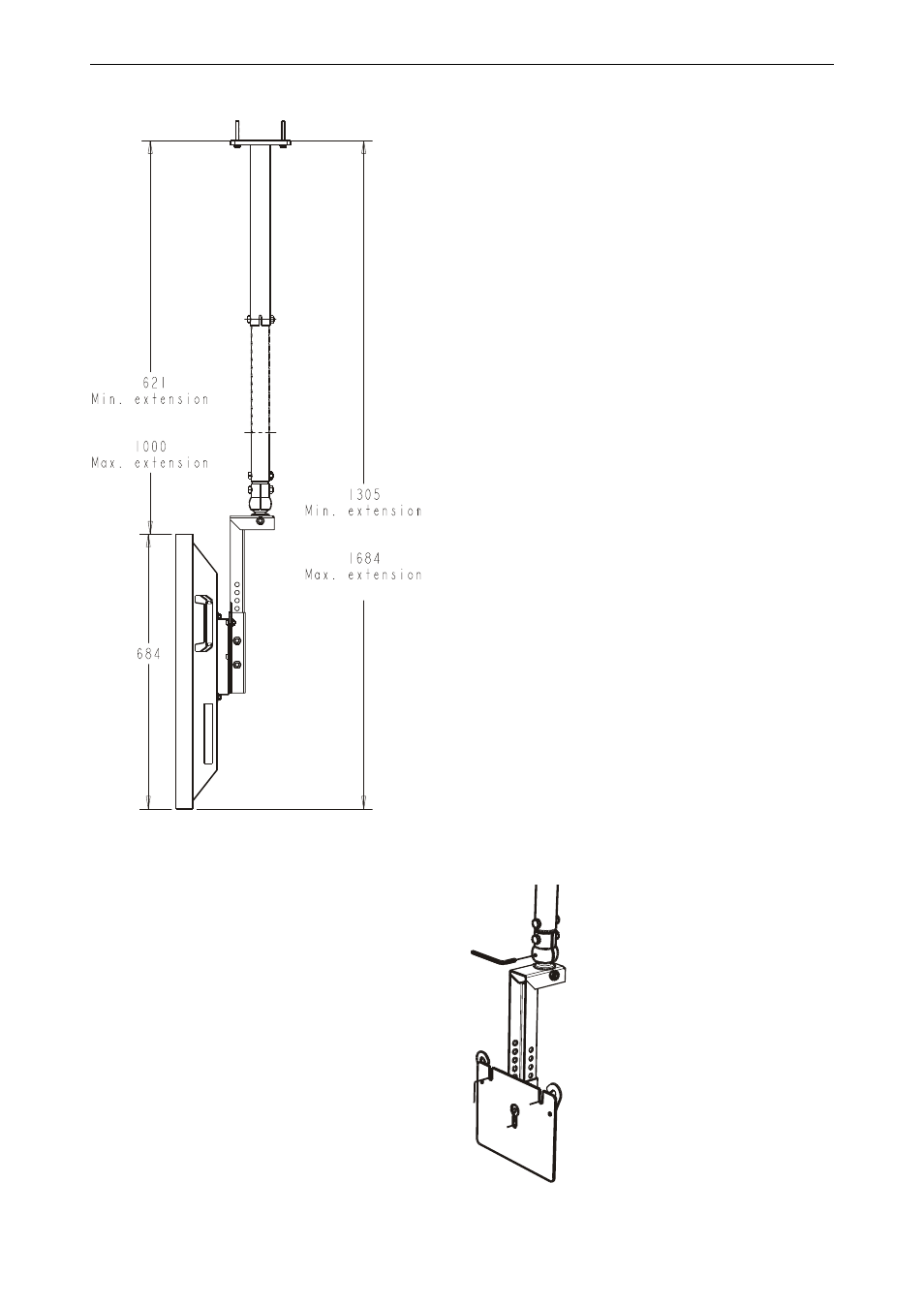

12.7.3.2 Dimension of the 47" version:
12.7.4 Tilting
Use an allen wrench size 2.5mm!
To adjust the tilting angle of the monitor,
• loosen the tilt angle fixation screw,
• adjust the position,
• tighten the screw again.
