12. Accessories
Barco - LC series - R5976934 - user's manual - Revision 08 - April 2008 _____________________________________________________________________________________ 12-23
12.7.1 Scope of delivery

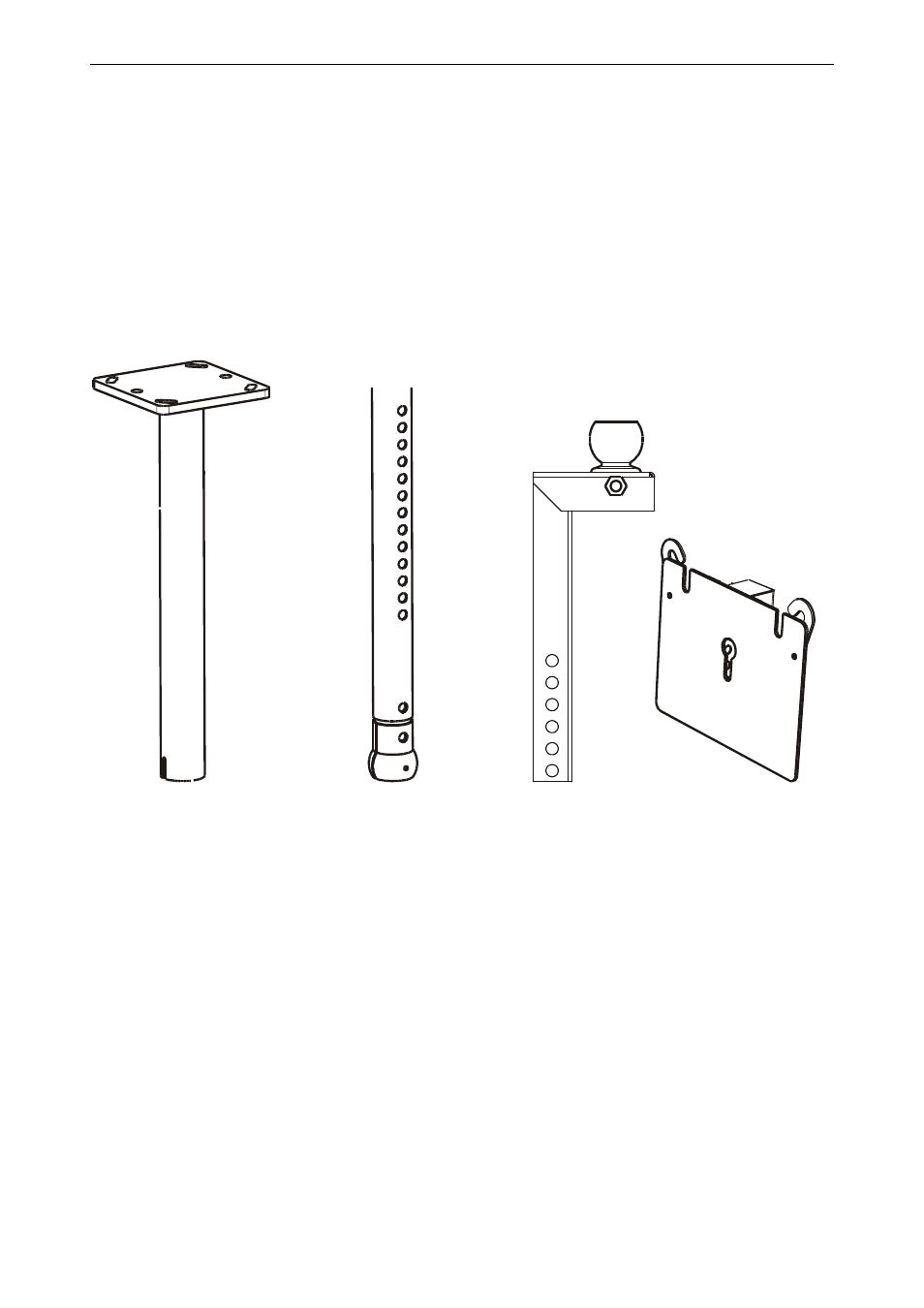

The short ceiling mount comprises 4 parts:
• The base plate with the cylinder which holds the telescope bar. This base plate will be mounted on the ceil-
ing
• The telescope bar with the ball point connection to adjustable bar.
• The base plate with the ball point connection to the adjustable bar. This base plate will be mounted on the
ceiling
• The adapter plate to attach to the screen bracket of the monitor with two hooks to lock the knurled bolts.
The screws to assemble the long ceiling bar are included. You will need a wrench 17mm.
The screws to fix the base plate to the ceiling have to be provided on site, cf. Required tools .
