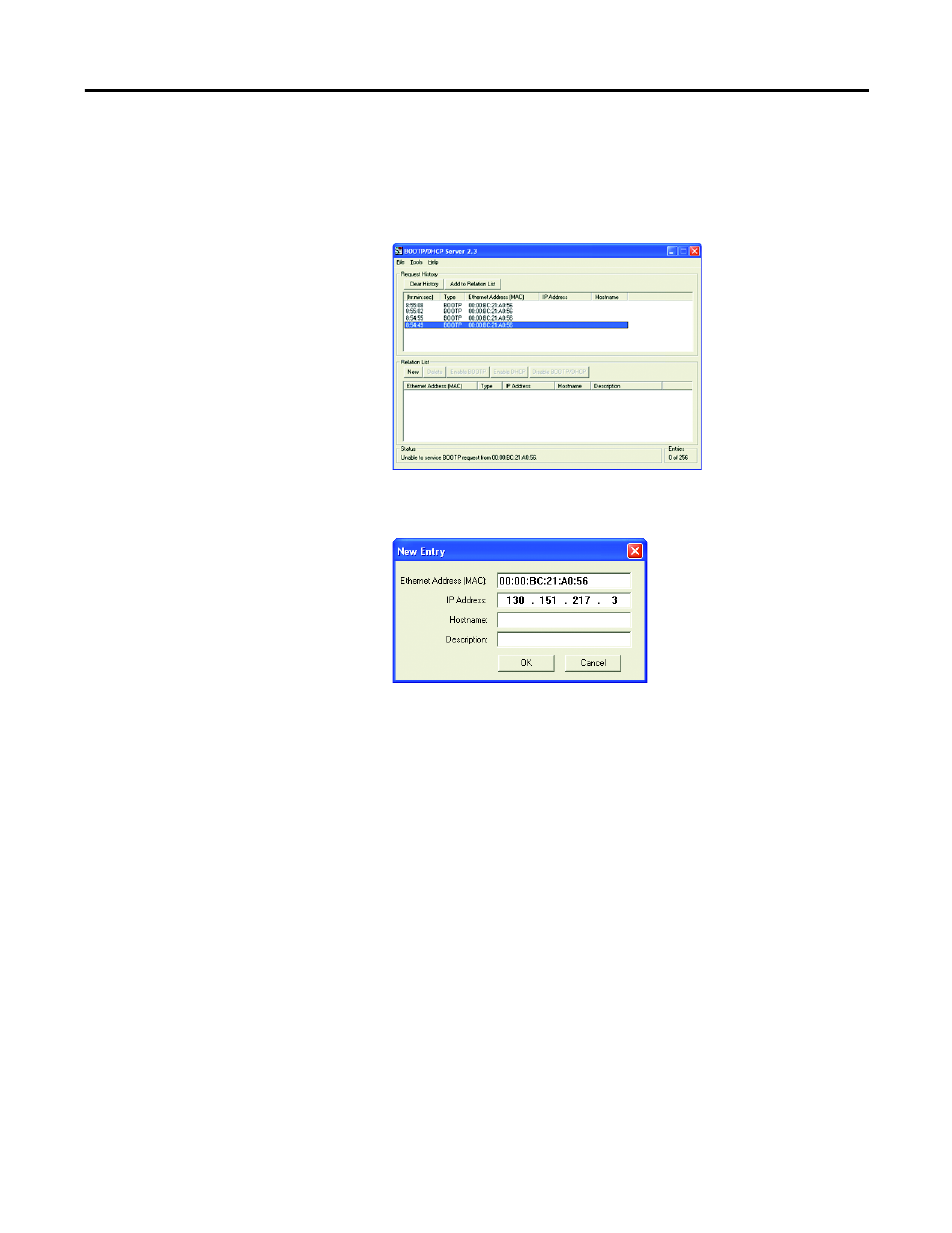

5. Double-click the MAC address of the module to be configured.
The MAC address is printed on the side of the E1 Plus EtherNet/IP
module. The format of the hardware address resembles
00-0b-db-14-55-35.
The New Entry window appears with the module’s Ethernet Address
(MAC).
6. Enter the IP address, host name, and a module description.
7. Click OK.
8. Re-cycle power to the module. To recycle power, remove and reapply the
control power terminals A1 and A2.
9. To permanently assign this configuration to the module, highlight the
module in the Relation List panel and click the Disable BOOTP/DHCP
button.
When module power is recycled, it uses the assigned configuration and
does not issue a DHCP request.
If you do not select the Disable BOOTP/DHCP button, on a power cycle,
the module clears the current IP configuration and will again begin
sending DHCP requests.
