48
Rockwell Automation Publication 20A-IN009D-EN-P - June 2013
PowerFlex 70 Adjustable Frequency AC Drive

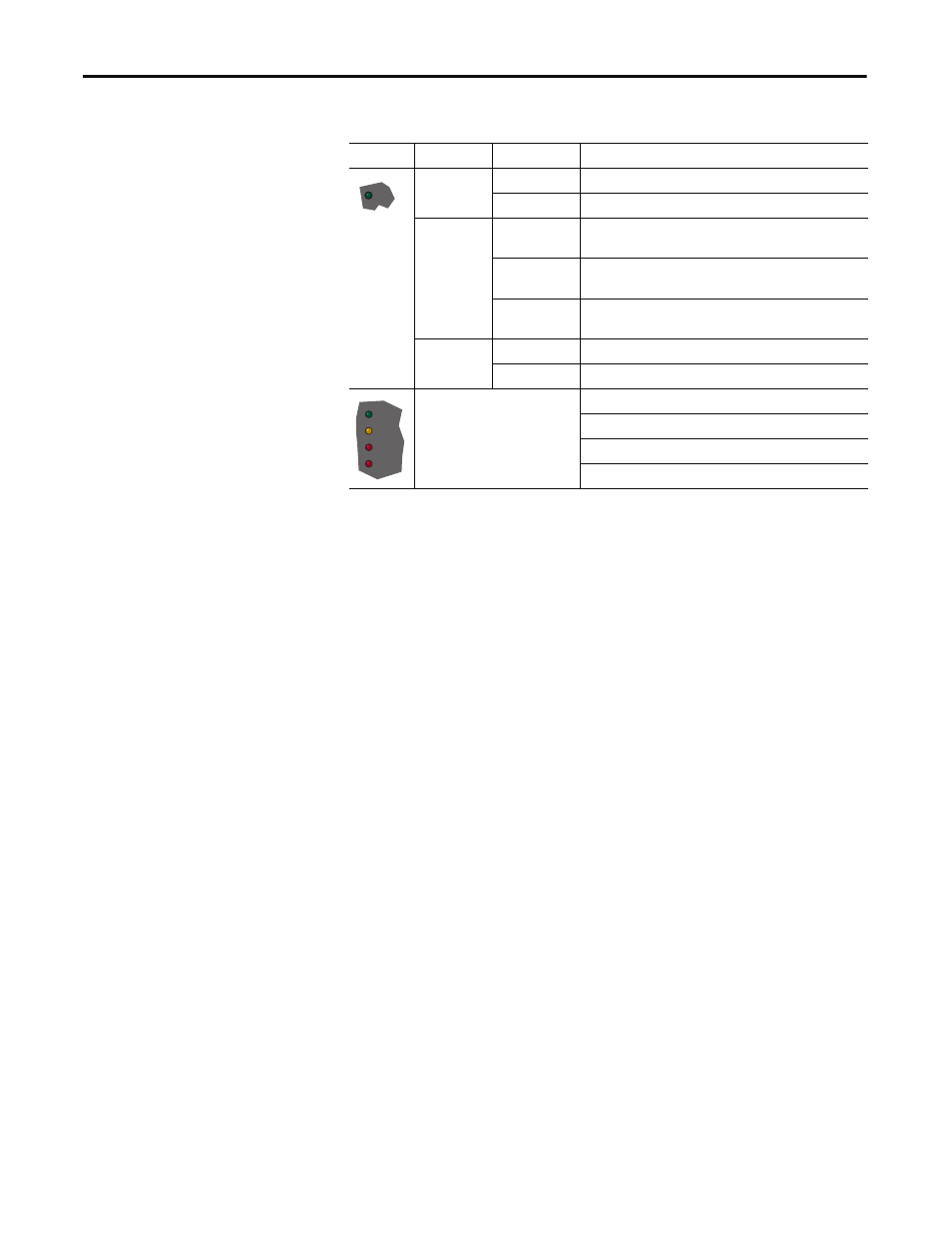

Drive Status Indicators
Common I/O Programming Changes
Your application needs can require changing parameters from their factory
default settings.
Speed Reference A
Change Speed Reference A from Analog In 2 to Analog In 1 to connect an
external potentiometer.
1. Set Parameter 090 [Speed Ref A Sel] to option 1, Analog In 1.
This sets the speed reference input to I/O terminals 14 and 15 for voltage,
and I/O terminals 16 and 17 for current.
2. Set Parameter 096 [TB Man Ref Sel] to option 9, MOP Level.
This eliminates a potential Conflict alarm condition. Analog In 2 is not a
valid Speed Reference source if selected for any of the following
parameters:
• 117 [Trim In Select]
• 126 [PI Reference Sel]
• 128 [PI Feedback Sel]
• 147 [Current Lmt Sel]
3. Set Parameter 091 [Speed Ref A Hi] to the upper value of the desired
speed reference range in Hz.
4. Set Parameter 092 [Speed Ref A Lo] to the lower value of the desired
speed reference range in Hz.
Speed Reference A is now configured for an external potentiometer.
Name
Color
State
Description
Green
Flashing
The d rive is ready but is not running, and no faults are present.
Steady
The drive is running and no faults are present.
Yellow
Flashing,
drive stopped
An inhibit condition exists, the drive cannot be started. Check
parameter 214 [Start Inhibits].
Flashing,
drive running
An intermittent type 1 alarm condition exists.
Check parameter 211 [Drive Alarm 1].
Steady,
drive running
A continuous type 1 alarm condition exists.
Check parameter 211 [Drive Alarm 1].
Red
Flashing
A fault has occurred.
Steady
A non-resettable fault has occurred.
Refer to the communication
adapter user manual.
Status of DPI port internal communications (if present).
Status of communications module (when installed).
Status of network (if connected).
Status of secondary network (if connected).
STS
PORT
MOD
NET A
NET B
