Applying Power to the Drive
❏ 4. Apply AC power and control voltages to the drive.
If any of the six digital inputs are configured to “Stop – CF” (CF = Clear
Fault) or “Enable,” verify that signals are present or reconfigure [Digital
Inx Sel]. If an I/O option is not installed (i.e. no I/O terminal block),
verify that [Digital Inx Sel] is not configured to “Stop – CF” or “Enable.”
If this is not done, the drive will not start. Refer to
for a list of potential digital input conflicts. If a fault code
appears, refer to
If the STATUS LED is not flashing green at this point, refer to LED
Status Definitions in
❏ 5. Proceed to Start-Up Routines.
Status Indicators

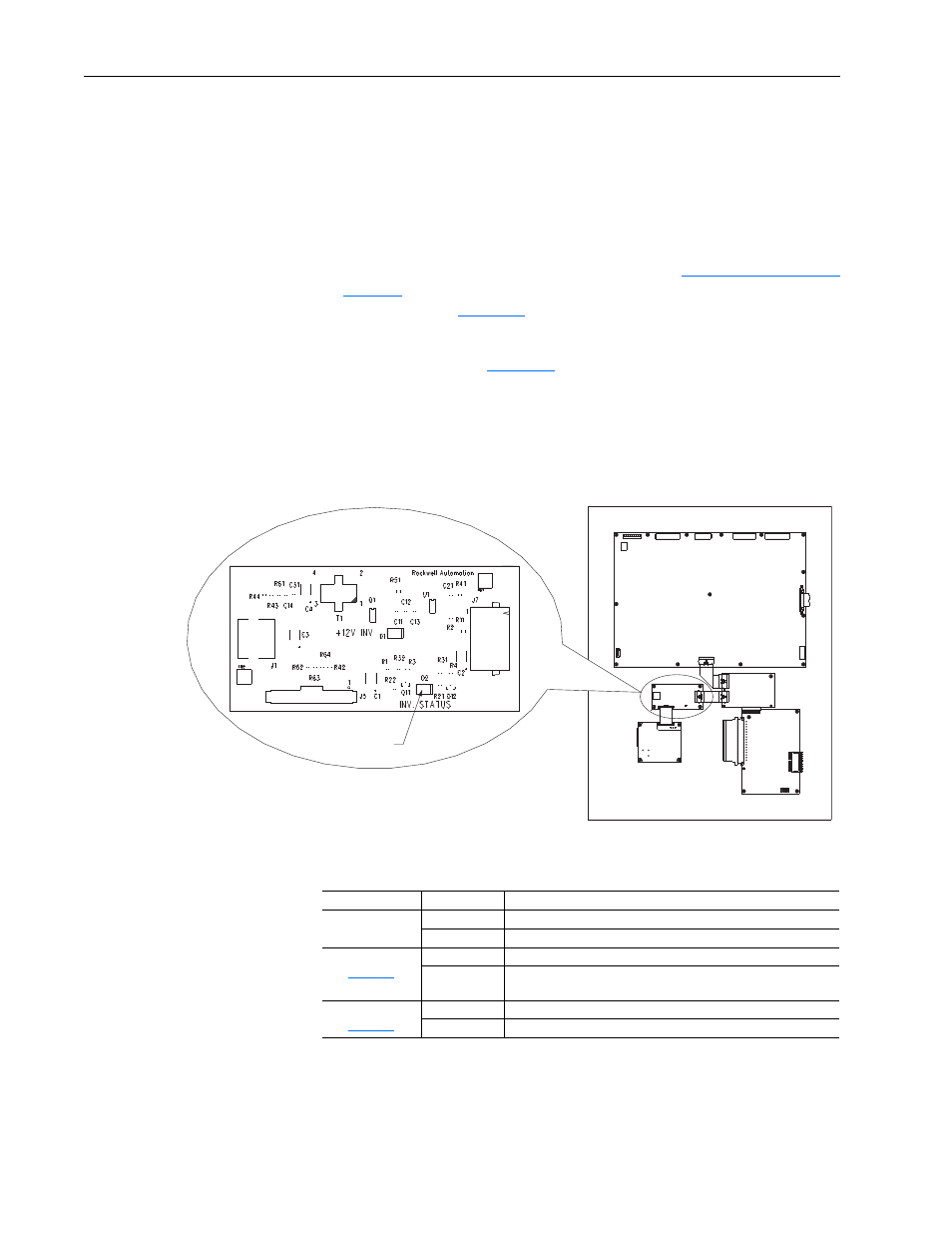

Figure 2.1 Drive Status Indicator
Table 2.A Ready LED Status Indications
Control Panel
Inverter
Status LED
Color
State
Description
Green
Flashing
Drive ready, but not running and no faults are present.
Steady
Drive running, no faults are present.
Yellow
See
Flashing
The drive is not ready. Check parameter 214 [Start Inhibits].
Steady
An alarm condition exists. Check parameters 211 [Drive Alarm 1]
and 212 [Drive Alarm 2].
Red
See
Flashing
A fault has occurred.
Steady
A non-resettable fault has occurred.
