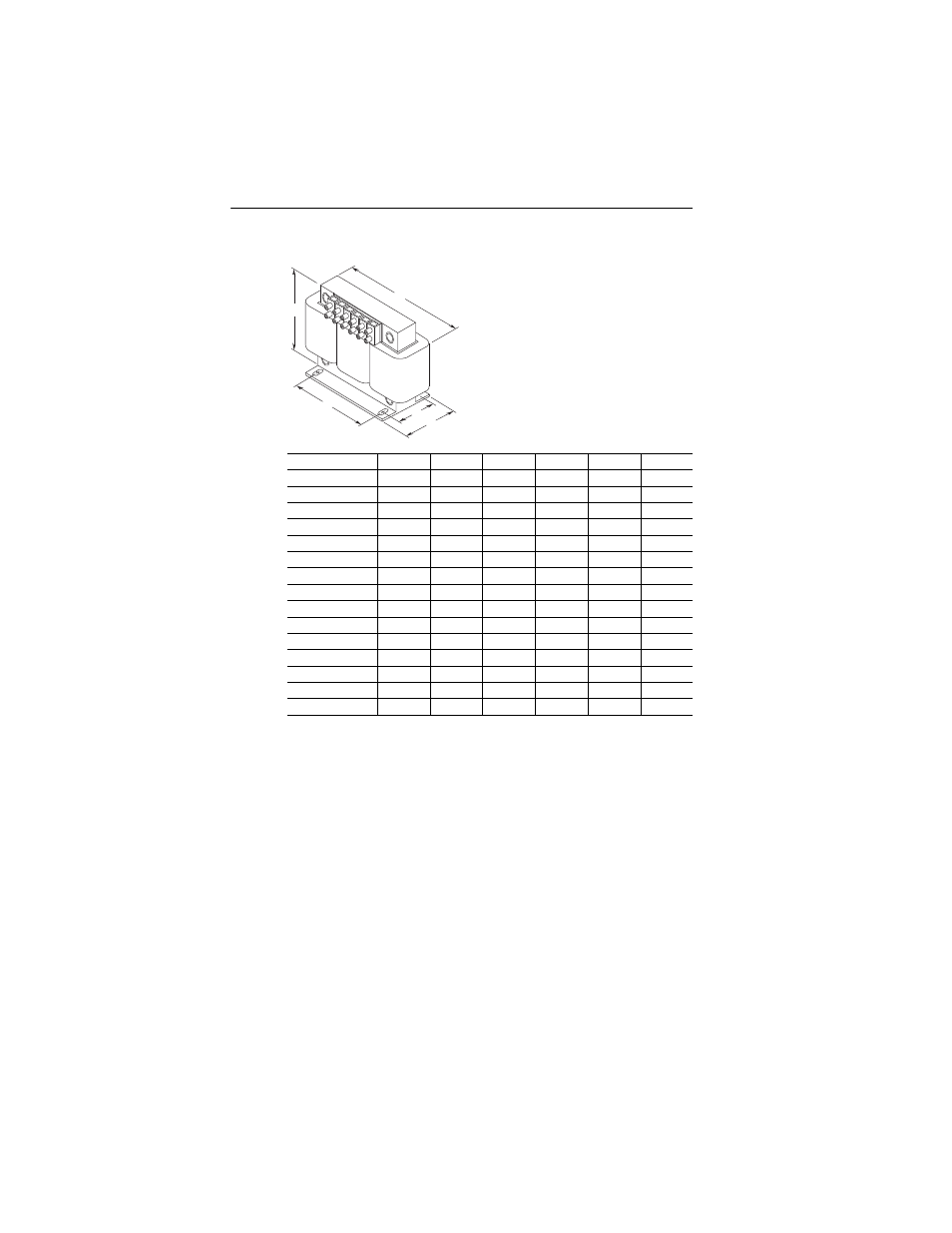

Figure B.4 Bulletin 1321-3R Series Line Reactors
– Dimensions are in millimeters and (inches). Weights are in kilograms and (pounds).
Catalog Number
A
B
C
D
E
Weight
1321-3R2-A
112 (4.40)
104 (4.10)
70 (2.75)
50 (1.98)
37 (1.44)
1.8 (4)
1321-3R2-B
112 (4.40)
104 (4.10)
70 (2.75)
50 (1.98)
37 (1.44)
1.8 (4)
1321-3R4-B
112 (4.40)
104 (4.10)
76 (3.00)
50 (1.98)
37 (1.44)
1.8 (4)
1321-3R4-C
112 (4.40)
104 (4.10)
86 (3.38)
60 (2.35)
37 (1.44)
2.3 (5)
1321-3R4-D
112 (4.40)
104 (4.10)
92 (3.62)
66 (2.60)
37 (1.44)
2.7 (6)
1321-3R8-A
152 (6.00)
127 (5.00)
76 (3.00)
53 (2.10)
51 (2.00)
3.1 (7)
1321-3R8-B
152 (6.00)
127 (5.00)
76 (3.00)
53 (2.10)
51 (2.00)
3.6 (8)
1321-3R8-C
152 (6.00)
127 (5.00)
85 (3.35)
63 (2.48)
51 (2.00)
4.9 (11)
1321-3R12-A
152 (6.00)
127 (5.00)
76 (3.00)
53 (2.10)
51 (2.00)
4.1 (9)
1321-3R12-B
152 (6.00)
127 (5.00)
76 (3.00)
53 (2.10)
51 (2.00)
4.5 (10)
1321-3R18-A
152 (6.00)
133 (5.25)
79 (3.10)
54 (2.13)
51 (2.00)
4.1 (9)
1321-3R18-B
152 (6.00)
135 (5.30)
89 (3.50)
63 (2.48)
51 (2.00)
5.5 (12)
1321-3R25-A
183 (7.20)
146 (5.76)
85 (3.35)
60 (2.35)
76 (3.00)
4.9 (11)
1321-3R25-B
183 (7.20)
147 (5.80)
89 (3.50)
60 (2.35)
76 (3.00)
6.4 (14)
1321-3R35-A
193 (7.60)
146 (5.76)
91 (3.60)
66 (2.60)
76 (3.00)
6.3 (14)
D
C
B
A
E
