Start Up 2-3
PowerFlex 4M Adjustable Frequency Drive FRN 1.xx - 2.xx User Manual
Publication 22F-UM001D-EN-E

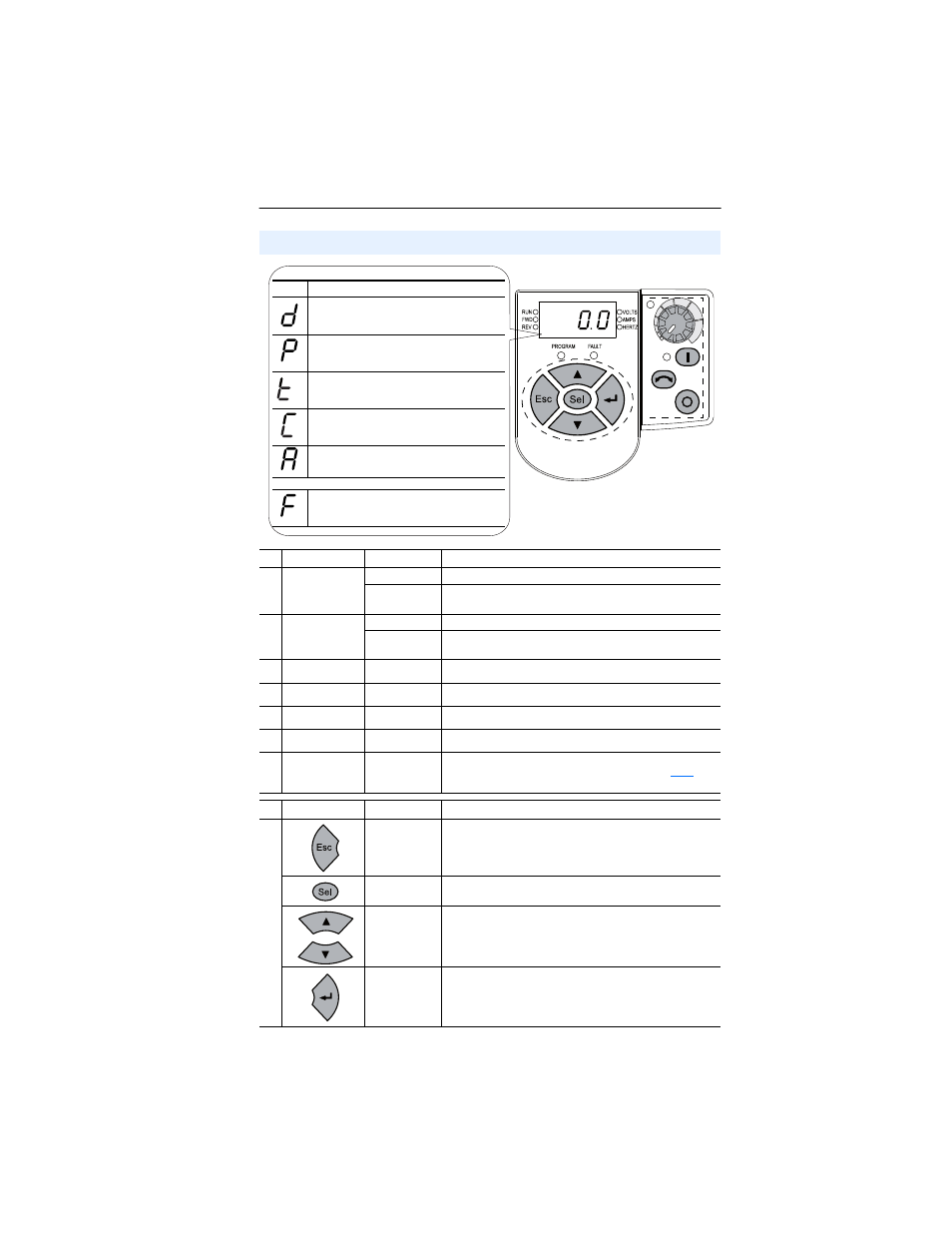

Integral Keypad
➊ ➋
➍
➏
➒
➎
Menu Description
Display Group (View Only)
Consists of commonly viewed drive operating
conditions.
Basic Program Group
Consists of most commonly used programmable
functions.
Terminal Block Group
Consists of programmable functions for control
terminals.
Communications Group
Consists of programmable functions for
communications.
Advanced Program Group
Consists of remaining programmable functions.
Fault Designator
Consists of list of codes for specific fault
conditions. Displayed only when fault is present.
➌
➑
➐
No. LED LED State Description
➊ Run/Direction
Status Steady Red Indicates drive is running and commanded motor direction.
Flashing Red Drive has been commanded to change direction. Indicates
actual motor direction while decelerating to zero.
➋ Alphanumeric
Display Steady Red Indicates parameter number, parameter value, or fault code.
Flashing Red Single digit flashing indicates that digit can be edited.
All digits flashing indicates a fault condition.
➌ Displayed Units Steady Red Indicates the units of the parameter value being displayed.
➍ Program Status Steady Red Indicates parameter value can be changed.
➎ Fault Status Flashing Red Indicates drive is faulted.
➏ Pot Status Steady Green Indicates potentiometer on Integral Keypad is active.
➐ Start Key Status Steady Green Indicates Start key on Integral Keypad is active.
The Reverse key is also active unless disabled by A434
[Reverse Disable].
No. Key Name Description
➑ Escape Back one step in programming menu.
Cancel a change to a parameter value and exit Program Mode.
Select Advance one step in programming menu.
Select a digit when viewing parameter value.
Up Arrow
Down Arrow
Scroll through groups and parameters.
Increase/decrease the value of a flashing digit.
Enter Advance one step in programming menu.
Save a change to a parameter value.
