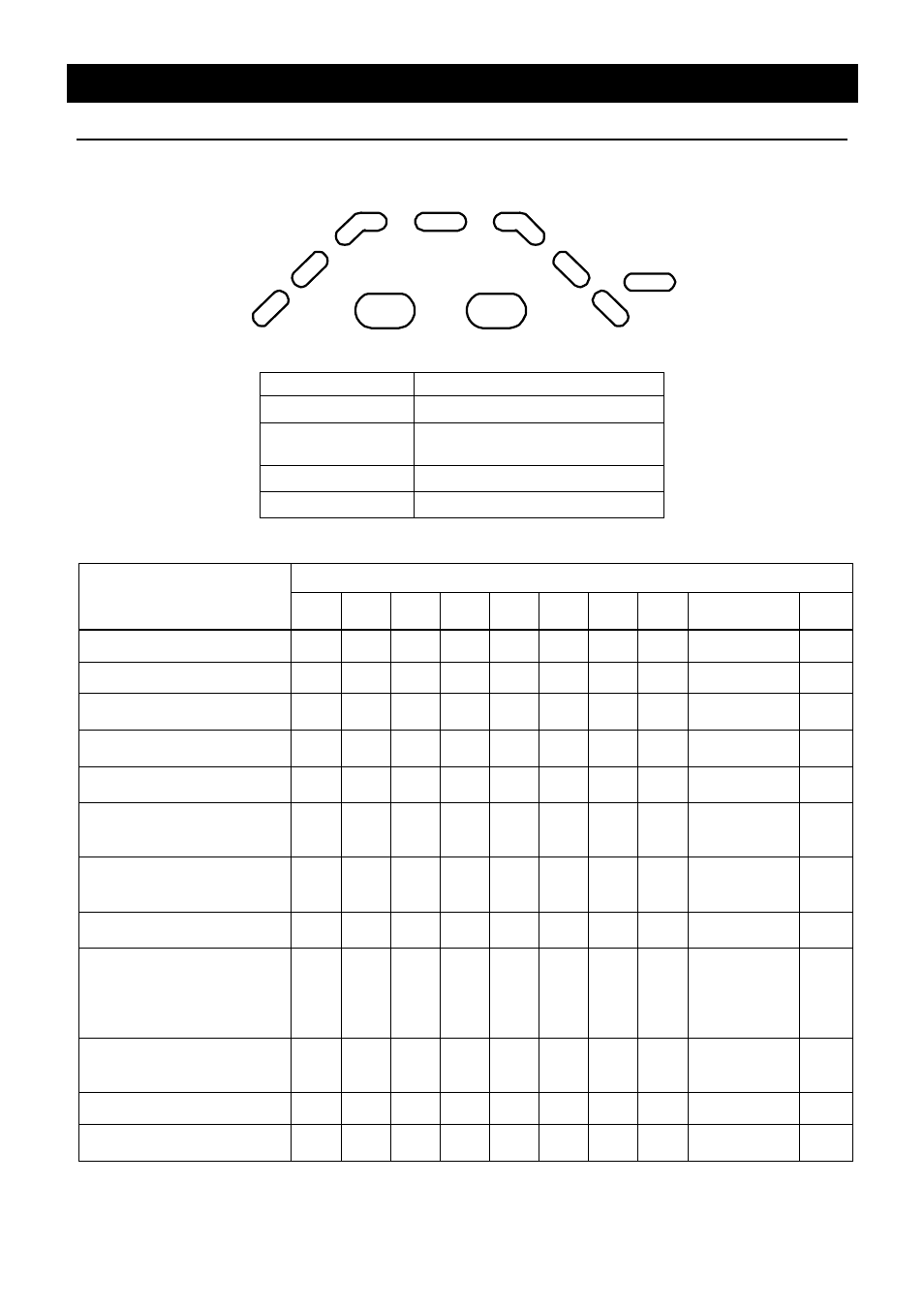

Description and Function of Each Part
Control Panel (Operation monitoring lamp)
PRES.
STERILIZE/MELT
HEAT
EXHAUST
WARM
END
No. Name
①・② Heat lamp (HEAT)
③・④・⑤
Sterilization/melting lamp
(STERILIZE/MELT)
⑥・⑦ Exhaust lamp (EXHAUST)
⑧ Heat-retention lamp (WARM)
The current operating state of equipment can be checked by observing the status of respective lamp.
Lamp state
Operating state
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
During
pressurization
End
Stop OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF
During preheating Blink OFF OFF OFF OFF OFF OFF OFF OFF OFF
Before pressurization/during
temperature rising
Blink OFF OFF OFF OFF OFF OFF OFF OFF OFF
During pressurization/during
temperature rising
ON Blink OFF OFF OFF OFF OFF OFF ON OFF
When sterilization/melting
starts
ON ON Blink OFF OFF OFF OFF OFF ON OFF
After one-thirds of
sterilization/melting process
is completed
ON ON ON Blink OFF OFF OFF OFF ON OFF
After two-thirds of
sterilization/melting process
is completed
ON ON ON ON Blink OFF OFF OFF ON OFF
When exhaust process
starts
ON ON ON ON ON Blink OFF OFF OFF OFF
When measured
temperature lowers to the
saturated vapor temperature
without heat-retention
process
ON ON ON ON ON ON Blink OFF OFF OFF
When sterilization/melting is
completed without
heat-retention process
ON OFF OFF OFF OFF OFF OFF OFF OFF Blink
During heat-retention ON ON ON ON ON ON OFF Blink OFF OFF
When heat-retention
process is completed
ON OFF OFF OFF OFF OFF ON ON OFF Blink
※ When operation is stopped during pressurization/sterilization by the START/STOP key or a power failure, the lamps ③,
④ and ⑤ light off.
